posted 06-18-2016 05:27 AM     Click Here to See the Profile for One Big Monkey     Edit/Delete Message   Reply w/Quote
Kind of related..

Apollo 10's 16mm Magazine Y contained frames 2051-3603 at maximum zoom with "Locations questionable" according to the NASA photography report.

I found the locations.

LM-12
Member

Posts: 3351
From: Ontario, Canada
Registered: Oct 2010

posted 06-18-2016 08:47 AM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
Here is 16mm Magazine 1098-Y from the Apollo 10 Flight Journal.

The footage from about 1:39 to 2:43 seems to show the frames mentioned above. Notice that the white object seen at :50 is seen again at 2:23 and 2:43 in the film.

David Carey
Member

Posts: 808
From:
Registered: Mar 2009

posted 06-18-2016 11:34 AM     Click Here to See the Profile for David Carey   Click Here to Email David Carey     Edit/Delete Message   Reply w/Quote
From NASA image S70-35145, I'd never noticed the hand-drawn cartoon displayed on the monitor over Lunney's right shoulder, and to Kranz's left.

A smiling Lunar Module carries a wounded CSM safely home on a stretcher...

LM-12
Member

Posts: 3351
From: Ontario, Canada
Registered: Oct 2010

posted 06-18-2016 12:19 PM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
This Apollo 10 Flight Journal map shows the 1493 to 2056 and 3604 to 5614 frames from 16mm Magazine Y that were plotted.

YankeeClipper
Member

Posts: 622
From: Dublin, Ireland
Registered: Mar 2011

posted 06-18-2016 01:56 PM     Click Here to See the Profile for YankeeClipper   Click Here to Email YankeeClipper     Edit/Delete Message   Reply w/Quote
quote:
Originally posted by David Carey:
A smiling Lunar Module carries a wounded CSM safely home on a stretcher...
Drawn by someone's son or daughter?

LM-12
Member

Posts: 3351
From: Ontario, Canada
Registered: Oct 2010

posted 06-12-2018 08:40 AM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
Apollo 9 commander Jim McDivitt can be seen in the lunar module pilot window behind what looks like the window shade in EVA photo AS09-20-3067 that was taken by Rusty Schweickart.

oly
Member

Posts: 1020
From: Perth, Western Australia
Registered: Apr 2015

posted 06-12-2018 09:29 AM     Click Here to See the Profile for oly   Click Here to Email oly     Edit/Delete Message   Reply w/Quote
While not a photo, the 16mm DAC film shows that Buzz Aldrin can be seen in reflection on the Lunar Module window as Neil Armstrong takes the Giant Leap.

Buzz looks to be too busy to stop and watch what is happening outside.

oly
Member

Posts: 1020
From: Perth, Western Australia
Registered: Apr 2015

posted 06-12-2018 10:07 AM     Click Here to See the Profile for oly   Click Here to Email oly     Edit/Delete Message   Reply w/Quote
quote:
Originally posted by LM-12:
You can see that 16mm camera and attached magazine...
For the life of me I cannot see the film magazine attached to the camera in this shot.

Fra Mauro
Member

Posts: 1642
From: Bethpage, N.Y.
Registered: Jul 2002

posted 06-12-2018 10:18 AM     Click Here to See the Profile for Fra Mauro   Click Here to Email Fra Mauro     Edit/Delete Message   Reply w/Quote
Did they know they left it on the surface before liftoff? That would've driven me crazy. Too bad they couldn't retrieve it... I know the reasons why, it's just frustrating.

LM-12
Member

Posts: 3351
From: Ontario, Canada
Registered: Oct 2010

posted 06-12-2018 10:39 AM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
quote:
Originally posted by oly:
I cannot see the film magazine...
The DAC magazine on the camera on the MET has red and blue stickers on top, like the Apollo 12 DAC magazine seen in this photo.

oly
Member

Posts: 1020
From: Perth, Western Australia
Registered: Apr 2015

posted 06-12-2018 11:09 AM     Click Here to See the Profile for oly   Click Here to Email oly     Edit/Delete Message   Reply w/Quote
Got it, Thank you. It breaks my heart seeing that Hasselblad left sitting on the MET.

LM-12
Member

Posts: 3351
From: Ontario, Canada
Registered: Oct 2010

posted 06-12-2018 11:15 AM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
McDivitt and Schweickart had to switch places in the LM so Schweickart could exit the forward hatch.

LM-12
Member

Posts: 3351
From: Ontario, Canada
Registered: Oct 2010

posted 06-12-2018 09:16 PM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
The photo of McDivitt in the LM window might have been taken around 73:18 GET when he said to Schweickart:
How about getting over by the other window? That one's in the shade.

LM-12
Member

Posts: 3351
From: Ontario, Canada
Registered: Oct 2010

posted 06-17-2018 09:27 PM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
Photo AS14-64-9095 might be another image of the DAC magazine that was left behind on the moon. It was taken at Station B1.

The ALSJ identifies the DAC magazine left behind as Magazine HH, saying that it was loaded onto the 16mm camera on the MET at the LM before they headed out on EVA-2, and not turned on until they were near Station F.

But the 16mm may have been turned on even earlier. From the mission transcripts, between Station C1 and Station C2:

CC: Roger, Al. And do you have anything left on the 16-millimeter or has it been running on the MET.

SHEPARD: No, it hasn't. We might turn it on now - follow the progress.

CC: Roger, Al.

SHEPARD: Is it running now?

MITCHELL: Yes.

SHEPARD: Have you checked the setting on it?

MITCHELL: Yes, I did.

The EVA-2 transcript does not seem to indicate that the 16mm DAC was ever turned off after that.

LM-12
Member

Posts: 3351
From: Ontario, Canada
Registered: Oct 2010

posted 06-20-2018 05:36 AM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
It looks like McDivitt can also be seen in the window in photo AS-09-21-3206 taken after the LM undocked.

LM-12
Member

Posts: 3351
From: Ontario, Canada
Registered: Oct 2010

posted 11-10-2018 08:16 AM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
The protective cover on the SLA was coming apart when the Apollo 6 stack reached Pad 39A after rollout on February 6, 1968.

oly
Member

Posts: 1020
From: Perth, Western Australia
Registered: Apr 2015

posted 06-10-2019 09:53 PM     Click Here to See the Profile for oly   Click Here to Email oly     Edit/Delete Message   Reply w/Quote

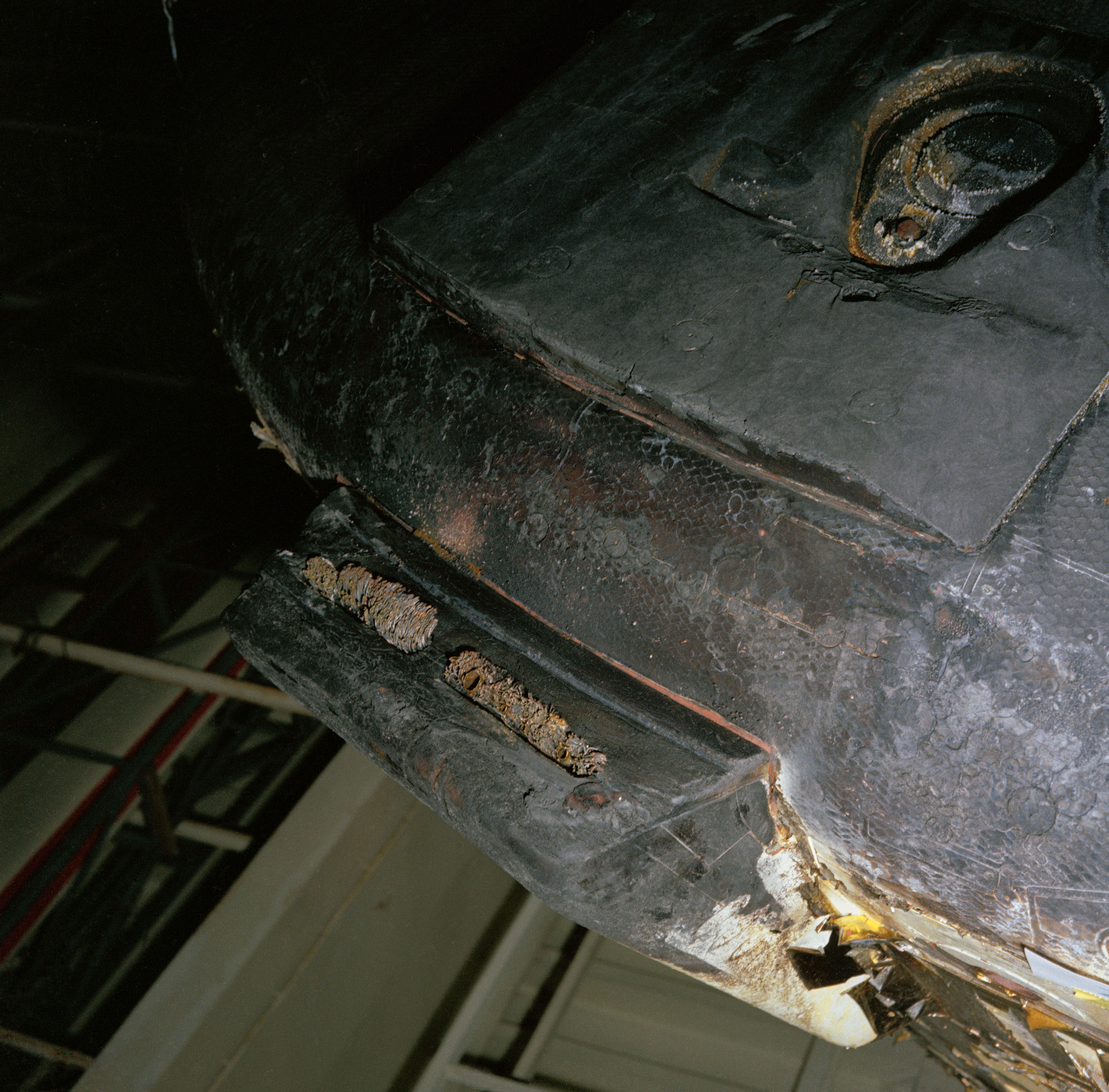

This post flight inspection photo shows the severed umbilical lines and cables of the command module after experiencing the heat of re-entry.

Blackarrow
Member

Posts: 3174
From: Belfast, United Kingdom
Registered: Feb 2002

posted 11-06-2019 08:32 PM     Click Here to See the Profile for Blackarrow     Edit/Delete Message   Reply w/Quote
quote:
Originally posted by oly:
It breaks my heart seeing that Hasselblad left sitting on the MET.
Do we know how many lunar surface Hasselblads were brought back to Earth? I know of at least one (from Apollo 17).

Robert Pearlman
Editor

Posts: 43749
From: Houston, TX
Registered: Nov 1999

posted 11-06-2019 08:39 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
As best known, four: Alan Shepard's from Apollo 14, Jim Irwin's from Apollo 15 and both Gene Cernan's and Jack Schmitt's from Apollo 17.

Blackarrow
Member

Posts: 3174
From: Belfast, United Kingdom
Registered: Feb 2002

posted 11-07-2019 11:06 AM     Click Here to See the Profile for Blackarrow     Edit/Delete Message   Reply w/Quote
Thanks, Robert.

dsenechal
Member

Posts: 549
From:
Registered: Dec 2002

posted 11-07-2019 11:59 AM     Click Here to See the Profile for dsenechal   Click Here to Email dsenechal     Edit/Delete Message   Reply w/Quote
quote:
Originally posted by LM-12:
Apollo 9 commander Jim McDivitt can be seen...
Rather than a picture of McDivitt, this appears to be a reflection of Schweickart with his gold visor up. Sort of a reflective selfie. Note that the image of the spacesuit extends beyond the inside window frame. Also, the NASA suit patch is reversed, as it would be in a reflection.

LM-12
Member

Posts: 3351
From: Ontario, Canada
Registered: Oct 2010

posted 11-07-2019 01:22 PM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
To me, it still looks like McDivitt inside the LM, with his right shoulder closest to the window and his head turned to the right.

Would Schweickart's neck ring be exposed like that on an EVA? It was covered.

perineau
Member

Posts: 258
From: FRANCE
Registered: Jul 2007

posted 11-08-2019 09:34 AM     Click Here to See the Profile for perineau   Click Here to Email perineau     Edit/Delete Message   Reply w/Quote
Just an unrelated thought: I wonder after his two missions Gemini 4 and Apollo 9, if it bothered McDivitt that he never got to do an EVA himself!

LM-12
Member

Posts: 3351
From: Ontario, Canada
Registered: Oct 2010

posted 11-30-2019 01:10 AM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
Photo S66-46237 shows the Gemini 10 spacecraft docked with Agena 5005 on orbit 12, with Agena 5003 in the distance.

LM-12
Member

Posts: 3351
From: Ontario, Canada
Registered: Oct 2010

posted 12-09-2019 01:55 AM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
quote:
Originally posted by LM-12:
The Station 6 pan taken by Jack Schmitt includes three photos that show a bright object in the sky just above the horizon ... Since the CM was approaching LOS shortly after the pan was taken, those white dots in the sky might be the CM flying over Cernan and Schmitt at Station 6.

Here are some approximate GET times for the three photos:

frame 141-21592 (white dot at center and low above horizon) ... 164:59 GET
frame 141-21596 (white dot at right and higher above horizon) ... 164:59 GET
frame 141-21600 (white dot at far right and low above horizon) ... 165:00 GET

The CSM in orbit was approaching LOS at 165:03 GET.

One Big Monkey
Member

Posts: 172
From: West Yorkshire, UK
Registered: Jul 2012

posted 12-09-2019 12:34 PM     Click Here to See the Profile for One Big Monkey     Edit/Delete Message   Reply w/Quote
It's tempting, but I'm not sure about the timings.

For example, while they are at station 7 the CMP is on rev 40, and we have this observation during that orbit:

163:38 CC "Are you getting the landing site into view now?"

CMP "I got it in window 2"

That orbit's AOS was at 163:13, and the last message before LOS was 164:23, so Evans was flying over the landing site much nearer AOS than LOS.

Taurus-Littrow is some distance from either event, so I wouldn't put any CSM images as being near the LOS time.

(The times I quote above are from the transcript, and don't reflect the adjustment to the timings made as a result of the delay in lift off.)

LM-12
Member

Posts: 3351
From: Ontario, Canada
Registered: Oct 2010

posted 12-09-2019 01:42 PM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
I see your point with the example you mentioned. Thanks for that. The CSM would have been much further west in its orbit when those Station 6 photos were taken.

As mentioned earlier, the Apollo 12 CSM was spotted by Conrad and Bean from the lunar surface. But I haven't seen anything to indicate they photographed it.

It is still possible that a CSM overflight was caught by chance in a photograph taken from the lunar surface. I'll keep searching.

LM-12
Member

Posts: 3351
From: Ontario, Canada
Registered: Oct 2010

posted 12-10-2019 10:49 AM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
How about this one: Dave Scott took an ALSEP pan on EVA-2 when the CSM flew over the landing site.

From the TEC transcripts:

148:02:25 Scott: Okay, my pan -- out of the way real quick.
From the CSM transcripts:
148:02:43 Henize: I have you coming up on Hadley, right - Well, you just passed Hadley, I guess.

148:02:50 Worden: Yes, that's right. I'm just going over Archimedes right now.

And what looks like a moving white dot seen in these pan photos:
  • AS15-92-12420 ... white dot above Hill 305
  • AS15-92-12421 ... white dot above Hill 305 farther right
  • AS15-92-12422 ... white dot farther right
  • AS15-92-12423 ... white dot farther right
  • AS15-92-12424 ... Irwin digging a trench

LM-12
Member

Posts: 3351
From: Ontario, Canada
Registered: Oct 2010

posted 12-11-2019 07:06 AM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
quote:
Originally posted by LM-12:
As mentioned earlier, the Apollo 12 CSM was spotted by Conrad and Bean from the lunar surface.
That was between the lunar landing and EVA-1.

Conrad saw the CSM overhead again between the end of EVA-2 and lunar liftoff:

139:49:32 CC: Intrepid, Houston. Go.

139:49:37 CDR: Has Yankee gone overhead yet?

139:49:43 CC: Not yet, Pete.

139:49:48 CDR: Give me an overhead time, so I can watch him go by.

...

139:51:01 CC: Intrepid, Houston. Clipper should be overhead at 140:04:10.

...

140:06:16 CDR: Houston, Intrepid. We had a visual on him although I couldn't talk to him on VHF.

140:06:25 CC: Intrepid, Houston. Roger.

LM-12
Member

Posts: 3351
From: Ontario, Canada
Registered: Oct 2010

posted 12-15-2019 10:10 AM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
About two hours before lunar liftoff, Cernan and Schmitt talked about possibly seeing the CSM flying overhead:
Cernan: You might be able to. It's awful glary though. He'll be well sunlit up there.

Schmitt: I doubt it.

One Big Monkey
Member

Posts: 172
From: West Yorkshire, UK
Registered: Jul 2012

posted 01-02-2020 01:06 PM     Click Here to See the Profile for One Big Monkey     Edit/Delete Message   Reply w/Quote
Here's a wonderful detail from AS11-36-5308, taken after TLI but before extraction of the LM. It shows cloud spirals caused by air flow around the island of Guadalupe, also known as von Karman vortex streets.

LM-12
Member

Posts: 3351
From: Ontario, Canada
Registered: Oct 2010

posted 05-09-2020 12:24 AM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
Most have seen photo 66-HC-1476 that shows the Gemini 11 launch with AS-500F on Pad 39A in the background. If you look closely, you can also see AS-500F in the distant background in another photo of the Gemini 11 launch.


This topic is 6 pages long:   1  2  3  4  5  6

All times are CT (US)

next newest topic | next oldest topic

Administrative Options: Close Topic | Archive/Move | Delete Topic
Post New Topic  Post A Reply
Hop to:

Contact Us | The Source for Space History & Artifacts

Copyright 2020 collectSPACE.com All rights reserved.


Ultimate Bulletin Board 5.47a





advertisement
