posted 10-21-2020 04:19 PM

OSIRIS-REx TAGs Surface of Asteroid Bennu

Captured on Oct. 20, 2020 during the OSIRIS-REx mission's Touch-And-Go (TAG) sample collection event, this series of images shows the SamCam imager's field of view as the NASA spacecraft approaches and touches down on asteroid Bennu's surface, over 200 million miles (321 million km) away from Earth.

The sampling event brought the spacecraft all the way down to sample site Nightingale, touching down within three feet (one meter) of the targeted location. The team on Earth received confirmation at 6:08 p.m. EDT that successful touchdown occurred.

Preliminary data show the one-foot-wide (0.3-meter-wide) sampling head touched Bennu's surface for approximately 6 seconds, after which the spacecraft performed a back-away burn.

The spacecraft's sampling arm – called the Touch-And-Go Sample Acquisition Mechanism (TAGSAM) – is visible in the lower part of the frame. The round head at the end of TAGSAM is the only part of OSIRIS-REx that contacted the surface during the sample collection event. In the middle of the image sequence, the sampling head positions itself to contact the asteroid's surface head-on. Shortly after, the sampling head impacts site Nightingale and penetrates Bennu's regolith.

Above: Captured on Oct. 20 during the OSIRIS-REx mission's Touch-And-Go (TAG) sample collection event, this series of 2 images shows the SamCam imager's field of view at the moment before and after the NASA spacecraft touched down on asteroid Bennu's surface. (NASA/Goddard/University of Arizona)

Upon initial contact, the TAGSAM head appears to crush some of the porous rocks underneath it. One second later, the spacecraft fires a nitrogen gas bottle, which mobilizes a substantial amount of the sample site's material. Preliminary data show the spacecraft spent approximately 5 of the 6 seconds of contact collecting surface material, and the majority of sample collection occurred within the first 3 seconds.

The TAGSAM is designed to catch the agitated surface material, and the mission team will assess the amount of material collected through various spacecraft activities. After touchdown, the spacecraft fired its thrusters to back away from Bennu. As expected, this maneuver also disturbed the Nightingale site, and loose debris is visible near the end of the image sequence. Preliminary telemetry shows the spacecraft remains in good health. The spacecraft was traveling at 0.2 mph (10 cm/sec) when it contacted sample site Nightingale and then backed away at 0.9 mph (40 cm/sec).

These images were captured over approximately a five-minute period. The imaging sequence begins at about 82 feet (25 meters) above the surface, and runs through the back-away maneuver, with the last image in the sequence taken at approximately 43 feet (13 meters) in altitude – about 35 seconds after backing away. The sequence was created using 82 SamCam images, with 1.25 seconds between frames. For context, the images are oriented with Bennu's west at the top.

posted 10-23-2020 04:11 PM

NASA's OSIRIS-REx probe overflows with asteroid Bennu sample

NASA's first attempt at collecting a sample from the surface of an asteroid appears to have been so successful that its probe is overflowing with flakes of soil and stone.

Three days after the OSIRIS-REx robotic spacecraft descended to the small asteroid Bennu, extended its robotic arm and "tagged" the rocky body to gather up a sample, the mission's lead scientist said the Touch-And-Go (TAG) maneuver may have been "almost too successful."

"This is the mission that keeps on surprising us and certainly that was the case [here]," Dante Lauretta, OSIRIS-REx principal investigator at the University of Arizona in Tucson, said in a call with reporters on Friday (Oct. 23). "We do have abundant visual evidence that there is a substantial mass of Bennu regolith."

posted 10-26-2020 03:38 PM

NASA's OSIRIS-REx Spacecraft Goes for Early Stow of Asteroid Sample

NASA's OSIRIS-REx mission is ready to perform an early stow on Tuesday, Oct. 27, of the large sample it collected last week from the surface of the asteroid Bennu to protect and return as much of the sample as possible.

On Oct. 22, the OSIRIS-REx mission team received images that showed the spacecraft's collector head overflowing with material collected from Bennu's surface – well over the two-ounce (60-gram) mission requirement – and that some of these particles appeared to be slowly escaping from the collection head, called the Touch-And-Go Sample Acquisition Mechanism (TAGSAM).

A mylar flap on the TAGSAM allows material to easily enter the collector head, and should seal shut once the particles pass through. However, larger rocks that didn't fully pass through the flap into the TAGSAM appear to have wedged this flap open, allowing bits of the sample to leak out.

Because the first sample collection event was so successful, NASA's Science Mission Directorate has given the mission team the go-ahead to expedite sample stowage, originally scheduled for Nov. 2, in the spacecraft's Sample Return Capsule (SRC) to minimize further sample loss.

"The abundance of material we collected from Bennu made it possible to expedite our decision to stow," said Dante Lauretta, OSIRIS-REx principal investigator at the University of Arizona, Tucson. "The team is now working around the clock to accelerate the stowage timeline, so that we can protect as much of this material as possible for return to Earth."

Unlike other spacecraft operations where OSIRIS-REx autonomously runs through an entire sequence, stowing the sample is done in stages and requires the team's oversight and input. The team will send the preliminary commands to the spacecraft to start the stow sequence and, once OSIRIS-REx completes each step in sequence, the spacecraft sends telemetry and images back to the team on Earth and waits for the team's confirmation to proceed with the next step.

Signals currently take just over 18.5 minutes to travel between Earth and the spacecraft one-way, so each step of the sequence factors in about 37 minutes of communications transit time. Throughout the process, the mission team will continually assess the TAGSAM's wrist alignment to ensure the collector head is properly placed in the SRC. A new imaging sequence also has been added to the process to observe the material escaping from the collector head and verify that no particles hinder the stowage process. The mission anticipates the entire stowage process will take multiple days, at the end of which the sample will be safely sealed in the SRC for the spacecraft's journey back to Earth.

"I'm proud of the OSIRIS-REx team's amazing work and success to this point," said NASA's Associate Administrator for Science Thomas Zurbuchen. "This mission is well positioned to return a historic and substantial sample of an asteroid to Earth, and they've been doing all the right things, on an expedited timetable, to protect that precious cargo."

posted 10-28-2020 05:38 PM

OSIRIS-REx in the Midst of Stow

Yesterday [Oct. 27], NASA's OSIRIS-REx mission successfully placed the spacecraft's sample collector head into its Sample Return Capsule (SRC). The first image shows the collector head hovering over the SRC after the Touch-And-Go Sample Acquisition Mechanism (TAGSAM) arm moved it into the proper position for capture. The second image shows the collector head secured onto the capture ring in the SRC. Both images were captured by the StowCam camera.

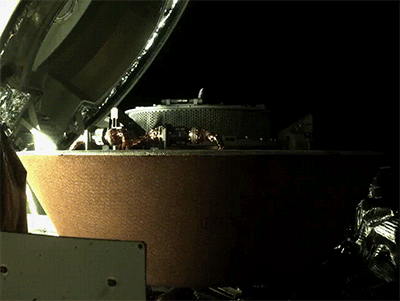

Above: NASA's OSIRIS-REx mission successfully placed the spacecraft's sample collector head into its Sample Return Capsule (SRC). The first image shows the collector head hovering over the SRC after the Touch-And-Go Sample Acquisition Mechanism (TAGSAM) arm moved it into the proper position for capture. The second image shows the collector head secured onto the capture ring in the SRC. (NASA/Goddard/University of Arizona/Lockheed Martin)

Today, after the head was seated into the SRC's capture ring, the spacecraft performed a "backout check," which commanded the TAGSAM arm to back out of the capsule. This maneuver is designed to tug on the collector head and ensure that the latches – which keep the collector head in place – are well secured. Following the test, the mission team received telemetry confirming that the head is properly secured in the SRC.

Before the sampler head can be sealed into the SRC, two mechanical parts on the TAGSAM arm must first be disconnected – these are the tube that carried the nitrogen gas to the TAGSAM head during sample collection and the TAGSAM arm itself. Over the next several hours, the mission team will command the spacecraft to cut the tube and separate the collector head from the TAGSAM arm. Once the team confirms these activities have executed as planned, they will command the spacecraft to seal the SRC.

StowCam, a color imager, is one of three cameras comprising TAGCAMS (the Touch-and-Go Camera System), which is part of OSIRIS-REx's guidance, navigation, and control system. TAGCAMS was designed, built and tested by Malin Space Science Systems; Lockheed Martin integrated TAGCAMS to the OSIRIS-REx spacecraft and operates TAGCAMS.

posted 10-29-2020 03:36 PM

NASA's OSIRIS-REx Successfully Stows Sample of Asteroid Bennu

NASA's Origins, Spectral Interpretation, Resource Identification, Security, Regolith Explorer (OSIRIS-REx) mission has successfully stowed the spacecraft's Sample Return Capsule (SRC) and its abundant sample of asteroid Bennu. On Wednesday, Oct. 28, the mission team sent commands to the spacecraft, instructing it to close the capsule – marking the end of one of the most challenging phases of the mission.

"This achievement by OSIRIS-REx on behalf of NASA and the world has lifted our vision to the higher things we can achieve together, as teams and nations," said NASA Administrator Jim Bridenstine. "Together a team comprising industry, academia and international partners, and a talented and diverse team of NASA employees with all types of expertise, has put us on course to vastly increase our collection on Earth of samples from space. Samples like this are going to transform what we know about our universe and ourselves, which is at the base of all NASA's endeavors."

The mission team spent two days working around the clock to carry out the stowage procedure, with preparations for the stowage event beginning Oct. 24. The process to stow the sample is unique compared to other spacecraft operations and required the team's continuous oversight and input over the two-day period. For the spacecraft to proceed with each step in the stowage sequence, the team had to assess images and telemetry from the previous step to confirm the operation was successful and the spacecraft was ready to continue. Given that OSIRIS-REx is currently more than 205 million miles (330 million km) from Earth, this required the team to also work with a greater than 18.5-minute time delay for signals traveling in each direction.

Throughout the process, the OSIRIS-REx team continually assessed the Touch-And-Go Sample Acquisition Mechanism's (TAGSAM) wrist alignment to ensure the collector head was being placed properly into the SRC. Additionally, the team inspected images to observe any material escaping from the collector head to confirm that no particles would hinder the stowage process. StowCam images of the stowage sequence show that a few particles escaped during the stowage procedure, but the team is confident that a plentiful amount of material remains inside of the head.

"Given the complexity of the process to place the sample collector head onto the capture ring, we expected that it would take a few attempts to get it in the perfect position," said Rich Burns, OSIRIS-REx project manager at NASA's Goddard Space Flight Center in Greenbelt, Maryland. "Fortunately, the head was captured on the first try, which allowed us to expeditiously execute the stow procedure."

By the evening of Oct. 27, the spacecraft's TAGSAM arm had placed the collector head into the SRC. The following morning, the OSIRIS-REx team verified that the collector head was thoroughly fastened into the capsule by performing a "backout check." This sequence commanded the TAGSAM arm to attempt to back out of the capsule – which tugged on the collector head and ensured the latches are well secured.

"I want to thank the OSIRIS-REx team from the University of Arizona, NASA Goddard, Lockheed Martin, and their partners, and also especially the SCaN and Deep Space Network people at NASA and JPL, who worked tirelessly to get us the bandwidth we needed to achieve this milestone, early and while still hundreds of millions of miles away," said Thomas Zurbuchen, NASA's associate administrator for science at the agency's headquarters in Washington. "What we have done is a real first for NASA, and we will benefit for decades by what we have been able to achieve at Bennu."

On the afternoon of Oct. 28, following the backout check, the mission team sent commands to disconnect the two mechanical parts on the TAGSAM arm that connect the sampler head to the arm. The spacecraft first cut the tube that carried the nitrogen gas that stirred up the sample through the TAGSAM head during sample collection, and then separated the collector head from the TAGSAM arm itself.

That evening, the spacecraft completed the final step of the sample stowage process –closing the SRC. To secure the capsule, the spacecraft closed the lid and then fastened two internal latches. As of late Oct. 28, the sample of Bennu is safely stored and ready for its journey to Earth.

"I'm very thankful that our team worked so hard to get this sample stowed as quickly as they did," said Dante Lauretta, OSIRIS-REx principal investigator at the University of Arizona, Tucson. "Now we can look forward to receiving the sample here on Earth and opening up that capsule."

The stowage process, originally scheduled to begin in early November, was expedited after sample collection when the mission team received images that showed the spacecraft's collector head overflowing with material. The images indicated that the spacecraft collected well over 2 ounces (60 grams) of Bennu's surface material, and that some of these particles appeared to be slowly escaping from the head. A mylar flap designed to keep the sample inside the head appeared to be wedged open by some larger rocks. Now that the head is secure inside the SRC, pieces of the sample will no longer be lost.

The OSIRIS-REx team will now focus on preparing the spacecraft for the next phase of the mission – Earth Return Cruise. The departure window opens in March 2021 for OSIRIS-REx to begin its voyage home, and the spacecraft is targeting delivery of the SRC to Earth on Sep. 24, 2023.

posted 01-26-2021 10:44 AM

NASA's OSIRIS-REx Mission Plans for May Asteroid Departure

On May 10, NASA's Origins, Spectral Interpretation, Resource Identification, Security, Regolith Explorer (OSIRIS-REx) spacecraft will say farewell to asteroid Bennu and begin its journey back to Earth. During its Oct. 20, 2020, sample collection event, the spacecraft collected a substantial amount of material from Bennu's surface, likely exceeding the mission's requirement of 2 ounces (60 grams). The spacecraft is scheduled to deliver the sample to Earth on Sep. 24, 2023.

"Leaving Bennu's vicinity in May puts us in the 'sweet spot,' when the departure maneuver will consume the least amount of the spacecraft's onboard fuel," said Michael Moreau, OSIRIS-REx deputy project manager at NASA's Goddard Space Flight Center in Greenbelt, Maryland. "Nevertheless, with over 593 miles per hour (265 meters per second) of velocity change, this will be the largest propulsive maneuver conducted by OSIRIS-REx since the approach to Bennu in October 2018."

The May departure also provides the OSIRIS-REx team with the opportunity to plan a final spacecraft flyby of Bennu. This activity was not part of the original mission schedule, but the team is studying the feasibility of a final observation run of the asteroid to potentially learn how the spacecraft's contact with Bennu's surface altered the sample site.

If feasible, the flyby will take place in early April and will observe the sample site, named Nightingale, from a distance of approximately 2 miles (3.2 kilometers). Bennu's surface was considerably disturbed after the Touch-and-Go (TAG) sample collection event, with the collector head sinking 1.6 feet (48.8 centimeters) into the asteroid's surface. The spacecraft's thrusters also disturbed a substantial amount of surface material during the back-away burn.

The mission is planning a single flyby, mimicking one of the observation sequences conducted during the mission's Detailed Survey phase in 2019. OSIRIS-REx would image Bennu for a full rotation to obtain high-resolution images of the asteroid's northern and southern hemispheres and equatorial region. The team would then compare these new images with the previous high-resolution imagery of Bennu obtained during 2019.

"OSIRIS-REx has already provided incredible science," said Lori Glaze, NASA's director of planetary science at the agency's headquarters in Washington. "We're really excited the mission is planning one more observation flyby of asteroid Bennu to provide new information about how the asteroid responded to TAG and to render a proper farewell."

These post-TAG observations would also give the team a chance to assess the current functionality of science instruments onboard the spacecraft – specifically the OSIRIS-REx Camera Suite (OCAMS), OSIRIS-REx Thermal Emission Spectrometer (OTES), OSIRIS-REx Visible and Infrared Spectrometer (OVIRS), and OSIRIS-REx Laser Altimeter (OLA). It is possible dust coated the instruments during the sample collection event and the mission wants to evaluate the status of each. Understanding the health of the instruments is also part of the team's assessment of possible extended mission opportunities after the sample is delivered to Earth.

The spacecraft will remain in asteroid Bennu's vicinity until May 10, when the mission will enter its Earth Return Cruise phase. As it approaches Earth, OSIRIS-REx will jettison the Sample Return Capsule (SRC). The SRC will then travel through the Earth's atmosphere and land under parachutes at the Utah Test and Training Range.

Once recovered, NASA will transport the capsule to the curation facility at the agency's Johnson Space Center in Houston and distribute the sample to laboratories worldwide, enabling scientists to study the formation of our solar system and Earth as a habitable planet.

posted 04-01-2021 05:22 PM

OSIRIS-REx's Final Asteroid Observation Run

NASA's OSIRIS-REx mission is on the brink of discovering the extent of the mess it made on asteroid Bennu's surface during last fall's sample collection event.

On Apr. 7, the OSIRIS-REx spacecraft will get one last close encounter with Bennu as it performs a final flyover to capture images of the asteroid's surface. While performing the flyover, the spacecraft will observe Bennu from a distance of about 2.3 miles (3.7 km) – the closest it's been since the Touch-and-Go Sample Collection event on Oct. 20, 2020.

Above: This artist's concept shows the planned flight path of NASA's OSIRIS-REx spacecraft during its final flyby of asteroid Bennu, which is scheduled for April 7. (NASA/Goddard/University of Arizona)

The OSIRIS-REx team decided to add this last flyover after Bennu's surface was significantly disturbed by the sample collection event. During touchdown, the spacecraft's sampling head sunk 1.6 feet (48.8 centimeters) into the asteroid's surface and simultaneously fired a pressurized charge of nitrogen gas. The spacecraft's thrusters also mobilized a substantial amount of surface material during the back-away burn. Because Bennu's gravity is so weak, these various forces from the spacecraft had a dramatic effect on the sample site – launching many of the region's rocks and a lot of dust in the process. This final flyby of Bennu will provide the mission team an opportunity to learn how the spacecraft's contact with Bennu's surface altered the sample site and the region surrounding it.

The single flyby will mimic one of the observation sequences conducted during the mission's Detailed Survey phase in 2019. OSIRIS-REx will image Bennu for 5.9 hours, which is just over a full rotation period of the asteroid. Within this timeframe, the spacecraft's PolyCam imager will obtain high-resolution images of Bennu's northern and southern hemispheres and its equatorial region. The team will then compare these new images with the previous high-resolution imagery of the asteroid obtained during 2019.

Most of the spacecraft's other science instruments will also collect data during the flyover, including the MapCam imager, the OSIRIS-REx Thermal Emission Spectrometer (OTES), the OSIRIS-REx Visible and Infrared Spectrometer (OVIRS), and the OSIRIS-REx Laser Altimeter (OLA). Exercising these instruments will give the team a chance to assess the current state of each science instrument onboard the spacecraft, as dust coated the instruments during the sample collection event. Understanding the health of the instruments is also part of NASA's evaluation of possible extended mission opportunities after the sample is delivered to Earth.

After the Bennu flyby, it will take several days for the data from the flyover to be downlinked to Earth. Once the data are downlinked, the team will inspect the images to understand how OSIRIS-REx disturbed the asteroid's surface material. At this point, the team will also be able to evaluate the performance of the science instruments.

The spacecraft will remain in asteroid Bennu's vicinity until May 10, when the mission will enter its Return Cruise phase and begin its two-year journey back to Earth. As it approaches Earth, the spacecraft will jettison the Sample Return Capsule (SRC) that contains the rocks and dust collected from Bennu. The SRC will then travel through the Earth's atmosphere and land under parachutes at the Utah Test and Training Range on Sep. 24, 2023.

posted 04-07-2021 05:20 PM

NASA's OSIRIS-REx Completes Final Tour of Asteroid Bennu

NASA's OSIRIS-REx completed its last flyover of Bennu around 6 a.m. EDT (4 a.m. MDT) April 7 and is now slowly drifting away from the asteroid; however, the mission team will have to wait a few more days to find out how the spacecraft changed the surface of Bennu when it grabbed a sample of the asteroid.

Above: This image shows a top-down view of asteroid Bennu, with a portion of the asteroid's equatorial ridge and northern hemisphere illuminated. It was taken by the PolyCam camera on NASA's OSIRIS-REx spacecraft on March 4, 2021, from a distance of about 186 miles (300 km). (NASA/Goddard/University of Arizona)

The OSIRIS-REx team added this flyby to document surface changes resulting from the Touch and Go (TAG) sample collection maneuver Oct. 20, 2020. "By surveying the distribution of the excavated material around the TAG site, we will learn more about the nature of the surface and subsurface materials along with the mechanical properties of the asteroid," said Dr. Dante Lauretta, principal investigator for OSIRIS-REx at the University of Arizona.

During the flyby, OSIRIS-REx imaged Bennu for 5.9 hours, covering more than a full rotation of the asteroid. It flew within 2.1 miles' (3.5 kilometers) distance to the surface of Bennu – the closest it's been since the TAG sample collection event.

It will take until at least April 13 for OSIRIS-REx to downlink all of the data and new pictures of Bennu's surface recorded during the flyby. It shares the Deep Space Network antennas with other missions like Mars Perseverance, and typically gets 4–6 hours of downlink time per day. "We collected about 4,000 megabytes of data during the flyby," said Mike Moreau, deputy project manager of OSIRIS-REx at NASA's Goddard Space Flight Center in Greenbelt, Maryland. "Bennu is approximately 185 million miles from Earth right now, which means we can only achieve a downlink data-rate of 412 kilobits per second, so it will take several days to download all of the flyby data."

Once the mission team receives the images and other instrument data, they will study how OSIRIS-REx jumbled up Bennu's surface. During touchdown, the spacecraft's sampling head sunk 1.6 feet (48.8 centimeters) into the asteroid's surface and simultaneously fired a pressurized charge of nitrogen gas. The spacecraft's thrusters kicked up a large amount of surface material during the back-away burn – launching rocks and dust in the process.

OSIRIS-REx, with its pristine and precious asteroid cargo, will remain in the vicinity of Bennu until May 10 when it will fire its thrusters and begin its two-year cruise home. The mission will deliver the asteroid sample to Earth Sept. 24, 2023.

posted 04-15-2021 05:57 PM

NASA's OSIRIS-REx Leaves its Mark on Asteroid Bennu

Like boot prints on the Moon, NASA's OSIRIS-REx spacecraft left its mark on asteroid Bennu. Now, new images — taken during the spacecraft's final fly-over on April 7 — reveal the aftermath of its historic encounter with the asteroid.

The spacecraft flew within 2.3 miles (3.7 km) of the asteroid — the closest it has been since the Touch-and-Go, or TAG, sample collection event on Oct. 20, 2020. During TAG, the spacecraft's sampling head sunk 1.6 feet (48.8 centimeters) into the asteroid's surface and simultaneously fired a pressurized charge of nitrogen gas, churning up surface material and driving some into the collection chamber. The spacecraft's thrusters also launched rocks and dust during the maneuver to reverse course and safely back away from the asteroid.

Comparing the two images reveals obvious signs of surface disturbance. At the sample collection point, there appears to be a depression, with several large boulders evident at the bottom, suggesting that they were exposed by sampling. There is a noticeable increase in the amount of highly reflective material near the TAG point against the generally dark background of the surface, and many rocks were moved around.

Where thrusters fired against the surface, substantial mass movement is apparent. Multiple sub-meter boulders were mobilized by the plumes into a campfire ring–like shape — similar to rings of boulders seen around small craters pocking the surface.

Jason Dworkin, the mission's project scientist at NASA's Goddard Space Flight Center in Greenbelt, Maryland, noticed that one boulder measuring 4 feet (1.25 meters) across on the edge of the sampling site seemed to appear only in the post-TAG image. "The rock probably weighs around a ton, with a mass somewhere between a cow and a car."

Dante Lauretta, of the University of Arizona and the mission's principal investigator, later pointed out that this boulder is likely one of those present in the pre-TAG image, but much nearer the sampling location, and estimates it was thrown a distance of 40 feet (about 12 meters) by the sample collection event.

In order to compare the before and after images, the team had to meticulously plan this final flyover. "Bennu is rough and rocky, so if you look at it from a different angle or capture it at a time when the sun is not directly overhead, that dramatically changes what the surface looks like," says Dathon Golish, a member of the OSIRIS-REx image processing working group, headquartered at the University of Arizona. "These images were deliberately taken close to noon, with the Sun shining straight down, when there's not as many shadows."

"These observations were not in the original mission plan, so we were excited to go back and document what we did," Golish said. "The team really pulled together for this one last hurrah."

posted 05-11-2021 09:54 AM

NASA's OSIRIS-REx Spacecraft Heads for Earth with Asteroid Sample

After nearly five years in space, NASA's Origins, Spectral Interpretation, Resource Identification, Security, Regolith Explorer (OSIRIS-REx) spacecraft is on its way back to Earth with an abundance of rocks and dust from the near-Earth asteroid Bennu.

On Monday, May 10, at 4:23 p.m. EDT the spacecraft fired its main engines full throttle for seven minutes – its most significant maneuver since it arrived at Bennu in 2018. This burn thrust the spacecraft away from the asteroid at 600 miles per hour (nearly 1,000 kilometers per hour), setting it on a 2.5-year cruise towards Earth.

After releasing the sample capsule, OSIRIS-REx will have completed its primary mission. It will fire its engines to fly by Earth safely, putting it on a trajectory to circle the sun inside of Venus' orbit.

After orbiting the Sun twice, the OSIRIS-REx spacecraft is due to reach Earth Sept. 24, 2023. Upon return, the capsule containing pieces of Bennu will separate from the rest of the spacecraft and enter Earth's atmosphere. The capsule will parachute to the Utah Test and Training Range in Utah's West Desert, where scientists will be waiting to retrieve it.

"OSIRIS-REx's many accomplishments demonstrated the daring and innovate way in which exploration unfolds in real time," said Thomas Zurbuchen, associate administrator for science at NASA Headquarters. "The team rose to the challenge, and now we have a primordial piece of our solar system headed back to Earth where many generations of researchers can unlock its secrets."

To realize the mission's multi-year plan, a dozen navigation engineers made calculations and wrote computer code to instruct the spacecraft when and how to push itself away from Bennu. After departing from Bennu, getting the sample to Earth safely is the team's next critical goal. This includes planning future maneuvers to keep the spacecraft on course throughout its journey.

"Our whole mindset has been, 'Where are we in space relative to Bennu?'" said Mike Moreau, OSIRIS-REx deputy project manager at NASA's Goddard Space Flight Center in Greenbelt, Maryland. "Now our mindset has shifted to 'Where is the spacecraft in relation to Earth?'"

The navigation cameras that helped orient the spacecraft in relation to Bennu were turned off April 9, after snapping their last images of the asteroid. With Bennu in the rearview mirror, engineers are using NASA's Deep Space Network of global spacecraft communications facilities to steer the OSIRIS-REx by sending it radio signals. By measuring the frequency of the waves returned from the spacecraft transponder, engineers can tell how fast OSIRIS-REx is moving. Engineers measure how long it takes for radio signals to get from the spacecraft back to Earth in order to determine its location.

Exceeding Mission Expectations

The May 10 departure date was precisely timed based on the alignment of Bennu with Earth. The goal of the return maneuver is to get the spacecraft within about 6,000 miles (approximately 10,000 kilometers) of Earth in September 2023. Although OSIRIS-REx still has plenty of fuel remaining, the team is trying to preserve as much as possible for a potential extended mission to another asteroid after returning the sample capsule to Earth. The team will investigate the feasibility of such a mission this summer.

The spacecraft's course will be determined mainly by the Sun's gravity, but engineers will need to occasionally make small course adjustments via engine burns.

"We need to do regular corrections to bring the trajectory increasingly closer to Earth's atmosphere for the sample release, and to account for small errors that might have accumulated since the last burn," said Peter Antreasian, OSIRIS-REx navigation lead at KinetX Aerospace, which is based in Simi Valley, California.

The team will perform course adjustments a few weeks prior to Earth re-entry in order to precisely target the location and angle for the sample capsule's release into Earth's atmosphere. Coming in too low could cause the capsule to bounce out of the atmosphere like a pebble skipping off a lake; too high and the capsule could burn up due to friction and heat from the atmosphere. If OSIRIS-REx fails to release the capsule, the team has a backup plan to divert it away from Earth and try again in 2025.

"There's a lot of emotion within the team about departure," Moreau said. "I think everyone has a great sense of accomplishment, because we faced all these daunting tasks and were able to accomplish all the objectives thrown at us. But there's also some nostalgia and disappointment that this part of the mission is coming to an end."

OSIRIS-REx exceeded many expectations. Most recently, in the midst of a global pandemic, the team flawlessly executed the most mission's critical operation, collecting more than 2 ounces (60 grams) of soil from Bennu's surface.

Leading up to sample collection, a number of surprises kept the team on its toes. For example, a week after the spacecraft entered its first orbit around Bennu, on Dec. 31, 2018, the team realized that the asteroid was releasing small pieces of rock into space.

"We had to scramble to verify that the small particles being ejected from the surface did not present a hazard to the spacecraft," Moreau said.

Upon arrival at the asteroid, team members also were astonished to find that Bennu is littered with boulders.

"We really had this idea that we were arriving on an asteroid with open real estate," said Heather Enos, OSIRIS-REx deputy principal investigator, based at the University of Arizona, Tucson. "The reality was a big shocker."

To overcome the extreme and unexpected ruggedness of Bennu's surface, engineers had to quickly develop a more accurate navigation technique to target smaller-than-expected sites for sample collection.

The OSIRIS-REx mission was instrumental in both confirming and refuting several scientific findings. Among those confirmed was a technique that used observations from Earth to predict that the minerals on the asteroid would be carbon-rich and show signs of ancient water. One finding that proved unsuccessful was that Bennu would have a smooth surface, which scientists predicted by measuring how much heat radiated off its surface.

Scientists will use the information gleaned from Bennu to refine theoretical models and improve future predictions.

"This mission emphasizes why we have to do science and exploration in multiple ways – both from Earth and from up-close in space – because assumptions and models are just that," Enos said.

posted 03-25-2023 09:59 AM

NASA Prepares for Historic Asteroid Sample Delivery on Sept. 24

NASA's OSIRIS-REx spacecraft is cruising back to Earth with a sample it collected from the rocky surface of asteroid Bennu. When its sample capsule parachutes down into the Utah desert on Sept. 24, OSIRIS-REx will become the United States' first-ever mission to return an asteroid sample to Earth.

After seven years in space, including a nail-biting touchdown on Bennu to gather dust and rocks, this intrepid mission is about to face one of its biggest challenges yet: deliver the asteroid sample to Earth while protecting it from heat, vibrations, and earthly contaminants.

"Once the sample capsule touches down, our team will be racing against the clock to recover it and get it to the safety of a temporary clean room," said Mike Moreau, deputy project manager at NASA's Goddard Space Flight Center in Greenbelt, Maryland.

So, over the next six months, the OSIRIS-REx team will practice and refine the procedures required to recover the sample in Utah and transport it to a new lab built for the material at NASA's Johnson Space Center in Houston. There, scientists will unpack the sample, distribute up to a quarter of it to the OSIRIS-REx science team around the world for analysis, and curate the rest for other scientists to study, now and in future generations.

Flight dynamics engineers from NASA Goddard and KinetX Aerospace are reviewing the trajectory that will bring the spacecraft close to Earth. At Lockheed Martin in Denver, team members are keeping tabs on the spacecraft and preparing a group to recover the sample capsule. This summer, crews in Colorado and Utah will practice all of the steps to recover the capsule safely, while protecting it from contamination. At Johnson Space Center, the curation team is rehearsing their procedure to unpack and process the sample inside glove boxes. Meanwhile, members of the sample science team are preparing the investigations they will perform with the sample material once received.

"The OSIRIS-REx team has already performed amazing feats characterizing and sampling asteroid Bennu," said Dante Lauretta, OSIRIS-REx principal investigator from the University of Arizona, Tucson. "These accomplishments are the direct result of the extensive training and rehearsals that we performed every step of the way. We are bringing that level of discipline and dedication to this final phase of the flight operations."

Above: Members of NASA's OSIRIS-REx curation team practice with a mock glove box at the agency's Johnson Space Center in Houston. The curation team will be among the first to see and handle the sample OSIRIS-REx is returning from asteroid Bennu. They are also responsible for storing and distributing the sample to science team members around the world. Most of the sample will be stored for future generations. (NASA Johnson/Bill Stafford)

Asteroids are the ancient materials left over from the original era of planet formation and may contain molecular precursors to life. Scientists have learned a great deal from studying asteroid fragments that have naturally reached the ground as meteorites. But to understand whether asteroids played a role in delivering these compounds to Earth's surface over 4 billion years ago, scientists need a pristine sample from space, free from terrestrial contaminants.

In addition, the most fragile rocks observed on Bennu probably would not have survived passage through Earth's atmosphere as meteorites. "There are two things pervasive on Earth: water and biology," said Dr. Jason Dworkin, OSIRIS-REx project scientist at NASA Goddard. "Both can severely alter meteorites when they land on the ground and muddle the story told by the sample's chemistry and mineralogy. A pristine sample could provide insights into the development of solar system."

On Sept. 24, as the OSIRIS-REx spacecraft flies by Earth, it will release its sample return capsule, thereby ending its primary mission. The capsule, which is estimated to hold about a cup of Bennu's material – 8.8 ounces +/- 3.6 ounces (250 grams +/- 101 grams) to be precise – will land within a 37-mile by 9-mile ellipse (59 km by 15 km) within Department of Defense property that is part of the Utah Test and Training Range and Dugway Proving Grounds.

OSIRIS-REx team members from NASA Goddard, KinetX, Lockheed Martin, and NASA's Langley Research Center in Hampton, Virginia, are using computer models to test navigation plans in various weather, solar activity, and space debris scenarios to ensure that when the capsule enters Earth's atmosphere at 10:41 a.m. ET (8:41 a.m. MT), it will touch down inside the targeted area 13 minutes later.

Recovery crews are responsible for securing the sample return capsule's landing site and helicoptering it to a portable clean room located at the range. Additionally, crews will collect soil and air samples all around the landing capsule. These samples will help identify if any minute contaminants contacted the asteroid sample.

Once the capsule is inside the building with the portable clean room, members of the team will remove the heat shield, back shell, and other components to prepare the sample canister for transport to Houston.

The return to Earth of samples from asteroid Bennu will be the culmination of a more than 12-year effort by NASA and its mission partners but marks the beginning of a new phase of discovery as scientists from around the world will turn their attention to the analysis of this unique and precious material dating from the early formation of our solar system.

posted 06-20-2023 07:39 PM

NASA's OSIRIS-REx Asteroid Sample Will Have New Home in Houston

If everything goes according to plan, OSIRIS-REx's sample return capsule will separate from the spacecraft, enter the Earth's atmosphere and parachute safely to Earth for recovery at the Department of Defense's Utah Test and Training Range, located about 70 miles west of Salt Lake City.

Above: The new OSIRIS-REx curation laboratory at NASA's Johnson Space Center undergoing preparations for completion of the glovebox nitrogen plumbing. (NASA/Nicole Lunning)

"The OSIRIS-REx curation team is excitedly preparing for the Bennu samples," said Nicole Lunning, OSIRIS-REx lead sample curator at Johnson.

The rocks and dust, called regolith, were collected from Bennu's surface in 2020. Bennu is likely to be a well preserved, 4.5 billion year old remanent of the early solar system, so the samples should provide insight into the role that similar asteroids played in the formation of planets and the delivery of organic material and water to Earth that may have ultimately led to life. Data collected from the OSIRIS-REx mission will also help scientists better understand asteroids that could impact Earth and inform future asteroid deflection efforts.

To investigate these questions, scientists must carefully preserve, protect, and handle the asteroid samples, which will be examined and stored in a new curation facility managed by NASA's Astromaterials Research and Exploration Science division, or ARES, at Johnson. The division is home to the world's most extensive collection of extraterrestrial materials - including lunar rocks, solar wind particles, meteorites, and comet samples.

Above: Nicole Lunning, Deputy OSIRIS-REx curator within the Astromaterials Research and Exploration Science (ARES) division at NASA's Johnson Space Center (left) with Dante Lauretta, OSIRIS-REx principal investigator and professor of planetary science from the University of Arizona in Tucson, dressed in clean room gowns in the new curation laboratory at Johnson. (Rowan University/Harold Connolly)

For two years, from late 2023 to late 2025, the science team will characterize the samples and conduct the analysis needed to meet the mission's science goals. NASA will preserve at least 70 percent of the sample at Johnson for further research by scientists worldwide, including future generations of scientists. A cohort of more than 200 scientists around the world will explore the regolith's properties, including researchers from many US institutions, NASA partners JAXA (Japan Aerospace Exploration Agency), CSA (Canadian Space Agency), and other scientists from around the world.

The new curation laboratory has specialized gloveboxes for handling both the OSIRIS-REx sample and the hardware used to grab the material from the asteroid's surface and deliver it to Earth.

"Our team is engaged in a whirlwind of activity as we get ready for the sample," Lunning said. "A variety of specialists are coming together to develop custom tools, many of which have been fabricated onsite by Johnson's Manufacturing group and in the Innovation Design Center. We are carefully outfitting the curation lab to protect the sample from potential contaminants as we rehearse complex procedures for flight hardware disassembly in gloveboxes."

Above: Curation engineers from Johnson's ARES division finalizing installation of the x-y-rotation stage in the Touch-and-Go Sample Acquisition Mechanism glovebox in June 2023. From left to right are Neftali Hernandez Gomez and Salvador Martinez. (NASA)

Some of the material collected from Bennu's surface will be smaller than a grain of sand. "We have been developing custom tools to carefully handle these precious particles within our new gloveboxes," said Christopher Snead, small-particle handling lead and OSIRIS-REx deputy curator at Johnson.

With help from the ARES curation laboratories, scientists around the globe are still analyzing new caches of Moon rocks preserved since the Apollo missions in the Apollo Next Generation Sample Analysis initiative. Lessons learned from Apollo and other missions have advanced the science behind sample protection, contingency planning, and contamination control. This legacy will continue with the Bennu samples, which will be preserved for study by scientists not yet born, using technologies not yet invented, to answer fundamental questions about the solar system.

Scientists of this generation will determine the properties of Bennu's precursor chemical compounds to map out if - and how - these chemicals could have evolved into life. The mineral and chemical makeup of the samples will be analyzed to see if it compares with the interpretation of data collected at the asteroid, helping to improve future missions and the evaluation of telescopic and spacecraft data.

posted 09-20-2023 08:31 AM

OSIRIS-REx Makes Final Course Adjustment Before Sept. 24 Sample Delivery

On Sept. 17, NASA's OSIRIS-REx engineers slightly shifted the spacecraft's trajectory to refine the landing location of its sample capsule, which the spacecraft will deliver to Earth on Sept. 24. The spacecraft briefly fired its thrusters Sunday to change its velocity by 7 inches per minute (3 millimeters per second) relative to Earth.

This final correction maneuver moved the sample capsule's predicted landing location east by nearly 8 miles, or 12.5 kilometers, to the center of its predetermined landing zone inside a 36-mile by 8.5-mile (58-kilometer by 14-kilometer) area on the Defense Department's Utah Test and Training Range.

Sunday's maneuver was a tweak of a critical maneuver on Sept. 10, which set the spacecraft on course to release its sample capsule, with rocks and dust from asteroid Bennu, from 63,000 miles (or 102,000 kilometers) above Earth's surface this weekend.

The spacecraft is currently about 1.8 million miles, or 2.8 million kilometers, away, traveling at about 14,000 mph (about 23,000 kph) toward Earth.

Above: This graphic shows the Earth return trajectory for the OSIRIS-REx spacecraft and for the sample capsule, after the spacecraft releases it above Earth on Sept. 24. The yellow diamonds indicate the dates of spacecraft maneuvers that slightly adjust its trajectory to get it closer, and then pointing at, and then above Earth. (NASA Goddard Space Flight Center)

posted 09-24-2023 08:26 AM

Sample capsule released for landing

Doppler data indicates that NASA's OSIRIS-REx spacecraft released its sample capsule toward Earth at 6:42 a.m. EDT (4:42 a.m. MDT) on Sunday (Sept. 24), as planned, from 63,000 miles of Earth's surface – about one-third the distance from Earth to the moon.

After traveling for about four hours through space, the capsule will enter the atmosphere off the coast of California at about 10:42 a.m. EDT (8:42 a.m. MDT) and head east. It will land about 13 minutes later in a predetermined 36-mile by 8.5-mile area on the Department of Defense's Utah Test and Training Range near Salt Lake City.

Flat and relatively barren, the military range covers about 1.5 million largely uninhabited acres of the Great Salt Lake desert, with much of the air space above closed to non-training-range aircraft, making it an ideal landing location. (NASA's Stardust mission landed a sample capsule of particles from comet Wild 2 on the Utah range in 2006.)

posted 09-24-2023 10:49 AM

NASA's OSIRIS-REx returns to Earth with asteroid Bennu samples

The first U.S. mission to sample an asteroid has landed back on Earth.

Descending under an orange and white parachute, NASA's OSIRIS-REx sample return capsule (SRC) touched down within the Department of Defense's Utah Test and Training Range on Sunday morning (Sept. 24). The mission collected the largest asteroid sample brought back to Earth, with a half a pound (8.8 ounces or 250 grams) of rocks and soil thought to be on board.

"We have touchdown! I repeat... the SRC has touched down!" declared Tim Priser, chief engineer for deep space exploration at Lockheed Martin, reporting from the control room in Utah.

The landing at 8:52 a.m. MDT (10:52 a.m. EDT or 1455 GMT) ended a seven-year journey to the asteroid Bennu and back,

posted 09-25-2023 04:04 PM

NASA's OSIRIS-REx Capsule Arrives in Houston

The first U.S. asteroid sample, delivered by the OSIRIS-REx spacecraft to Earth on Sept. 24, has arrived at its permanent home at NASA's Johnson Space Center in Houston, where it will be cared for, stored, and distributed to scientists worldwide.

The sample arrived in Houston at 12:40 pm ET (11:40 am CT) aboard a U.S. Air Force C-17 aircraft, which landed at Ellington Field Joint Reserve Base, a defense and homeland security compound in Houston. From there, it was transferred to NASA Johnson.

The team will spend the next few weeks in the clean room at Johnson built exclusively for Bennu samples. The clean room includes custom glove boxes built to fit the sample canister containing the TAGSAM (Touch-and-Go Sample Acquisition Mechanism) head inside. The TAGSAM head was on the end of a robotic arm that collected rocks and dust from asteroid Bennu's surface on October 20, 2020.

Having practiced these procedures for months, scientists and technicians plan to proceed through the many steps of removing the sample from the TAGSAM. First, they plan to place the canister in the glove box and disassemble it. Then, they plan to remove the TAGSAM head, where scientists expect most sample to be, cataloging and storing every piece of hardware and asteroid dust found outside of it.

Researchers plan to analyze asteroid dust from the initial disassembly for an early glimpse into the chemical, mineralogical, and physical characteristics and rock types that may be found in the bulk sample.

NASA plans to share these initial findings, plus first images of the sample, in a live broadcast on October 11.

posted 09-26-2023 06:48 PM

Sample canister lid is removed

NASA scientists found black dust and debris on the avionics deck of the OSIRIS-REx science canister when the initial lid was removed today (Sept. 26).

The canister from the OSIRIS-REx sample return capsule was delivered to NASA’s Johnson Space Center in Houston on Sept. 25 after landing in the Utah desert on Sept. 24. Johnson houses the world’s largest collection of astromaterials, and curation experts there will perform the intricate disassembly of the Touch and Go Sample Acquisition Mechanism (TAGSAM) to get down to the bulk sample within.

These operations are happening in a new laboratory designed specifically for the OSIRIS-REx mission. The aluminum lid was removed inside a glovebox designed to enable working with the large piece of hardware.

When the TAGSAM is separated from the canister, it will be inserted in a sealed transfer container to preserve a nitrogen environment for up to about two hours. This container allows enough time for the team to insert the TAGSAM into another unique glovebox. Ultimately, this speeds up the disassembly process.

There is a very high level of focus from the team — the sample will be revealed with an amazing amount of precision to accommodate delicate hardware removal so as not to come into contact with the sample inside.

posted 10-11-2023 12:25 PM

NASA's Bennu Asteroid Sample Contains Carbon, Water

Initial studies of the 4.5-billion-year-old asteroid Bennu sample collected in space and brought to Earth by NASA show evidence of high-carbon content and water, which together could indicate the building blocks of life on Earth may be found in the rock. NASA made the news Wednesday from its Johnson Space Center in Houston where leadership and scientists showed off the asteroid material for the first time since it landed in September.

Above: A view of the outside of the OSIRIS-REx sample collector. Sample material from asteroid Bennu can be seen on the middle right. Scientists have found evidence of both carbon and water in initial analysis of this material. The bulk of the sample is located inside. (NASA/Erika Blumenfeld & Joseph Aebersold)

This finding was part of a preliminary assessment of NASA's OSIRIS-REx (Origins, Spectral Interpretation, Resource Identification and Security – Regolith Explorer) science team.

"The OSIRIS-REx sample is the biggest carbon-rich asteroid sample ever delivered to Earth and will help scientists investigate the origins of life on our own planet for generations to come," said NASA Administrator Bill Nelson. "Almost everything we do at NASA seeks to answer questions about who we are and where we come from. NASA missions like OSIRIS-REx will improve our understanding of asteroids that could threaten Earth while giving us a glimpse into what lies beyond. The sample has made it back to Earth, but there is still so much science to come – science like we've never seen before."

Although more work is needed to understand the nature of the carbon compounds found, the initial discovery bodes well for future analyses of the asteroid sample. The secrets held within the rocks and dust from the asteroid will be studied for decades to come, offering insights into how our solar system was formed, how the precursor materials to life may have been seeded on Earth, and what precautions need to be taken to avoid asteroid collisions with our home planet.

Bonus sample material

The goal of the OSIRIS-REx sample collection was 60 grams of asteroid material. Curation experts at NASA Johnson, working in new clean rooms built especially for the mission, have spent 10 days so far carefully disassembling the sample return hardware to obtain a glimpse at the bulk sample within. When the science canister lid was first opened, scientists discovered bonus asteroid material covering the outside of the collector head, canister lid, and base. There was so much extra material it slowed down the careful process of collecting and containing the primary sample.

"Our labs were ready for whatever Bennu had in store for us," said Vanessa Wyche, director, NASA Johnson. "We've had scientists and engineers working side-by-side for years to develop specialized gloveboxes and tools to keep the asteroid material pristine and to curate the samples so researchers now and decades from now can study this precious gift from the cosmos."

Within the first two weeks, scientists performed "quick-look" analyses of that initial material, collecting images from a scanning electron microscope, infrared measurements, X-ray diffraction, and chemical element analysis. X-ray computed tomography was also used to produce a 3D computer model of one of the particles, highlighting its diverse interior. This early glimpse provided the evidence of abundant carbon and water in the sample.

"As we peer into the ancient secrets preserved within the dust and rocks of asteroid Bennu, we are unlocking a time capsule that offers us profound insights into the origins of our solar system," said Dante Lauretta, OSIRIS-REx principal investigator, University of Arizona, Tucson. "The bounty of carbon-rich material and the abundant presence of water-bearing clay minerals are just the tip of the cosmic iceberg. These discoveries, made possible through years of dedicated collaboration and cutting-edge science, propel us on a journey to understand not only our celestial neighborhood but also the potential for life's beginnings. With each revelation from Bennu, we draw closer to unraveling the mysteries of our cosmic heritage."

For the next two years, the mission's science team will continue characterizing the samples and conduct the analysis needed to meet the mission's science goals. NASA will preserve at least 70% of the sample at Johnson for further research by scientists worldwide, including future generations of scientists. As part of OSIRIS-REx's science program, a cohort of more than 200 scientists around the world will explore the regolith's properties, including researchers from many U.S. institutions, NASA partners JAXA (Japan Aerospace Exploration Agency), CSA (Canadian Space Agency), and other scientists from around the world. Additional samples will also be loaned later this fall to the Smithsonian Institution, Space Center Houston, and the University of Arizona for public display.

NASA's Goddard Space Flight Center in Greenbelt, Maryland, provides overall mission management, systems engineering, and the safety and mission assurance for OSIRIS-REx. Lauretta, the principal investigator, leads the science team and the mission's science observation planning and data processing. Lockheed Martin Space in Littleton, Colorado, built the spacecraft, provided flight operations, and was responsible for capsule recovery. Goddard and KinetX Aerospace were responsible for navigating the OSIRIS-REx spacecraft. Curation for OSIRIS-REx, including processing the sample when it arrived on Earth, is taking place at NASA Johnson.

OSIRIS-REx is the third mission in NASA's New Frontiers Program, managed by NASA's Marshall Space Flight Center in Huntsville, Alabama, for the Science Mission Directorate at NASA Headquarters in Washington.

posted 10-22-2023 10:01 AM

OSIRIS-REx Achieves Sample Mass Milestone

The curation team processing NASA's asteroid Bennu sample has removed and collected 2.48 ounces (70.3 grams) of rocks and dust from the sampler hardware – surpassing the agency's goal of bringing at least 60 grams to Earth.

And the good news is, there's still more of NASA's OSIRIS-REx (Origins, Spectral Interpretation, Resource Identification, and Security–Regolith Explorer) sample to collect.

The sample processed so far includes the rocks and dust found on the outside of the sampler head, as well as a portion of the bulk sample from inside the head, which was accessed through the head's mylar flap. Additional material remaining inside the sampler head, called the Touch-and-Go Sample Acquisition Mechanism, or TAGSAM, is set for removal later, adding to the mass total.

In the last week, the team at NASA's Johnson Space Center in Houston changed its approach to opening the TAGSAM head, which contained the bulk of the rocks and dust collected by the spacecraft in 2020. After multiple attempts at removal, the team discovered two of the 35 fasteners on the TAGSAM head could not be removed with the current tools approved for use in the OSIRIS-REx glovebox. The team has been working to develop and implement new approaches to extract the material inside the head, while continuing to keep the sample safe and pristine.

As a first step, the team successfully accessed some of the material by holding down the head's mylar flap and removing the sample inside with tweezers or a scoop, depending on material size. The collection and containment of material through this method, combined with the earlier collection of material located outside the head, yielded a total mass exceeding the 60 grams required.

The team will spend the next few weeks developing and practicing a new procedure to remove the remaining asteroid sample from the TAGSAM sampler head while simultaneously processing the material that was collected this week. The OSIRIS-REx science team will also proceed with its plan to characterize the extracted material and begin analysis of the bulk sample obtained so far.

All curation work on the sample – and the TAGSAM head – is performed in a specialized glovebox under a flow of nitrogen to keep it from being exposed to Earth's atmosphere, preserving the sample's pristine state for subsequent scientific analysis. The tools for any proposed solution to extract the remaining material from the head must be able to fit inside the glovebox and not compromise the scientific integrity of the collection, and any procedures must be consistent with the clean room's standards.

While the procedure to access the final portion of the material is being developed, the team has removed the TAGSAM head from the active flow of nitrogen in the glovebox and stored it in its transfer container, sealed with an O-ring and surrounded by a sealed Teflon bag to make sure the sample is kept safe in a stable, nitrogen-rich, environment.

posted 12-05-2023 07:40 PM

NASA Finds Likely Cause of OSIRIS-REx Parachute Deployment Sequence

NASA's OSIRIS-REx sample return capsule landed under parachute in the Utah desert on Sept. 24, 2023, and safely delivered a cannister of rocks and dust collected from near-Earth asteroid Bennu. Although the delivery was successful, the landing sequence did not go entirely according to plan, with a small parachute called a drogue not deploying as expected.

After a thorough review of the descent video and the capsule's extensive documentation, NASA found that inconsistent wiring label definitions in the design plans likely caused engineers to wire the parachutes' release triggers such that signals meant to deploy the drogue chute fired out of order.

The drogue was expected to deploy at an altitude of about 100,000 feet. It was designed to slow and stabilize the capsule during a roughly five-minute descent prior to main parachute deployment at an altitude of about 10,000 feet. Instead, at 100,000 feet, the signal triggered the system to cut the drogue free while it was still packed in the capsule. When the capsule reached 9,000 feet, the drogue deployed. With its retention cord already cut, the drogue was immediately released from the capsule. The main parachute deployed as expected, and its design was robust enough to stabilize and slow the capsule, resulting in a safe landing more than a minute earlier than expected. There was no negative impact to OSIRIS-REx's Bennu sample as a result of the unexpected drogue deployment.

In the design plans for the system, the word "main" was used inconsistently between the device that sends the electric signals, and the device that receives the signals. On the signal side, "main" meant the main parachute. In contrast, on the receiver side "main" was used as a reference to a pyrotechnic that fires to release the parachute canister cover and deploy the drogue. Engineers connected the two mains, causing the parachute deployment actions to occur out of order.

To confirm the root cause, NASA will test the system responsible for releasing the parachutes. This hardware is currently inside one of the glove boxes with the Bennu sample at NASA's Johnson Space Center in Houston. Once the curation team there completes processing the sample material – the mission's top priority at present – NASA engineers will be able to access the parachute hardware and verify the cause.

posted 01-11-2024 10:49 PM

Team Clears Hurdle to Access Remaining Bennu Sample

Curation team members at NASA's Johnson Space Center in Houston have successfully removed the two fasteners from the sampler head that had prevented the remainder of OSIRIS-REx's asteroid Bennu sample material from being accessed.

Above: NASA's OSIRIS-REx curation engineer, Neftali Hernandez, attaches one of the tools developed to help remove two final fasteners that prohibited complete disassembly of the TAGSAM (Touch-and-Go Sample Acquisition Mechanism) head that holds the remainder of material collected from asteroid Bennu. (NASA/Robert Markowitz)

Steps now are underway to complete the disassembly of the Touch-and-Go Sample Acquisition Mechanism, or TAGSAM, head to reveal the rest of the rocks and dust delivered by NASA's first asteroid sample return mission.

"Our engineers and scientists have worked tirelessly behind the scenes for months to not only process the more than 70 grams of material we were able to access previously, but also design, develop, and test new tools that allowed us to move past this hurdle," said Eileen Stansbery, division chief for ARES (Astromaterials Research and Exploration Science) at Johnson. "The innovation and dedication of this team has been remarkable. We are all excited to see the remaining treasure OSIRIS-REx holds."

The remainder of the bulk sample will be fully visible after a few additional disassembly steps, at which point image specialists will take ultra-high-resolution pictures of the sample while it is still inside the TAGSAM head. This portion of the sample will then be removed and weighed, and the team will be able to determine the total mass of Bennu material captured by the mission.

Curation processors paused disassembly of the TAGSAM head hardware in mid-October after they discovered that two of the 35 fasteners could not be removed with the tools approved for use inside the OSIRIS-REx glovebox.

In response, two new multi-part tools were designed and fabricated to support further disassembly of the TAGSAM head. These tools include newly custom-fabricated bits made from a specific grade of surgical, non-magnetic stainless steel; the hardest metal approved for use in the pristine curation gloveboxes.

"In addition to the design challenge of being limited to curation-approved materials to protect the scientific value of the asteroid sample, these new tools also needed to function within the tightly-confined space of the glovebox, limiting their height, weight, and potential arc movement," said Dr. Nicole Lunning, OSIRIS-REx curator at Johnson. "The curation team showed impressive resilience and did incredible work to get these stubborn fasteners off the TAGSAM head so we can continue disassembly. We are overjoyed with the success."

Prior to the successful removal, the team at Johnson tested the new tools and removal procedures in a rehearsal lab. After each successful test, engineers increased the assembly torque values and repeated the testing procedures until the team was confident the new tools would be able to achieve the torque needed while minimizing the risk of any potential damage to the TAGSAM head or any contamination of the sample within.

Despite not being able to fully disassemble the TAGSAM head, the curation team members had already collected 2.48 ounces (70.3 grams) of asteroid material from the sample hardware, surpassing the agency's goal of bringing at least 60 grams to Earth. They have fulfilled all the sample requests received from the OSIRIS-REx science team so far and have hermetically sealed some of the Bennu sample for better preservation over long timescales (e.g., multiple decades), storing some at ambient temperature conditions and others at -112 Fahrenheit (-80 degrees Celsius).

Later this spring, the curation team will release a catalog of the OSIRIS-REx samples, which will be available to the global scientific community.

posted 01-23-2024 09:25 AM

NASA'S OSIRIS-REx Curation Team Reveals Remaining Asteroid Sample

The astromaterials curation team at NASA's Johnson Space Center in Houston has completed the disassembly of the OSIRIS-REx sampler head to reveal the remainder of the asteroid Bennu sample inside. On Jan. 10, they successfully removed two stubborn fasteners that had prevented the final steps of opening the Touch-and-Go-Sample-Acquisition-Mechanism (TAGSAM) head.

Above: A top-down view of the OSIRIS-REx Touch-and-Go-Sample-Acquisition-Mechanism (TAGSAM) head with the lid removed, revealing the remainder of the asteroid sample inside. (NASA/Erika Blumenfeld & Joseph Aebersold)

Erika Blumenfeld, creative lead for the Advanced Imaging and Visualization of Astromaterials (AIVA) and Joe Aebersold, AIVA project lead, captured this photograph of the open TAGSAM head including the asteroid material inside using manual high-resolution precision photography and a semi-automated focus stacking procedure. The result is an image that shows extreme detail of the sample.

Next, the curation team will remove the round metal collar and prepare the glovebox to transfer the remaining sample from the TAGSAM head into pie-wedge sample trays.

These trays will be photographed before the sample is weighed, packaged, and stored at Johnson, home to the most extensive collection of astromaterials in the world. The remaining sample material includes dust and rocks up to about 0.4 inch (one cm) in size. The final mass of the sample will be determined in the coming weeks. The curation team members had already collected 2.48 ounces (70.3 grams) of asteroid material from the sample hardware before the lid was removed, surpassing the agency's goal of bringing at least 2.12 ounces (60 grams) to Earth.

The curation team will release a catalog of all the Bennu samples later this year, which will allow scientists and institutions around the world to submit requests for research or display.

posted 02-15-2024 06:29 PM

NASA Announces OSIRIS-REx Bulk Sample Mass

NASA's OSIRIS-REx spacecraft delivered 4.29 ounces (121.6 grams) of material from asteroid Bennu when it returned to Earth on Sep. 24, 2023; the largest asteroid sample ever collected in space and over twice the mission's requirement.

The mission team needed at least 60 grams of material to meet the mission's science goals, an amount that had already been exceeded before the Touch-and-Go Sample Acquisition Mechanism (TAGSAM) head was completely opened. In October 2023, curation processors from the Astromaterials Research and Exploration Science (ARES) division at NASA's Johnson Space Center in Houston were able to collect small rocks and dust from inside the large canister that housed the TAGSAM head, as well as from inside the TAGSAM head itself through the head's mylar flap.

Disassembly of the TAGSAM head was paused in late October 2023, when the team encountered two stubborn fasteners keeping them from being able to complete the process to reveal the final sample within.

After designing, producing, and testing new tools, the ARES curation engineers successfully removed the fasteners in January and completed disassembly of the TAGSAM head. The remaining Bennu sample was revealed and carefully poured into wedge-shaped containers. 1.81 ounces (51.2 grams) were collected from this pour. Combined with the previously measured 2.48 ounces (70.3 grams) and additional particles collected outside of the pour, the bulk Bennu sample mass totals 4.29 ounces (121.6 grams). NASA will preserve at least 70% of the sample at Johnson for further research by scientists worldwide, including future generations.

From NASA Johnson's repository, the Bennu material will be containerized and distributed for researchers to study. As part of the OSIRIS-REx mission, a cohort of more than 200 scientists around the world will explore the regolith's properties, including researchers from many US institutions, NASA partners JAXA (Japan Aerospace Exploration Agency) and CSA (Canadian Space Agency), and more.

Later this spring, the curation team will release a catalog of the OSIRIS-REx samples, which will make the asteroid sample available for request by the global scientific community.
