Author Topic:   [SLS] Mobile Launcher moved to Launch Pad 39B
Robert Pearlman
Editor

Posts: 27328
From: Houston, TX
Registered: Nov 1999

posted 11-16-2011 08:05 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
Mobile Launcher (ML) moves to launch pad

NASA's new mobile launcher made the longest trip of its young life Wednesday (Nov. 16) to begin a two-week series of structural tests at Launch Pad 39B at the Kennedy Space Center in Florida.

In anticipation of launching the Space Launch System (SLS) later this decade, engineers wanted to check the mobile launcher, or ML, in a number of categories ranging from how it would behave moving atop a crawler-transporter to how well its systems mesh with the existing infrastructure at Pad 39B, which has undergone renovations during the past year.

"We have the time and will be able to gain significant knowledge that will assist in the development of the ML," Larry Schultz, ML project manager, said.

The ML began its 14-hour move at 8:15 a.m. CST (1415 GMT) on Nov. 16. The trip covered about 4.2 miles from a work site beside the Vehicle Assembly Building to the launch pad.


Credit: NASA/Kim Shiflett

Rising 400 feet above the rocky crawlerway, the mobile launcher is substantially different than the mobile launcher platforms that carried space shuttles to the launch pads for 30 years. The dominant feature is the ML's tower, a 345-foot-high gray, steel tower reminiscent of the ones that serviced the Saturn rockets in the 1960s and 70s.

Not since 1975 has a structure as tall as the ML stood at either of Kennedy's launch pads.

The mobile launcher had been moved once before, but not very far. It was repositioned at its worksite beside the Vehicle Assembly Building in October 2010.

Although it was originally erected to host a slim rocket, the structure's design was flexible enough that it can be modified to support the Space Launch System, a rocket that is in the same lifting category as the Saturn V.

The modifications to come include strengthening the supports in the base and widening the exhaust port the rocket will stand over. The ML's exhaust port now is a 22-foot square. It will be made into a 60-foot-by-30-foot rectangle.

Swing arms will be added in the 2015 timeframe, modified to provide fueling and venting along with electrical and communication links to the different stages of the booster, along with a crew access arm reaching out to NASA's Orion multi-purpose crew vehicle (MPCV) at the top. Even with the modifications, the structure will be lighter than the shuttle's mobile launcher platform.

The tower was built atop a 47-foot-tall base of steel that is 165 feet long and 135 feet wide. Altogether, the ML weighs in at 6.75 million pounds.

The tower's destination for the move was Launch Pad 39B, which has undergone its own staged makeover since it last hosted a space shuttle. The tower that stood at the pad, which was specifically built for the shuttle, was removed recently and workers refurbished the pad complex's network of lines and plumbing.

The tests of the ML will see whether any of the support fittings at the pad need to be realigned, while also assessing future needs for the pad to permit the ML to perform its work of preparation and launch.

The launch pad still has needed modifications, including a likely redesign of the flame deflector and refurbishment of the flame trench. Unlike other pad designs at Kennedy, Pad 39B is envisioned to have a flexible concept so it can host several kinds of rockets, including the SLS and commercial boosters and spacecraft.


Credit: NASA/Kim Shiflett

After two weeks at 39B, the ML will be moved back to its worksite. Many of the structures that will be added to the ML will see their designs tested at Kennedy first at the Launch Equipment Test Facility. The lab is built so full-size segments of ground support equipment can be evaluated under realistic conditions.

Once the ML has been outfitted with its arms and other modifications are completed, it will be taken again to the pad for more testing. The ML will carry an SLS to the pad in 2017, ahead of the rocket's first test mission. That unmanned flight is intended to evaluate the design before the rocket and spacecraft are used to take astronauts to deep space.


Credit: NASA/Dimitri Gerondidakis

Robert Pearlman
Editor

Posts: 27328
From: Houston, TX
Registered: Nov 1999

posted 11-23-2011 10:57 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
collectSPACE photos
Mobile Launcher (ML) on Pad 39B

Robert Pearlman
Editor

Posts: 27328
From: Houston, TX
Registered: Nov 1999

posted 11-23-2011 11:03 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
collectSPACE photos
Views from atop the Mobile Launcher on Pad 39B

Above: Lightning protection tower and Vehicle Assembly Building.

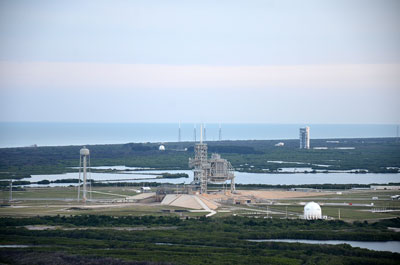

Above: Pad 39A and launch complexes (LC) 40, 41 and 37.

Above: Pad 39A (foreground) and launch complex (LC) 41.

Robert Pearlman
Editor

Posts: 27328
From: Houston, TX
Registered: Nov 1999

posted 11-23-2011 11:08 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
collectSPACE photos
Views from atop the Mobile Launcher on Pad 39B

Above: Crawler-transporter and crawlerway.

Above: Northeast view toward Playalinda Beach.

Above: Pad 39B water tower and liquid oxygen (LOX) tank.

Robert Pearlman
Editor

Posts: 27328
From: Houston, TX
Registered: Nov 1999

posted 12-01-2011 04:06 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
Mobile Launcher returns from Pad 39B

On Nov. 30, 2011, the Mobile Launcher (ML) made the 4.2-mile trek from Pad 39B to the park site near the Vehicle Assembly Building at the Kennedy Space Center in Florida.

Data on the ML collected from structural and functional engineering tests during its two-week stay on the pad will be used in the next phases of construction. The next time the ML will rollout to the pad is expected in 2016.


Photo credit: NASA/Cory Huston/Kim Shiflett

See here for discussion of NASA's mobile launcher (ML) development.
