  Space Shuttles - Space Station
  [ISS] BEAM to test expandable habitat design

Post New Topic  Post A Reply
profile | register | preferences | faq | search

next newest topic | next oldest topic
Author Topic:   [ISS] BEAM to test expandable habitat design
Robert Pearlman
Editor

Posts: 38392
From: Houston, TX
Registered: Nov 1999

posted 05-26-2016 07:39 AM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote

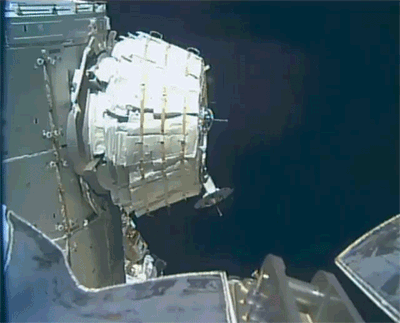

NASA halts first attempt at deploying expandable BEAM habitat

NASA on Thursday (May 26) terminated its first attempt at deploying the Bigelow Expandable Activity Module (BEAM) to its full size at the International Space Station, after its initial inflation did not progress as planned.

"Unfortunately, you're going to have to stand down BEAM operations today," astronaut Jessica Meir, serving as CapCom in Mission Control in Houston, radioed Expedition 47 flight engineer Jeff Williams aboard the orbiting outpost. "We've been assessing the parameters here from the ground and due to a set of no-go conditions and not seeing any noticeable movements, we're going to have to reassess further from here."

"Thanks for all your patience today," she added. "We'll hope for better luck tomorrow."

"These are the kinds of things the team is up for the challenge for, it's space business," replied Williams.

For about two hours on Thursday, Williams followed the ground's lead and manually let in air, at one to four second intervals, into the BEAM through a small valve. The module appeared to initially expand by five inches in length, but then did not move further.

Pressure measurements inside the BEAM returned levels higher than what NASA and Bigelow Aerospace had deemed safe to continue.

BEAM was launched April 8 on a SpaceX Dragon cargo spacecraft and was subsequently installed on the aft port of the Tranquility node eight days later. Once fully-expanded and pressurized, the module will be periodically monitored over the next two years to evaluate its design for possible future uses in space.

Expandable habitats are designed to take up less room on launch, but provide greater volume in space once expanded. This first test of an expandable module will allow investigators to gauge how well the habitat protects against solar radiation, debris and the temperatures of space.

The BEAM project is co-sponsored by NASA's Advanced Exploration Systems Division and Bigelow Aerospace.

Robert Pearlman
Editor

Posts: 38392
From: Houston, TX
Registered: Nov 1999

posted 05-26-2016 04:22 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
NASA update
NASA and Bigelow Aerospace are continuing to evaluate why the Bigelow Expandable Activity Module (BEAM) did not fully expand today as planned and will not attempt to complete the module’s expansion on Friday.

Engineering teams will monitor the module overnight for structural changes that could result in either larger volume or lower internal pressure before meeting on Friday morning to discuss options moving forward. Ground teams will look for any changes in the module's shape following the conclusion of Thursday’s operations and the station crew will take additional pressure readings.

Crew members aboard the International Space Station are safe, and both BEAM and the space station are in a stable configuration.

Robert Pearlman
Editor

Posts: 38392
From: Houston, TX
Registered: Nov 1999

posted 05-28-2016 05:41 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
collectSPACE

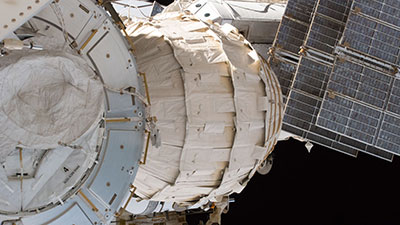

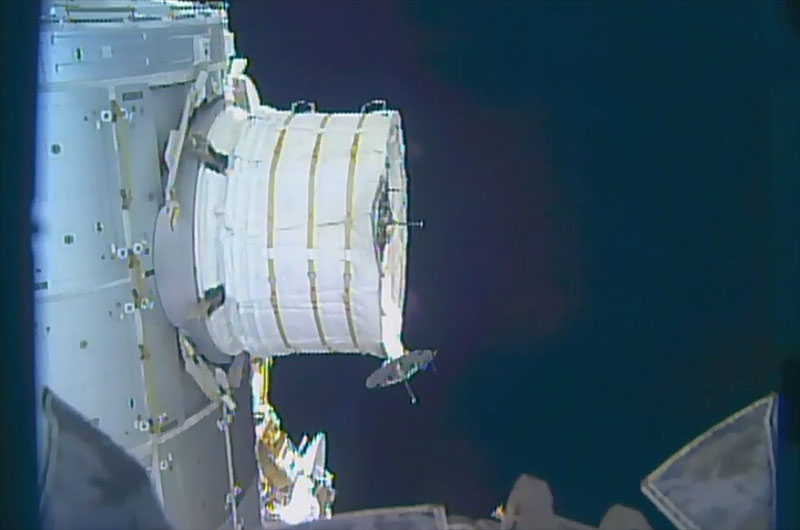

BEAM out: First human-rated expandable habitat inflated on space station

The International Space Station grew a room bigger — and gained a bigger room — on Saturday (May 28) with the inflation of an experimental habitat.

The Bigelow Expandable Activity Module, or BEAM, was slowly deployed to its full size using the space station's air supply to grow the fabric-constructed room to five times its deflated, compact volume. The successful inflation was the first milestone in a two-year test of the BEAM to evaluate the module's design for future orbiting outposts and deep space vehicles.

Danno
Member

Posts: 572
From: Ridgecrest, CA - USA
Registered: Jun 2000

posted 05-28-2016 10:59 PM     Click Here to See the Profile for Danno     Edit/Delete Message   Reply w/Quote
Fantastic! I can't wait for the astronauts to ingress next week!

OV-105
Member

Posts: 778
From: Ridgecrest, CA
Registered: Sep 2000

posted 05-28-2016 11:30 PM     Click Here to See the Profile for OV-105   Click Here to Email OV-105     Edit/Delete Message   Reply w/Quote
Jiffy Pop is ready!

Robert Pearlman
Editor

Posts: 38392
From: Houston, TX
Registered: Nov 1999

posted 06-06-2016 09:10 AM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
NASA update
BEAM Open for the First Time

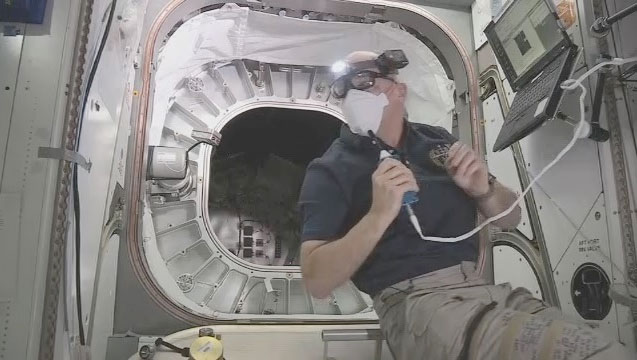

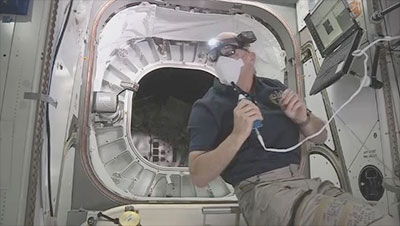

Astronaut Jeff Williams opened the hatch to the Bigelow Expandable Activity Module (BEAM) at 4:47 a.m. EDT (0847 GMT) Monday (June 6). Along with cosmonaut Oleg Skripochka, Williams entered BEAM for the first time to collect an air sample and begin downloading data from sensors on the dynamics of BEAM's expansion.

Williams told flight controllers at Mission Control, Houston that BEAM looked "pristine" and said it was cold inside, but that there was no evidence of any condensation on its inner surfaces.

Additional ingress opportunities to deploy other sensors in BEAM are scheduled for Tuesday and Wednesday. The hatch to BEAM will be closed after each entry.

Robert Pearlman
Editor

Posts: 38392
From: Houston, TX
Registered: Nov 1999

posted 06-06-2016 09:15 AM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote

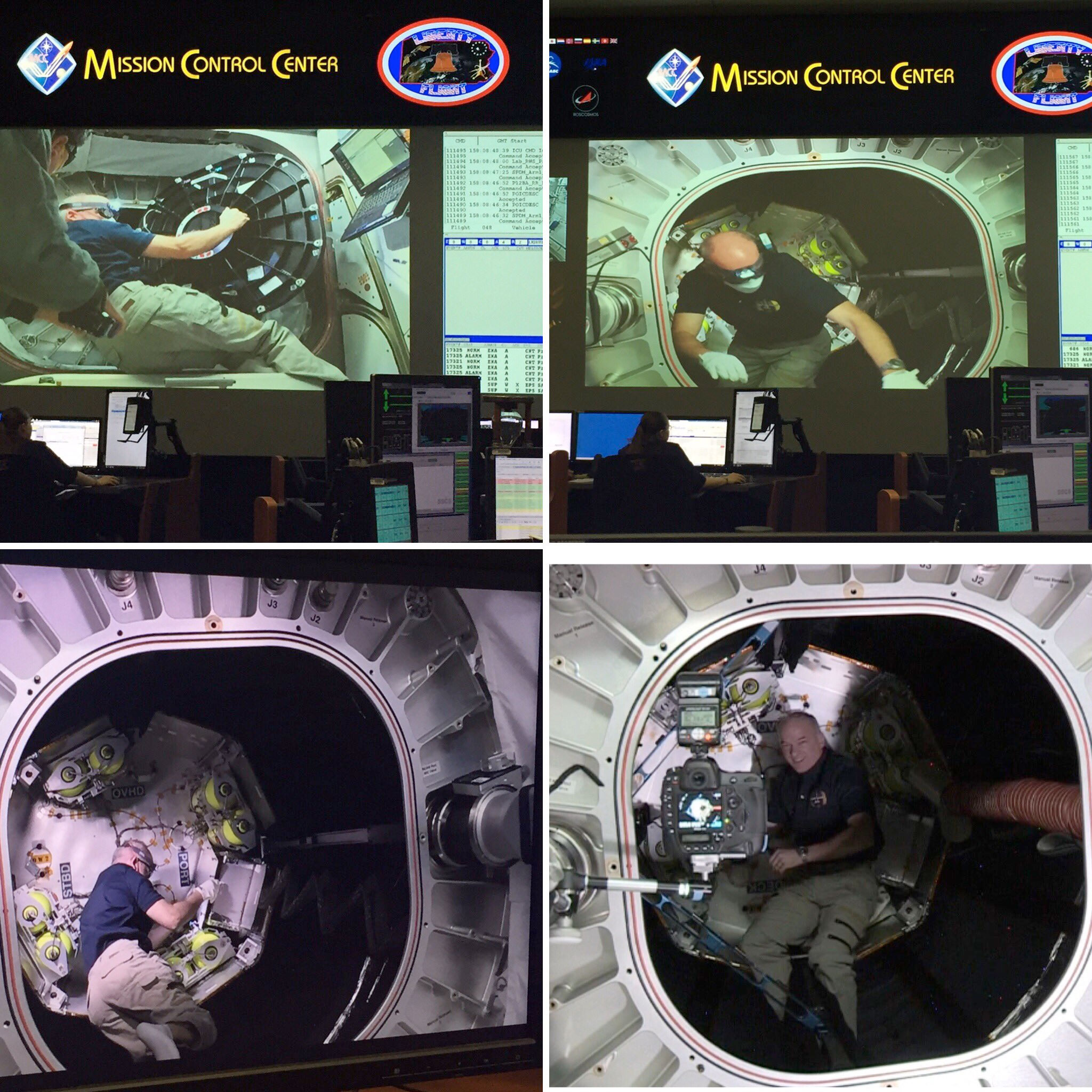

Jessica Meir on Twitter:
@Astro_Jeff reports "Pristine inside #BEAM!" Successful 1st ingress and 1st @BigelowSpace selfie @Space_Station

Robert Pearlman
Editor

Posts: 38392
From: Houston, TX
Registered: Nov 1999

posted 06-16-2016 08:11 AM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
NASA photos

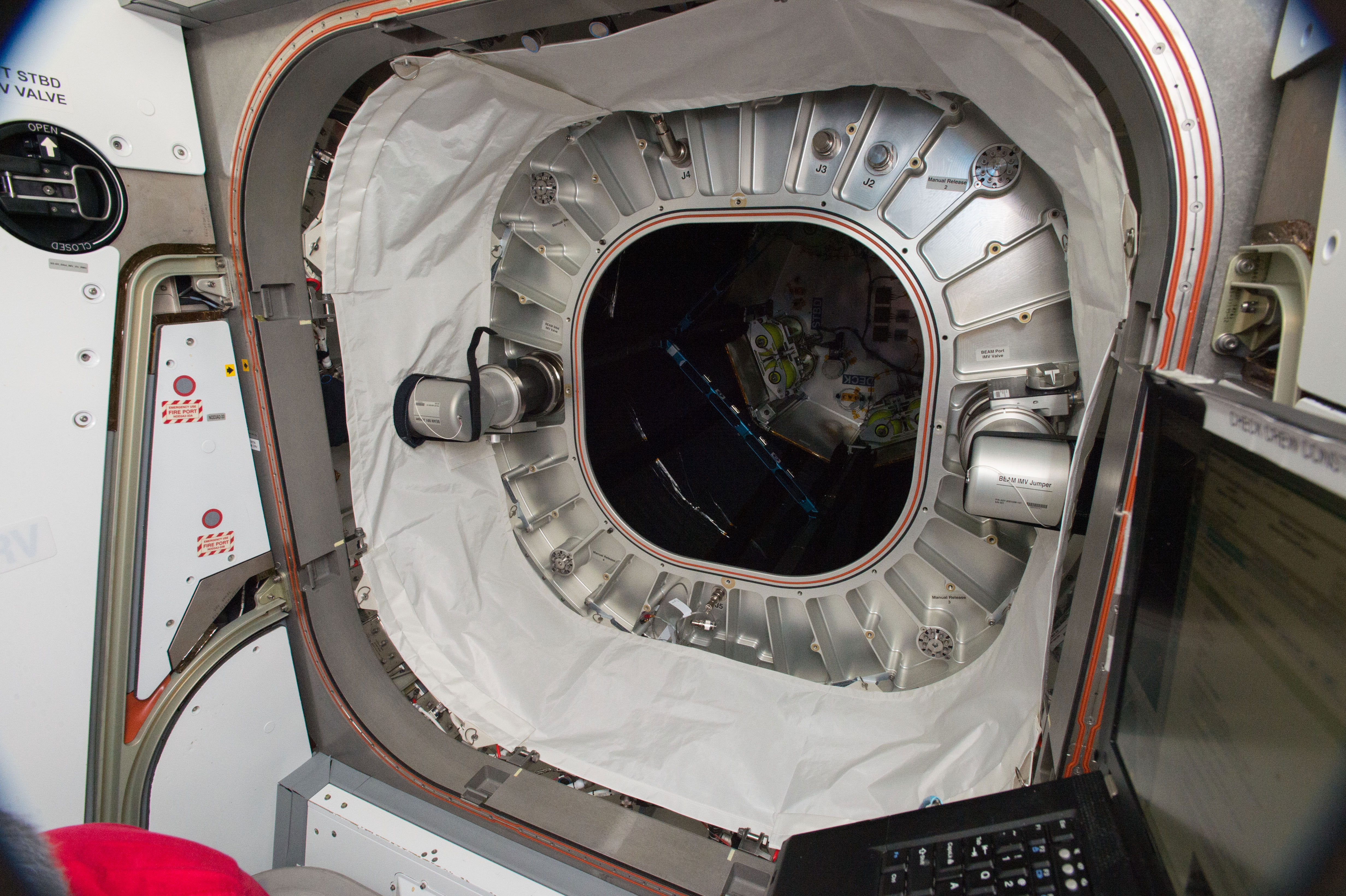

The entrance to the Bigelow Expandable Activity Module (BEAM) is seen during sensor installation after successful expansion.

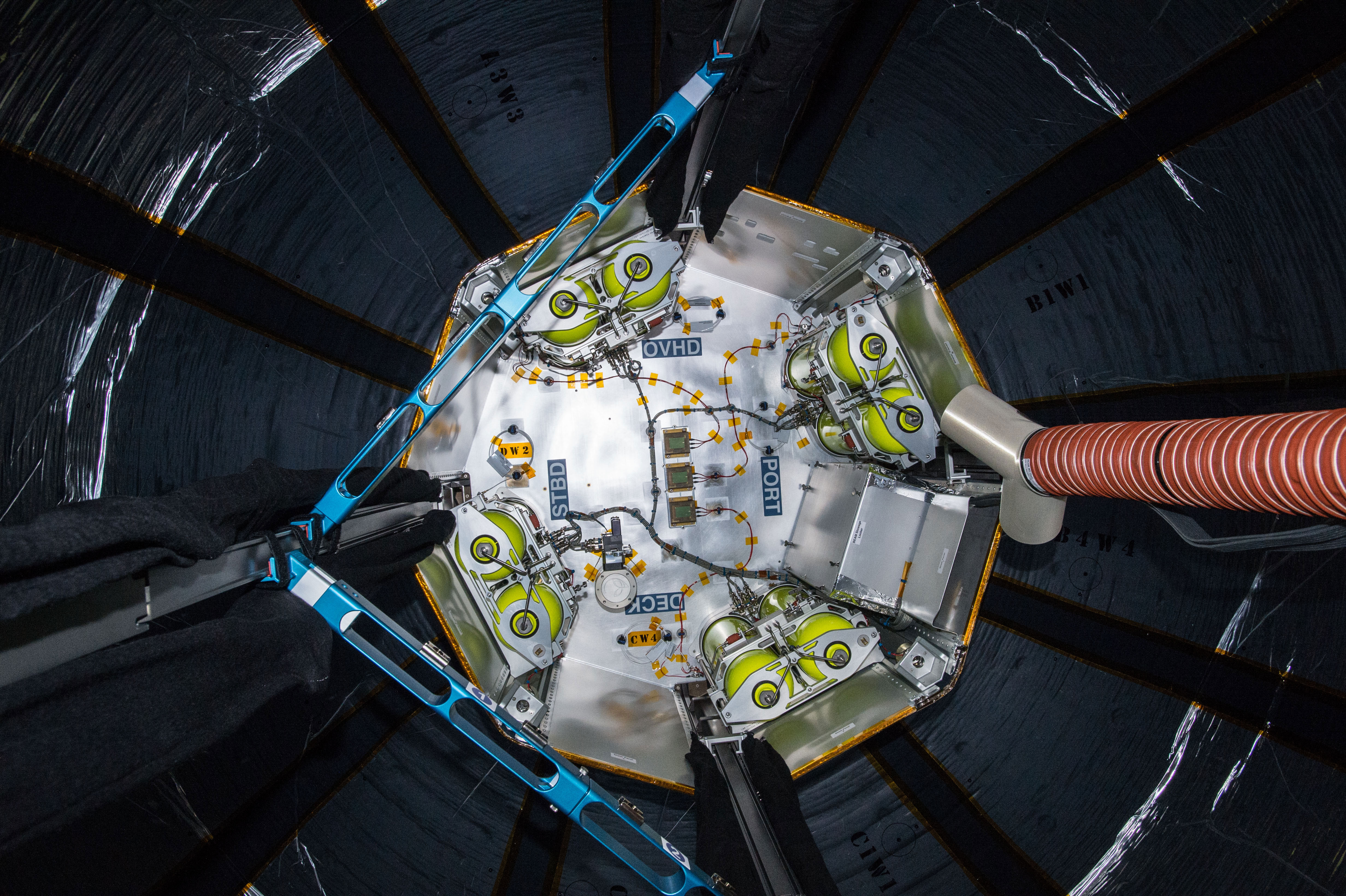

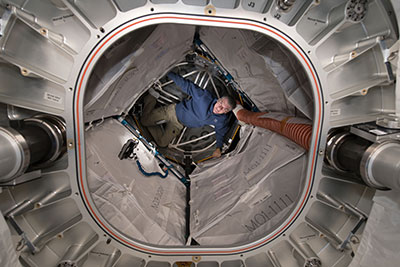

The interior of the Bigelow Expandable Activity Module (BEAM).

And from Tim Peake on Twitter:
Expedition 47 is coming to an end — it's been great working with this crew! (pic taken inside the new BEAM)

SkyMan1958
Member

Posts: 712
From: CA.
Registered: Jan 2011

posted 06-16-2016 11:28 AM     Click Here to See the Profile for SkyMan1958   Click Here to Email SkyMan1958     Edit/Delete Message   Reply w/Quote
Interesting pics.

Robert Pearlman
Editor

Posts: 38392
From: Houston, TX
Registered: Nov 1999

posted 01-18-2017 02:48 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
From Bigelow Aerospace (BA) on Twitter:
As BEAM continues to outperform expectations, NASA and BA
are in agreement to evolve BEAM into becoming an everyday asset aboard the ISS.

Robert Pearlman
Editor

Posts: 38392
From: Houston, TX
Registered: Nov 1999

posted 01-19-2017 07:40 AM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
In a statement to SpaceNews, company founder Robert Bigelow said more details about any agreement with NASA about extended use of BEAM would be released at a later date.
"We are excited that BEAM may serve multiple uses that could extend its time attached to station well beyond the original two-year expected period," he said. "We will be happy to provide more specifics as this process develops shortly."

NASA spokeswoman Cheryl Warner said Jan. 18 that the agency was still in discussions with Bigelow about "next steps" for BEAM. "The BEAM demonstration is providing valuable data regarding how the materials and an expandable structure perform in the space environment," she said. "We are in discussions with Bigelow Aerospace to evaluate the next steps for the module."

Robert Pearlman
Editor

Posts: 38392
From: Houston, TX
Registered: Nov 1999

posted 05-26-2017 05:39 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
NASA release
First Year of BEAM Demo Offers Valuable Data on Expandable Habitats

Halfway into its planned two-year demonstration attached to the International Space Station, the Bigelow Expandable Activity Module, or BEAM, is showing that soft materials can perform as well as rigid materials for habitation volumes in space. The BEAM was launched and attached to station through a partnership between NASA's Advanced Exploration Systems Division (AES) and Bigelow Aerospace, headquartered in North Las Vegas, Nevada.

NASA and Bigelow are primarily evaluating characteristics directly related to the module's ability to protect humans from the harsh space environment. Astronauts aboard station work with researchers on the ground to monitor the module's structural integrity, thermal stability, and resistance to space debris, radiation, and microbial growth.

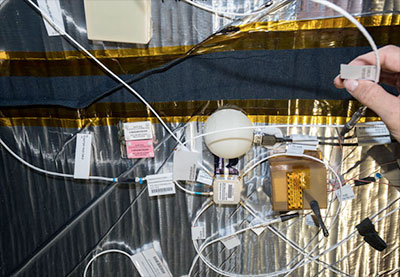

Above: Astronauts aboard the space station 3D printed a shield to cover one of the two Radiation Environment Monitors inside the BEAM. The shield, the white hemispherical shape at the center of the photograph, is shown above inside the BEAM module. In the coming months, the crew will print successively thicker shields to determine the shielding effectiveness at blocking radiation.

Researchers at NASA's Langley Research Center in Hampton, Virginia, continually analyze data from internal sensors designed to monitor and locate external impacts by orbital debris, and, as expected, have recorded a few probable micrometeoroid debris impacts so far. BEAM has performed as designed in preventing debris penetration with multiple outer protective layers exceeding space station shielding requirements.

Over the next several months, NASA and Bigelow will focus on measuring radiation dosage inside the BEAM. Using two active Radiation Environment Monitors (REM) inside the module, researchers at NASA's Johnson Space Center in Houston are able to take real-time measurements of radiation levels. They have found that Galactic Cosmic Radiation (GCR) dose rates inside the BEAM are similar to other space station modules, and continue to analyze contributions to the daily dose from the Earth's trapped radiation belts to better understand the shielding properties of the module for application to long-term missions. The space station and the BEAM enjoy a significant amount of protection from Earth's magnetosphere. Future deep space missions will be far more exposed to energized radiation particles speeding through the solar system, so NASA is actively working on ways to mitigate the effects of radiation events.

In late April, NASA's radiation researchers at Johnson began a multi-month BEAM radiation experiment by installing a .04 inch (1.1 mm) thick shield onto one of the two REM sensors in BEAM. The station crew produced a hemispherical shield using the 3-D printer on the space station, and in the next few months this first shield will be replaced by two successively thicker shields, also 3-D printed, with thicknesses of about .13 inches (3.3mm) and .4 inches (10mm), respectively. The difference in measurements from the two REMs — one with a shield and one without — will help better resolve the energy spectra of the trapped radiation particles, particularly those coming from the South Atlantic Anomaly.

Space station crew members have entered the BEAM nine times since its expansion in May 2016. In addition to the REM shielding experiment activities, the crew has swapped out passive radiation badges called Radiation Area Monitors and they routinely collect microbial air and surface samples. These badges and samples are sent back to Earth for standard microbial and radiation analysis at Johnson.

The BEAM technology demonstration is helping NASA to advance and learn about expandable space habitat technology in low-Earth orbit for application toward future human exploration missions. The partnership between NASA and Bigelow supports NASA's objective to develop a deep space habitat for human missions beyond Earth orbit while fostering commercial capabilities for non-government applications.

Robert Pearlman
Editor

Posts: 38392
From: Houston, TX
Registered: Nov 1999

posted 10-02-2017 11:32 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
NASA release
NASA May Extend BEAM's Time on the International Space Station

NASA is exploring options with Bigelow Aerospace to extend the life of the privately owned Bigelow Expandable Activity Module. Known as BEAM, the module is attached to the International Space Station and continues to perform well during its technology demonstration mission. NASA has issued a synopsis of an intended contract action to partner with Bigelow Aerospace to extend the life of the expandable habitat and use it for long-term in-orbit storage. This step continues NASA's commitment to expand private-public partnerships, scientific research and commercial applications aboard station to maximize the benefits from humanity's premiere laboratory in microgravity.

NASA's use of BEAM as part of a human-rated system will allow Bigelow Aerospace to demonstrate its technology for future commercial applications in low-Earth Orbit. Initial studies have shown that soft materials can perform as well as rigid materials for habitation volumes in space and that BEAM has performed as designed in resistance to space debris.

BEAM launched on the eighth SpaceX Commercial Resupply Service mission in 2016. After being attached to the Tranquility Node using the station's robotic Canadarm2, it was filled with air to expand it for a two-year test period to validate overall performance and capability of expandable habitats. Since the initial expansion, a suite of sensors installed by the crew automatically take measurements and monitor BEAM's performance to help inform designs for future habitat systems. Learning how an expandable habitat performs in the thermal environment of space and how it reacts to radiation, micrometeoroids and orbital debris will provide information to address key concerns about living in the harsh environment of space. This extension activity will deepen NASA's understanding of expandable space systems by making the BEAM a more operational element of the space station to be actively used in storage and crew operations.

Space station crew members have entered BEAM 13 times since its expansion in May 2016. The crew has conducted radiation shielding experiments, installed passive radiation badges called Radiation Area Monitors, and they routinely collect microbial air and surface samples. These badges and samples are returned to Earth for standard microbial and radiation analysis at the Johnson Space Center.

The original plan called for engineers to robotically jettison BEAM from the space station following the two-year test and validation period, allowing it to burn up during its descent through Earth's atmosphere. However, after almost a year and a half into the demonstration with positive performance, NASA now intends to continue supporting BEAM for stowage use and to allow Bigelow Aerospace to use the module as a test-bed for new technology demonstrations. A new contract would likely begin later this year, overlapping the original planned test period, for a minimum of three years, with two options to extend for one additional year. At the end of the new contract, the agency may consider further life extension or could again consider jettisoning BEAM from the station.

Using the space inside BEAM would allow NASA to hold between 109 to 130 Cargo Transfer Bags of in-orbit stowage, and long-term use of BEAM would enable NASA to gather additional performance data on the module's structural integrity, thermal stability and resistance to space debris, radiation and microbial growth to help NASA advance and learn about expandable space habitat technology in low-Earth orbit for application toward future human exploration missions. Given that the volume of each Cargo Transfer Bag is about 1.87 cubic feet (0.53 cubic meters), use of BEAM for stowage will free an equivalent space of about 3.7 to 4.4 International Standard Payload Racks, enabling more space in the ISS for research.

With an extension of the partnership, Bigelow also would be able to continue to demonstrate its technology for future commercial applications in low-Earth orbit. The public-private partnership between NASA and Bigelow supports NASA's objective to develop deep space habitation capabilities for human missions beyond Earth orbit while fostering commercial capabilities for non-government applications to stimulate the growth of the space economy.

Headshot
Member

Posts: 688
From: Streamwood, IL USA
Registered: Feb 2012

posted 10-04-2017 01:16 PM     Click Here to See the Profile for Headshot   Click Here to Email Headshot     Edit/Delete Message   Reply w/Quote
Good move on NASA's part. BEAM could the answer to many issues.

I really wish NASA contracted for a much larger inflatable module to test how a more voluminous structure performs and endures over a long period of time. It has so many potential applications as to boggle the mind.

Robert Pearlman
Editor

Posts: 38392
From: Houston, TX
Registered: Nov 1999

posted 10-04-2017 01:33 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
Under NASA's NextSTEP program, Bigelow Aerospace has been contracted to develop and test a prototype of XBASE (Expandable Bigelow Advanced Station Enhancement), a 330 cubic meter expandable habitat and test platform for deep space hardware.

Headshot
Member

Posts: 688
From: Streamwood, IL USA
Registered: Feb 2012

posted 10-04-2017 07:19 PM     Click Here to See the Profile for Headshot   Click Here to Email Headshot     Edit/Delete Message   Reply w/Quote
Any time frame on the XBASE deployment?

Robert Pearlman
Editor

Posts: 38392
From: Houston, TX
Registered: Nov 1999

posted 10-04-2017 07:53 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
Presently, XBASE is only contracted as a ground-based prototype, though Bigelow has proposed launching the larger test module as part of NASA's call for ideas for commercial uses of the space station's unused berthing ports.

Robert Pearlman
Editor

Posts: 38392
From: Houston, TX
Registered: Nov 1999

posted 12-05-2017 10:18 AM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
NASA release
NASA Extends Expandable Habitat's Time on the International Space Station

The Bigelow Expandable Activity Module, known as BEAM, will remain attached to the International Space Station to provide additional performance data on expandable habitat technologies and enable new technology demonstrations. NASA awarded a sole-source contract to Bigelow Aerospace to support extension of the life of the privately-owned module, and its use to stow spare space station hardware.

Above: ESA astronaut Paolo Nespoli completes some tests in the Bigelow Expandable Activity Module, or BEAM, on the International Space Station. (CREDIT: ESA/NASA)

After NASA and Bigelow successfully completed collaborative analyses on BEAM life extension and stowage feasibility, astronauts began the process to provide additional storage capability aboard the station by removing hardware used for the initial BEAM expansion. They then converted sensors that monitor the BEAM environment from wireless to wired (to prevent interference from future stowage items on transmission of sensor data). Next they installed air ducting, netting, and large empty bags to define the stowage volume for hardware inside BEAM.

NASA and Bigelow later will likely add a power and data interface to BEAM, which will allow additional technology demonstrations to take place for the duration of the partnership agreement.

This new contract, which began in November, will run for a minimum of three years, with two options to extend for one additional year. At the end of the new contract, the agency may consider another extension or could again consider jettisoning BEAM from the station.

The space inside BEAM will hold up to 130 Cargo Transfer Bags of in-orbit stowage. Long-term use of BEAM will enable NASA and Bigelow to gather additional performance data on the module's structural integrity and thermal stability and resistance to space debris, radiation, and microbial growth, to help NASA advance and learn about expandable space habitat technology in low-Earth orbit for application toward future human exploration missions. Using BEAM for stowage will free up about 1.87 cubic feet (0.53 cubic meters) of space in other station modules for research.

NASA's use of BEAM as part of a human-rated system allows Bigelow Aerospace to demonstrate its technology for future commercial applications in low-Earth Orbit. Initial studies have shown that soft materials can perform as well as rigid materials for habitation volumes in space and that BEAM has performed as designed in resistance to space debris.

BEAM launched on the eighth SpaceX Commercial Resupply Service mission in 2016. After being attached to the Tranquility Node using the station's robotic Canadarm2, it was filled with air to expand it for a two-year test period to validate overall performance and capability of expandable habitats. Since the initial expansion, a suite of sensors installed by the crew automatically take measurements and monitor BEAM's performance to help inform designs for future habitat systems. This extension will deepen NASA's understanding of expandable space systems by making the BEAM a more operational element of the space station to be actively used in storage and crew operations.

Space station crew members have entered BEAM more than a dozen times since its expansion in May 2016. The crew has conducted radiation shielding experiments, installed passive radiation badges called Radiation Area Monitors, and routinely collect microbial air and surface samples. These badges and samples are returned to Earth for standard microbial and radiation analysis at the Johnson Space Center.

lspooz
Member

Posts: 334
From: Greensboro, NC USA
Registered: Aug 2012

posted 12-05-2017 11:42 AM     Click Here to See the Profile for lspooz   Click Here to Email lspooz     Edit/Delete Message   Reply w/Quote
Just don't get too comfortable.

(Shameless plug for local artist, and timely.)

Headshot
Member

Posts: 688
From: Streamwood, IL USA
Registered: Feb 2012

posted 12-05-2017 02:23 PM     Click Here to See the Profile for Headshot   Click Here to Email Headshot     Edit/Delete Message   Reply w/Quote
I have not seen any exterior images of BEAM since its inflation. Can someone direct me to a recent one?

Robert Pearlman
Editor

Posts: 38392
From: Houston, TX
Registered: Nov 1999

posted 12-05-2017 02:55 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote

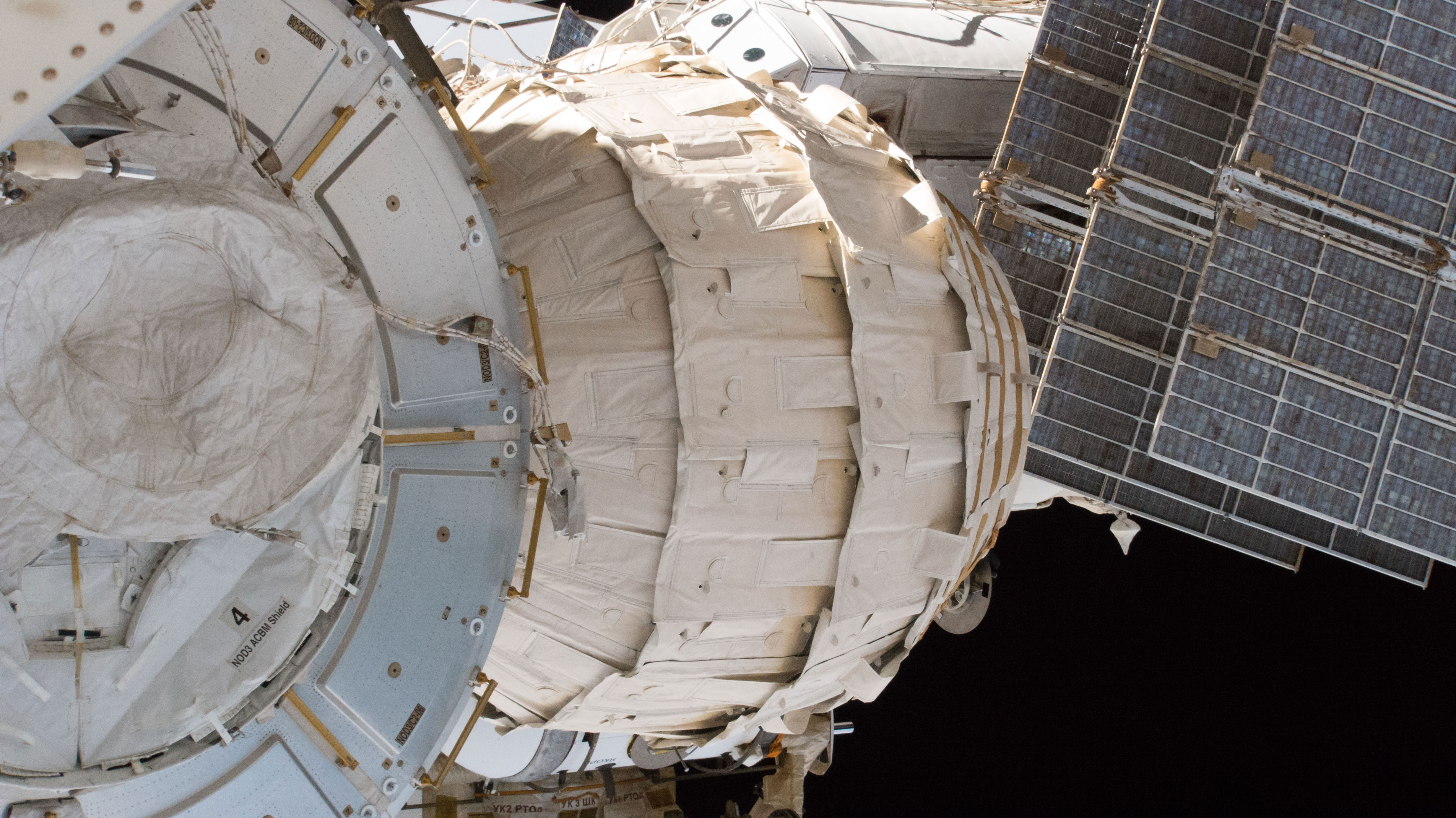

This photo is from April 2017:

Headshot
Member

Posts: 688
From: Streamwood, IL USA
Registered: Feb 2012

posted 12-05-2017 03:18 PM     Click Here to See the Profile for Headshot   Click Here to Email Headshot     Edit/Delete Message   Reply w/Quote
Thanks Robert.
