Author Topic:   Replica space shuttle HUD switch panel (MK1)
spacefan JC
Member

Posts: 85
From: UK
Registered: Jun 2010

posted 08-03-2011 08:16 AM     Click Here to See the Profile for spacefan JC     Edit/Delete Message   Reply w/Quote

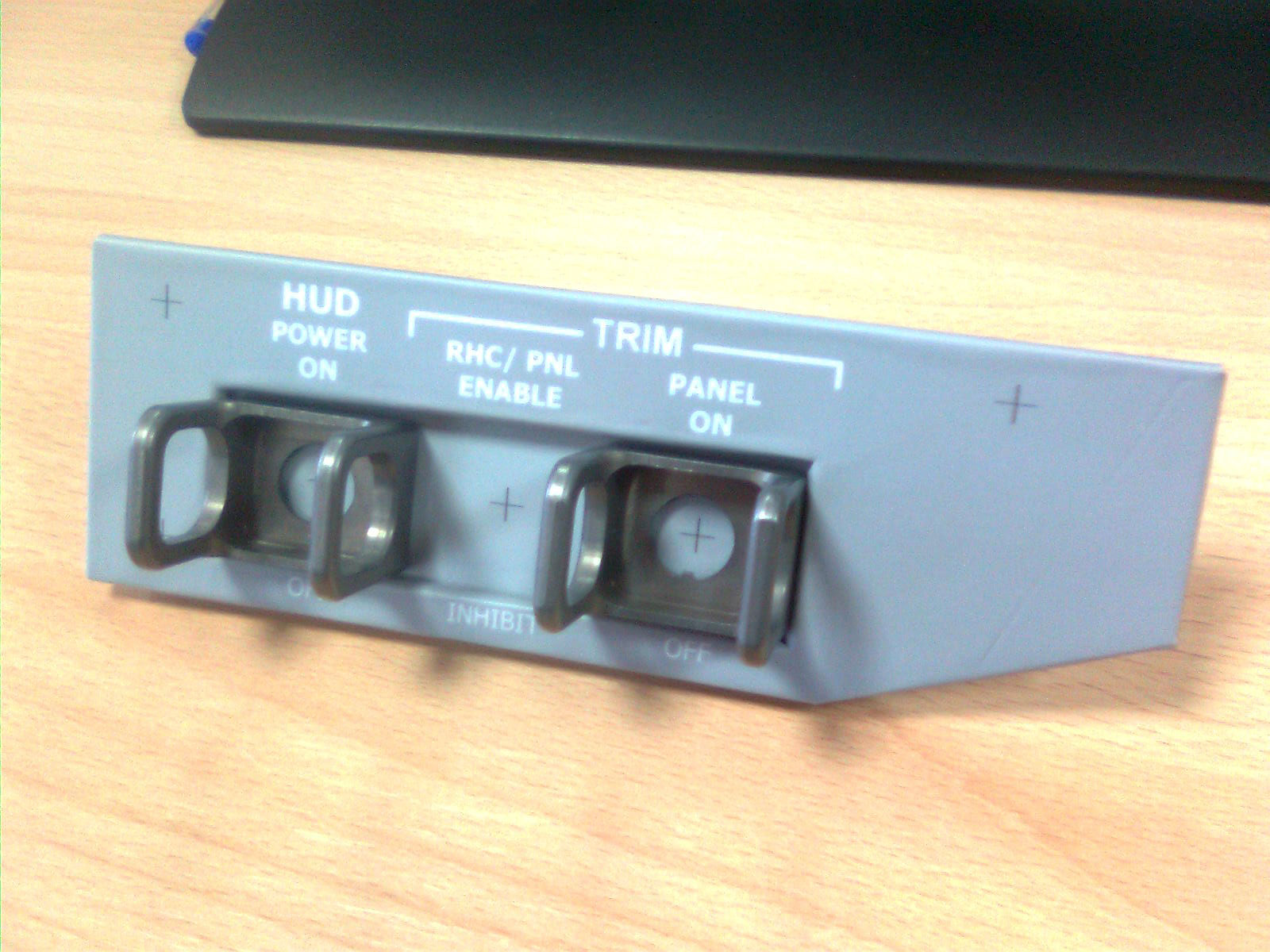

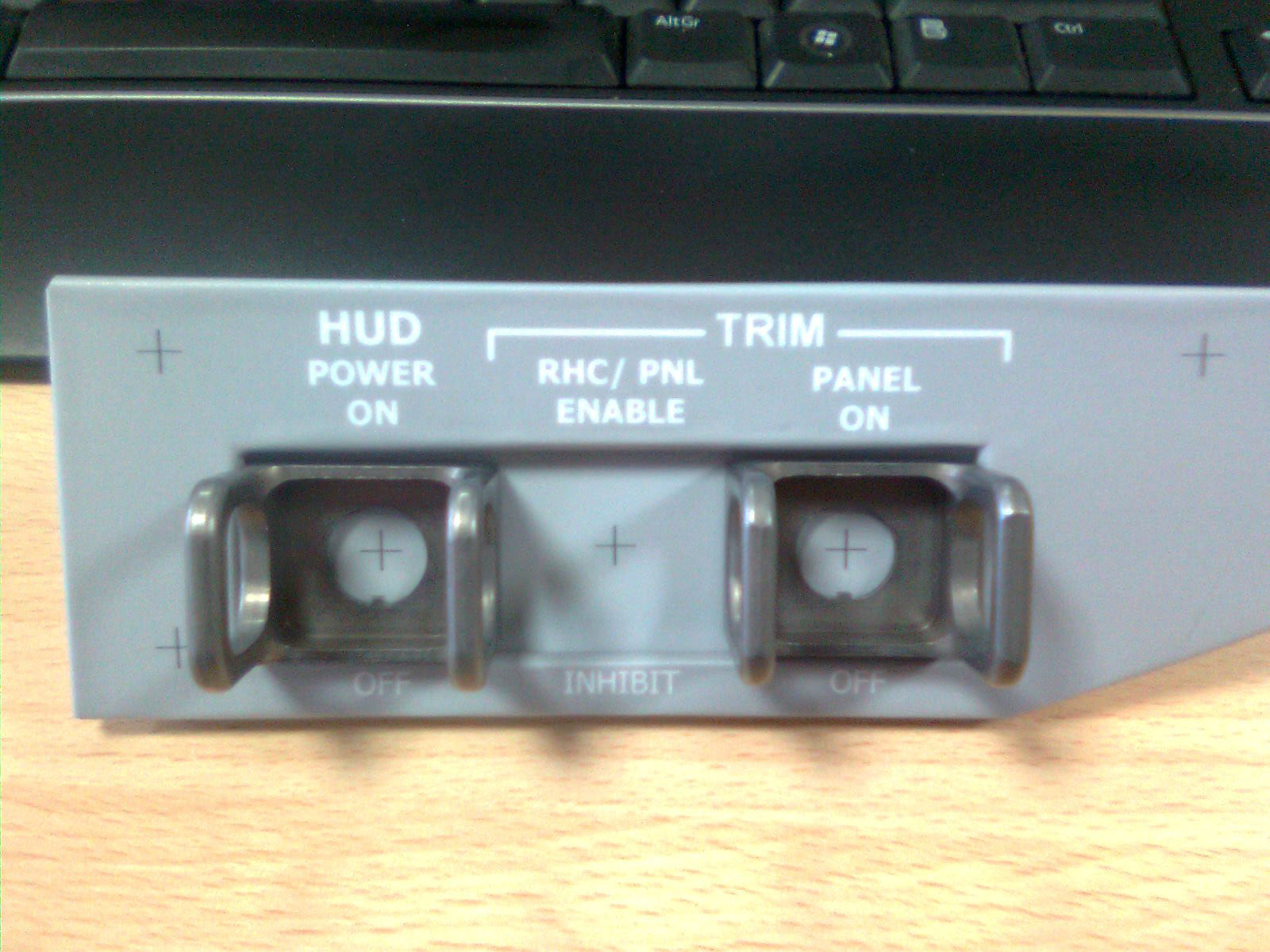

Here is the result of a couple of hours tinkering. This is based on a pdf I found on the web and cockpit photos. I accept that the dimensions are slightly out, the font isn't perfect and the grey is not right, but I'm quite happy with the result.

Initially I was going to cut down aluminium or steel sheet and get it screen printed (£60), but I found a much cheaper option in my graphics dept! The image is printed on sticky back laminated plastic and then stuck over cut foam board.

Switch Guards are from Historic Space Systems, and as I only had two I chose this panel!

Really having trouble finding switches which are remotely similar, so I have left the holes blank for now.

garymilgrom
Member

Posts: 1597
From: Atlanta, GA, USA
Registered: Feb 2007

posted 08-03-2011 09:20 AM     Click Here to See the Profile for garymilgrom   Click Here to Email garymilgrom     Edit/Delete Message   Reply w/Quote
Nice work! Are you planning a replica of any particular workstation in the cockpit?

spacefan JC
Member

Posts: 85
From: UK
Registered: Jun 2010

posted 08-03-2011 09:42 AM     Click Here to See the Profile for spacefan JC     Edit/Delete Message   Reply w/Quote
As I only have two switch guards I picked a nice small panel to start with.

Drawings were done in Visio as I don't have access to a scale drawing package. I printed enough to make three on an A4 sheet (the next to have bold text under the switches) and still intend to cut down a sheet of metal to make a more heavyweight version. As a proof of concept, I think it works nicely! Just need to find some switches!

Is there illumination on this panel? I'm going to try to sandwich some acrylic sheet between the facia and the switch panel, and connect up an LED. Some photos I have seen have a red ring around the switches, but I'm not sure if this is just camera flare. If anyone has a decent close-up, I’d appreciate it!

ilbasso
Member

Posts: 1500
From: Greensboro, NC USA
Registered: Feb 2006

posted 08-03-2011 11:36 AM     Click Here to See the Profile for ilbasso   Click Here to Email ilbasso     Edit/Delete Message   Reply w/Quote
If you'll send me your email address, I can send you some photos of the interior of the Shuttle simulator at JSC under night conditions... Short answer is that the switches do not appear to be illuminated, or at least they weren't when I was in the sim.

spacefan JC
Member

Posts: 85
From: UK
Registered: Jun 2010

posted 08-04-2011 09:54 AM     Click Here to See the Profile for spacefan JC     Edit/Delete Message   Reply w/Quote
Thanks for the pics. You were lucky to get that opportunity.

Can anyone help finding switches?

Sent a couple of emails to HSS, but I guess they are being binned by their firewall.

spacefan JC
Member

Posts: 85
From: UK
Registered: Jun 2010

posted 08-18-2011 06:00 AM     Click Here to See the Profile for spacefan JC     Edit/Delete Message   Reply w/Quote
OK. Stumped on the search for switches. Does anyone know the part number? Are they Honeywell or Eaton (or what became Eaton)?

I have looked every where for a toggle with a similar lever type to no avail. Help...

space1
Member

Posts: 513
From: Danville, Ohio, USA
Registered: Dec 2002

posted 08-18-2011 06:23 AM     Click Here to See the Profile for space1   Click Here to Email space1     Edit/Delete Message   Reply w/Quote
John, I apologize for taking so long to reply to your request for additional information.

The actual switches had been made by McGraw Edison of Manchester, New Hampshire. More recently they were made by Applied Resources.

I have seen examples of switches with similar handles sold by Cutler-Hammer/Eaton as part number 8906K3154, and Micro Switch as part number 23AT428, and 4TL154-50. These types of switches may still be available, but I have not checked for several years.

------------------
John Fongheiser
Historic Space Systems

spacefan JC
Member

Posts: 85
From: UK
Registered: Jun 2010

posted 08-18-2011 07:07 AM     Click Here to See the Profile for spacefan JC     Edit/Delete Message   Reply w/Quote
Thanks John. That gives me somewhere to look!

Ronpur
Member

Posts: 246
From: Brandon, Fl
Registered: May 2012

posted 08-23-2013 01:04 PM     Click Here to See the Profile for Ronpur   Click Here to Email Ronpur     Edit/Delete Message   Reply w/Quote
Did anyone ever find a switch to match those used on the shuttle?
