  Saturn V rocket onboard 16mm cameras

Post New Topic  Post A Reply
profile | register | preferences | faq | search

next newest topic | next oldest topic
Author Topic:   Saturn V rocket onboard 16mm cameras
holcombeyates
Member

Posts: 191
From: UK
Registered: Dec 2010

posted 01-17-2018 10:59 AM     Click Here to See the Profile for holcombeyates   Click Here to Email holcombeyates     Edit/Delete Message   Reply w/Quote
There would be so many iconic photos taken during the Apollo program. One of these shows the intertank structure between the Saturn first and second stages as it falls away from the ascending stack.

These photos are stills from 16mm cameras that were developed to hitch a ride on the early Saturn V unmanned launches when still in the atmosphere.

With the job done, the camera was catapulted out of its protective tube within the rocket stage with a burst of pressurised nitrogen gas and recovered from the sea.

I have a sketch of one of these cameras but have not seen any photos of one, or even seen one displayed in a museum. Can anyone shed any light on these amazing cameras?

Robert Pearlman
Editor

Posts: 39122
From: Houston, TX
Registered: Nov 1999

posted 01-17-2018 11:42 AM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
There are photos of the camera and its recoverable pod on the Wes Oleszewski's Growing Up With Spaceflight blog from 2015.
Did you ever wonder how that really cool onboard movie film of Saturn vehicles staging, or their LOX tanks draining got back to to Earth? Well, here's how it was done...

GACspaceguy
Member

Posts: 2263
From: Guyton, GA
Registered: Jan 2006

posted 01-17-2018 11:45 AM     Click Here to See the Profile for GACspaceguy   Click Here to Email GACspaceguy     Edit/Delete Message   Reply w/Quote

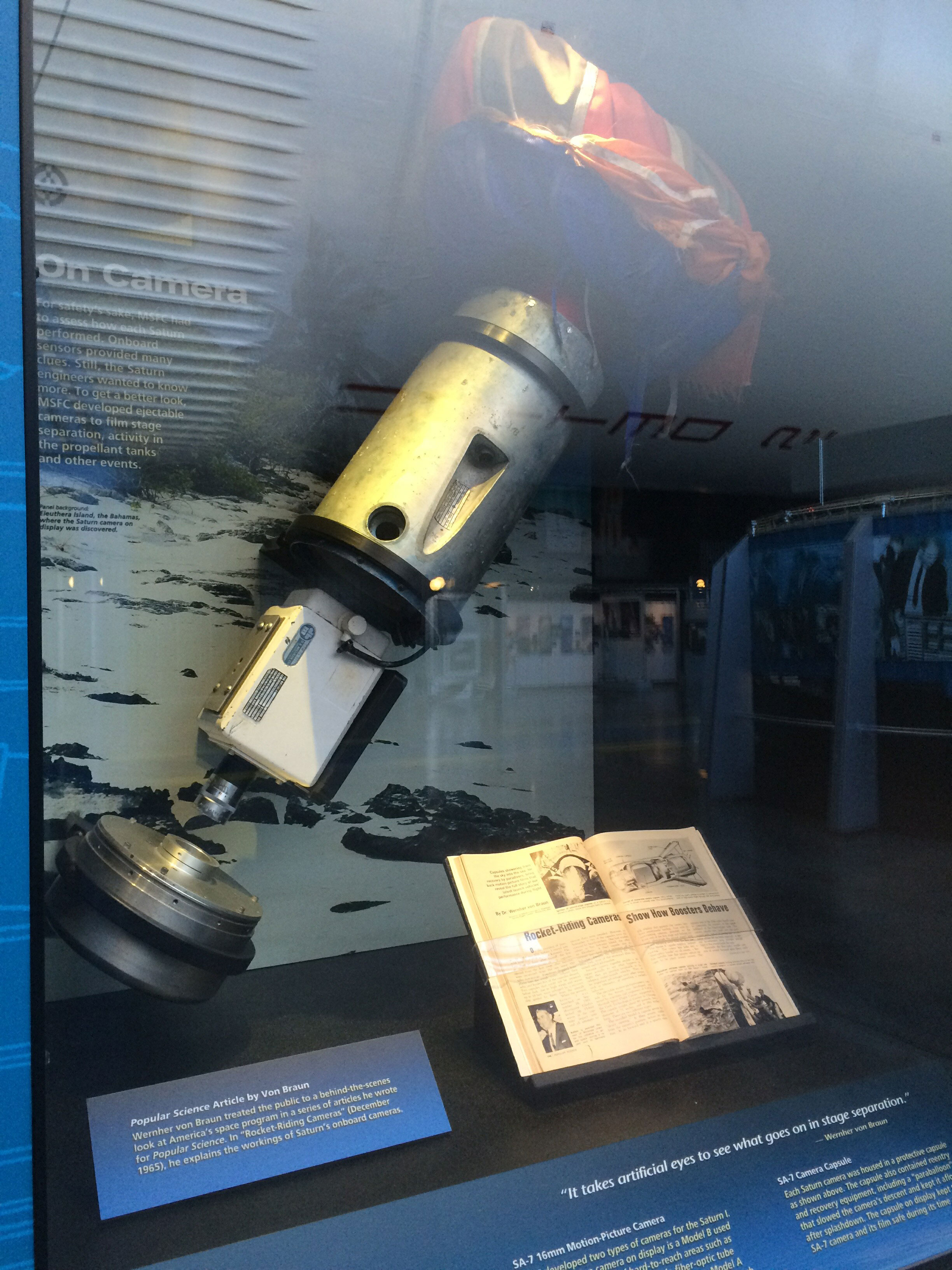

This photo was taken at the U.S. Space & Rocket Center in Huntsville, Alabama. The display shows a Popular Science magazine with an article written by von Braun, which can be found here online.

holcombeyates
Member

Posts: 191
From: UK
Registered: Dec 2010

posted 03-29-2018 03:28 AM     Click Here to See the Profile for holcombeyates   Click Here to Email holcombeyates     Edit/Delete Message   Reply w/Quote
I understand from a respected NASA scientist that on Apollo 6 that the one S-IC stage camera successfully recovered (from Pos I) yielded good quality film but the view was somewhat obscured by the firing of the S-II engines. Both S-II cameras were ejected but only that from Pos III was recovered, which produced the iconic images of skirt separation.

I have no idea at all as to the whereabouts of that S-IC camera footage. Can anyone help?
