Author Topic:   Thickness of Apollo heatshield stainless steel
Apolloman
Member

Posts: 148
From: Ledignan, Gard (30), France
Registered: Mar 2009

posted 11-14-2010 01:36 PM     Click Here to See the Profile for Apolloman   Click Here to Email Apolloman     Edit/Delete Message   Reply w/Quote
For information, I would love to know the thickness of the stainless steel plates forming the heat shield of the Apollo CM. If some kind soul could help me, thanks in advance.

SpaceAholic
Member

Posts: 4437
From: Sierra Vista, Arizona
Registered: Nov 1999

posted 11-21-2010 06:36 PM     Click Here to See the Profile for SpaceAholic   Click Here to Email SpaceAholic     Edit/Delete Message   Reply w/Quote

Apolloman
Member

Posts: 148
From: Ledignan, Gard (30), France
Registered: Mar 2009

posted 11-22-2010 02:29 AM     Click Here to See the Profile for Apolloman   Click Here to Email Apolloman     Edit/Delete Message   Reply w/Quote
Thanks, SpaceAholic.

A final service please (actually two) if you can have: The thickness of the honeycomb stainless steel and the remaining resin... (heat shield picture) and if you have, the thickness of the bulkhead (aluminum pressure wall). Thanks in advance.

SpaceAholic
Member

Posts: 4437
From: Sierra Vista, Arizona
Registered: Nov 1999

posted 11-22-2010 09:56 AM     Click Here to See the Profile for SpaceAholic   Click Here to Email SpaceAholic     Edit/Delete Message   Reply w/Quote

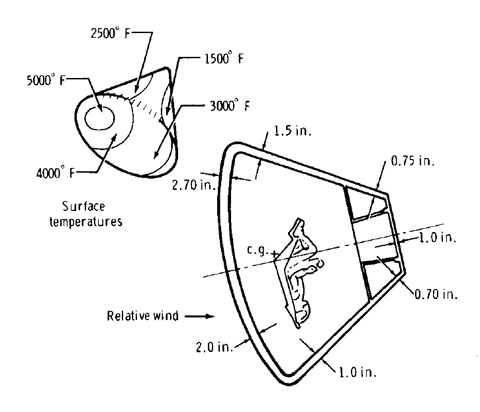

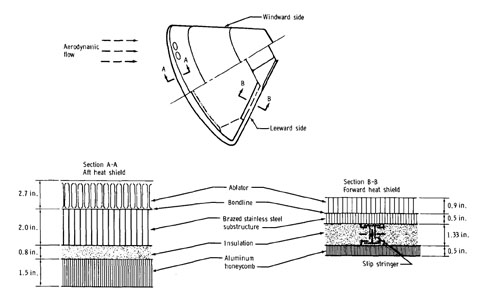

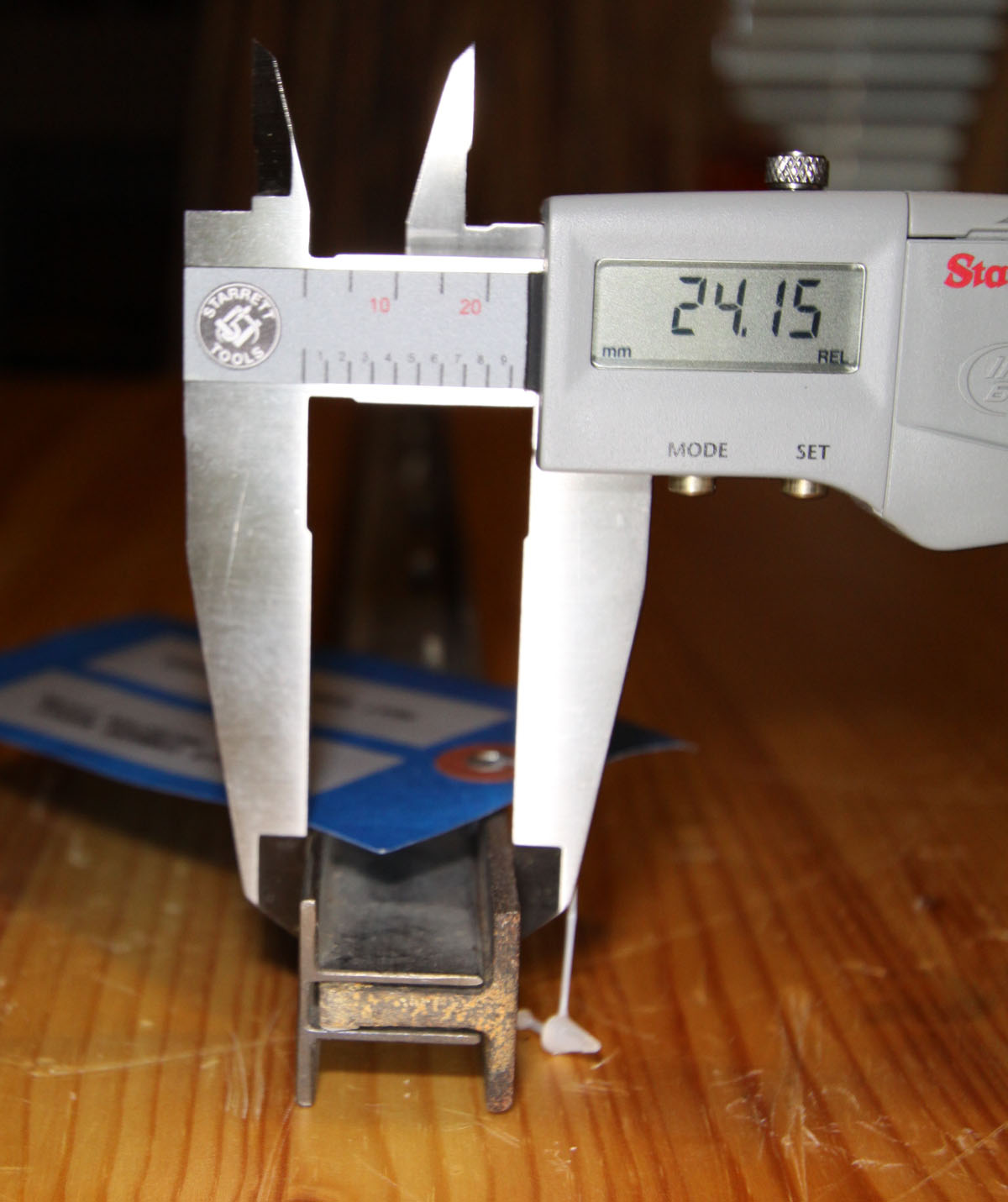

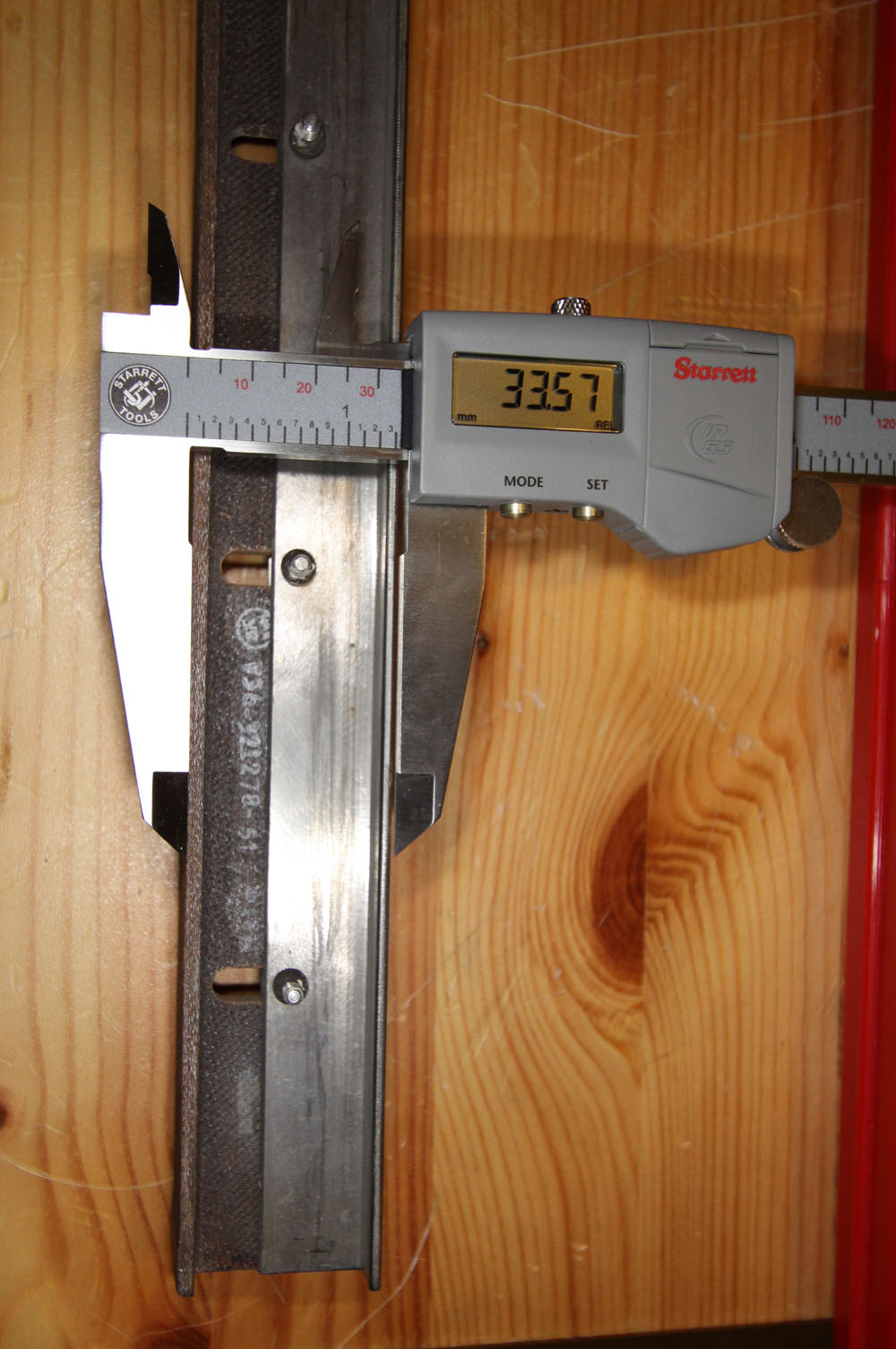

Pre-reentry thickness of the the ablator and supporting substructures varied across the spacecraft based on the anticipated local thermal environment..diagrams provide spot thicknesses. In addition (as shown in the drawing) the Crew Compartment heat shield incorporated Fiberglass "T" slip-stringers for strain relief - these had variable geometery; caliper measurements are provided for maximum expanded and contracted configurations in the last two images.

Apolloman
Member

Posts: 148
From: Ledignan, Gard (30), France
Registered: Mar 2009

posted 11-22-2010 10:56 AM     Click Here to See the Profile for Apolloman   Click Here to Email Apolloman     Edit/Delete Message   Reply w/Quote
Thank you very much. One last question I forget to ask you: the thickness of the honeycomb (I would say about 0.1 mm).

SpaceAholic
Member

Posts: 4437
From: Sierra Vista, Arizona
Registered: Nov 1999

posted 11-22-2010 11:32 AM     Click Here to See the Profile for SpaceAholic   Click Here to Email SpaceAholic     Edit/Delete Message   Reply w/Quote

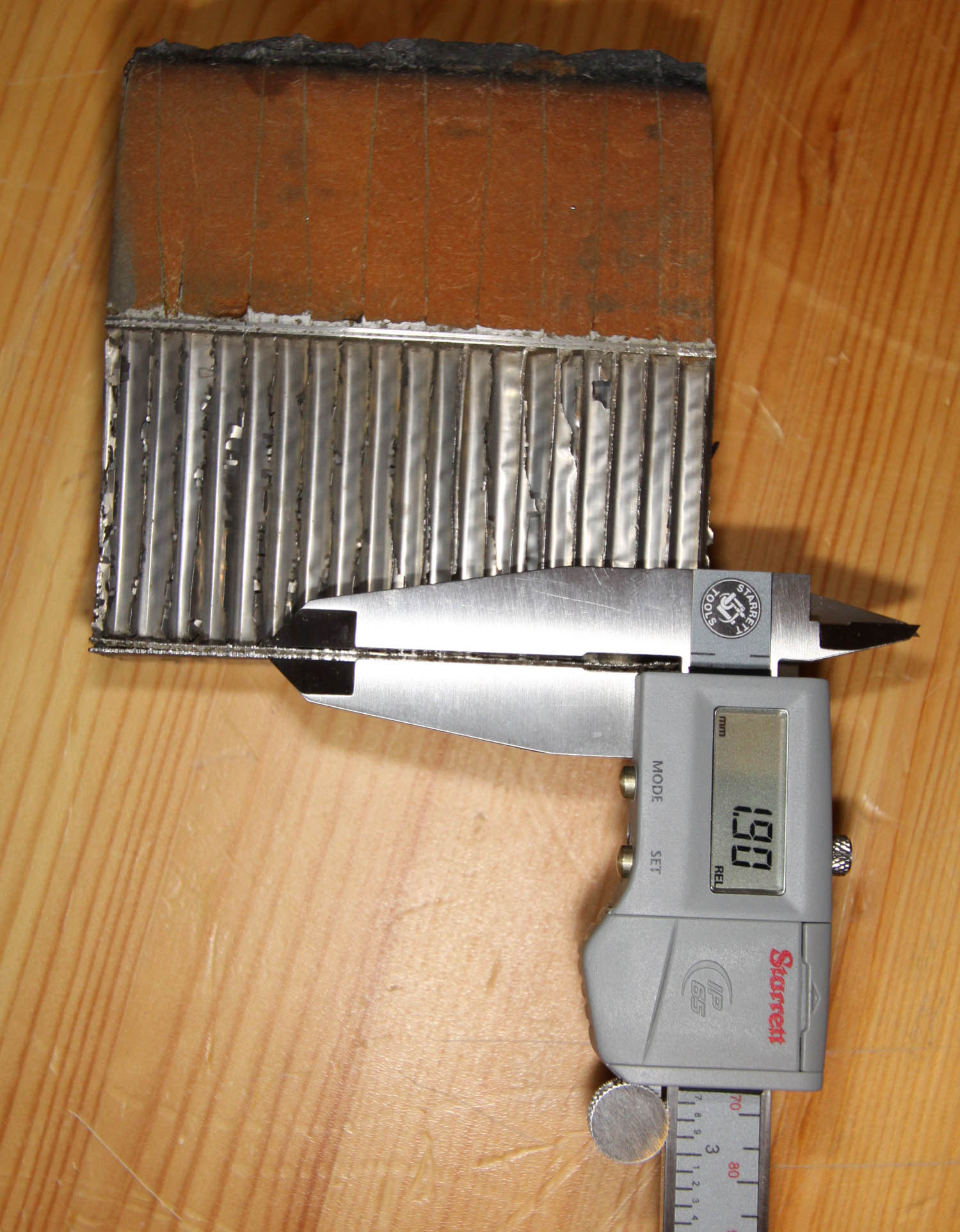

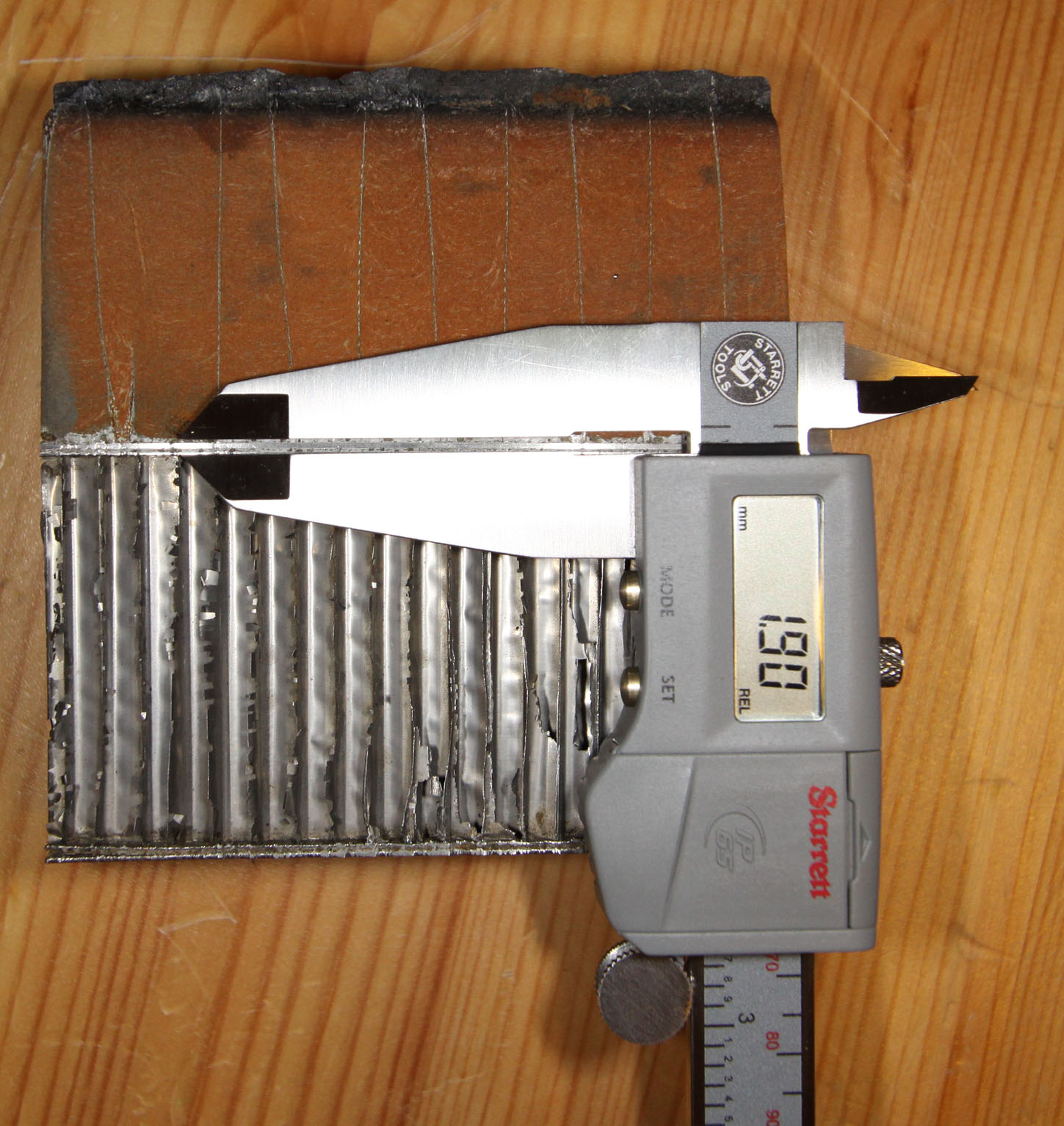

Thickness of the stainless honeycomb wall is ~.02 mm ; individual cell diameter ~5 mm.
