posted July 16, 2006 12:30 AM

Three retired astronauts and the former director of NASA's Manned Space Flight Program during the Apollo-era were among the dignitaries on-hand for the Third Annual Saturn/Apollo Reunion held Saturday at the U.S. Space & Rocket Center in Huntsville, Alabama.

Apollo astronauts Richard Gordon and Walt Cunningham along with Dr. George Mueller assisted during the event with the official groundbreaking for the new Saturn V Visitor Complex and Intermodal Center. The 43,200 square foot Saturn V Visitor Complex will eventually house Huntsville's Saturn V rocket, preserving it indoors for future generations to behold. The facility is scheduled to open next summer.

The Saturn V building will be located on the western section of USSRC's property adjacent to a standing replica of the Saturn V. The Saturn V Restoration Campaign has currently raised approximately $5.3 million of the project's $7.5 million goal.

The intermodal bus transportation (IBT) facility, which will allow visitors to unload from buses, vans, and cars, will be located adjacent to the Saturn V facility, becoming the new point of entry to the museum complex. The IBT building is funded separately from the Saturn V Restoration Project and will be paid for with a $12.9 million appropriation from the Federal Transit Administration.

In addition to Gordon and Cunningham, Skylab and shuttle astronaut Owen Garriott attended the festivities.

posted July 16, 2006 12:33 AM

Richard Gordon, Walt Cunningham, Dr. George Mueller and Konrad Dannenberg pose together during the U.S. Space & Rocket Center's third annual Apollo/Saturn Reunion on July 15 in Huntsville, Alabama.

posted July 16, 2006 12:50 PM

George Mueller, who eulogized the potential the nation lost when it abandoned the Saturn V (and referred to the groundbreaking as when the "turned the Earth for the crypt for the Saturn V") spoke highly of the Vision for Space Exploration: "If we as a nation will support that Vision, then I might live to see the first astronaut on Mars."

Dick Gordon gave a history of the Saturn V flight program, through Apollo to the launch of the last Saturn V, used to launch the Skylab workshop.
"I think they stole it from me and it was on [Apollo] 18, which I was supposed to fly.
"Did you do that, Owen?" he asked Garriott in the audience.
"Not me," Garriott replied.

Gordon praised the work of the Saturn V rocket team for the boosters perfect record: "No mission ever failed because of the great work you folks have done here."

Gordon also recalled an incident that occurred when he was a new Navy cadet -- Right after his class came in, someone spoke to them about how the nation was developing a space program, and someday soon people were going to be flying into space and to other worlds. The class thought it was interesting -- if perhaps farfetched idea -- but were far more concerned about the fact that they hadn't even been in an airplane yet.
That speaker was Wernher von Braun.

Since Gordon had spoken about his Navy affiliation, Cunningham was quick to note that his own introduction by Larry Capps had failed to mention that he was a Marine, but then added, "Actually, Larry, you could have just introduced both of us as 'ancient astronauts.'"

Cunningham recognized the German rocket team -- his "Deutsche Freunde" -- thanking them in their native language for their hard work. He told them, and the other members of the rocket team "You know something -- you did it right."

"Five hundred years from now, they're only going to remember one thing about the 20th century," he said -- that it was the first time human beings left their home planet.

On the Vision for Space Exploration, Cunningham said, "A major role in that program is going to be the Marshall Space Flight Center once more. And that's a major thing to have going for the program to go to the moon, Mars and beyond."

posted July 16, 2006 10:24 PM

If you look closely, you can see the yellow blobs to the left of the tent, which are the various earth movers working on the project.

I got the impression that Owen Garriott just "dropped by;" his name did not appear in the program, he was not officially part of the festivities (although he was acknowledge by several speakers), and he sat in the "cheap seats" during the groundbreaking -- not in the reserved seat section.

posted March 10, 2007 10:31 AM

quote:

---

Going Up!

The steel framework for the new Saturn V Visitors Center at the U.S. Space & Rocket Center started going up this week. In fact, the first massive piece of steel was hoisted into place Wednesday afternoon. Since then, what will become the frame for the giant building has already begun to take shape.

"It's exciting. We've been waiting years for this day to arrive," says Space Center CEO Larry Capps. "From this point on, the progress is going to be quite obvious," he added.

Covering more than 68,000 square feet, the Saturn V Visitors Center will stand over six stories tall, 476 feet long and 90 feet wide. It will eventually house Huntsville's own Saturn V rocket vehicle, one of only three remaining in existence. The aging rocket has been lying on display at the back of the Space Center's Rocket Park since the facility opened in 1970. The rocket underwent restoration last year in anticipation of eventually being moved indoors to be preserved for future generations.

The next eagerly anticipated milestone will be the actual relocation of the rocket to its new indoor home, scheduled for July. The various upper stages will be moved aside to allow for the massive first stage to be gently eased into place, followed by the second and third stages. The remainder of the building will be completed around the rocket. Because the rocket vehicle will be displayed at least ten feet above floor level, the new building will also provide much needed and very unique special events and conference space.

However, the most eagerly anticipated milestone in the project is its completion and the ribbon-cutting ceremony for the new facility, scheduled for November. "You can expect a grand opening event unlike anything Huntsville has seen in many years," according to Capps.

The opening of the Saturn V Visitor's Center will complete a monumental year for the U.S. Space & Rocket Center and Space Camp¨, which is celebrating its 25th anniversary in June. The program is also expecting to graduate its 500,000th trainee in late spring or early summer.

---

posted March 10, 2007 10:32 AM

I stand in awe each time I see the Saturn V at KSC. What an amazing sight.

I continue to dream.

posted March 10, 2007 07:05 PM

The upright Saturn V you see in the photos is a replica, which is permanently on upright display. The real-hardware Saturn V that the thread is about is a different one in the same display area, that lays on its side similar to the one at JSC. It will eventually look similar to the one now at KSC, displayed on its side but hung above the floor.

There's an image earlier in this thread of how the two should eventually look next to each other.

posted March 10, 2007 08:28 PM

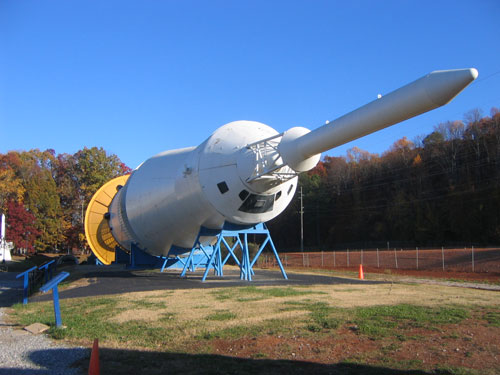

the genuine-hardware Saturn V, taken on my visit last November:

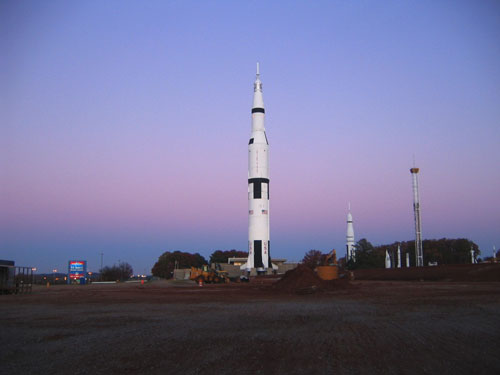

the Saturn V upright replica:

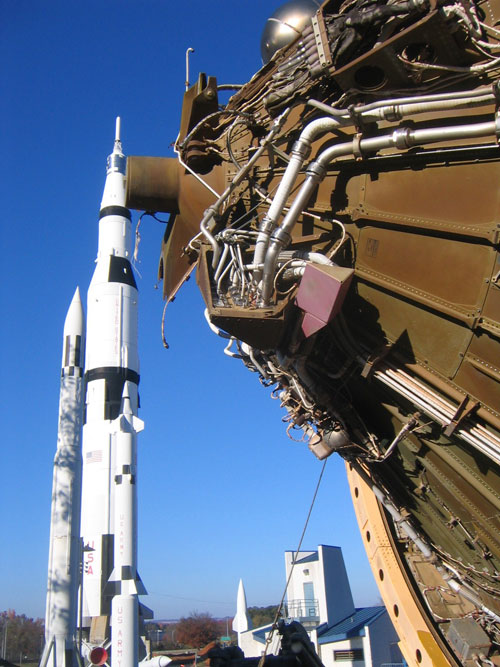

Both of them in the same shot:

posted March 11, 2007 12:26 AM

quote:

---

Originally posted by David:
Well, to be nitpicky, a Saturn I, rather than a IB, but the point remains valid.

---

posted March 11, 2007 08:14 AM

quote:

---

Originally posted by mdmyer:
Does anyone know if the Saturn V will still be upright in early June? Miranda and I plan on visiting Huntsville before the Cape show.

---

You can check on what the Saturn V Center and the Saturn V look like at any time by clicking the "webcam" link on the main savethesaturn.com, page or by going directly to their webcam page.

posted December 08, 2007 10:00 AM

First, a few notes about the new building. If you're coming in from I-565 westbound and park in the east parking lot, you can't see the new building at all. I recommend this approach, frankly, because walking west, around the "SR-71" will give you a dramatic reveal of the structure. It's Big. Real Big. And the windows on the end looking into those 5 F1's were absolutely the best choice they could've made, because the experience is jaw dropping.

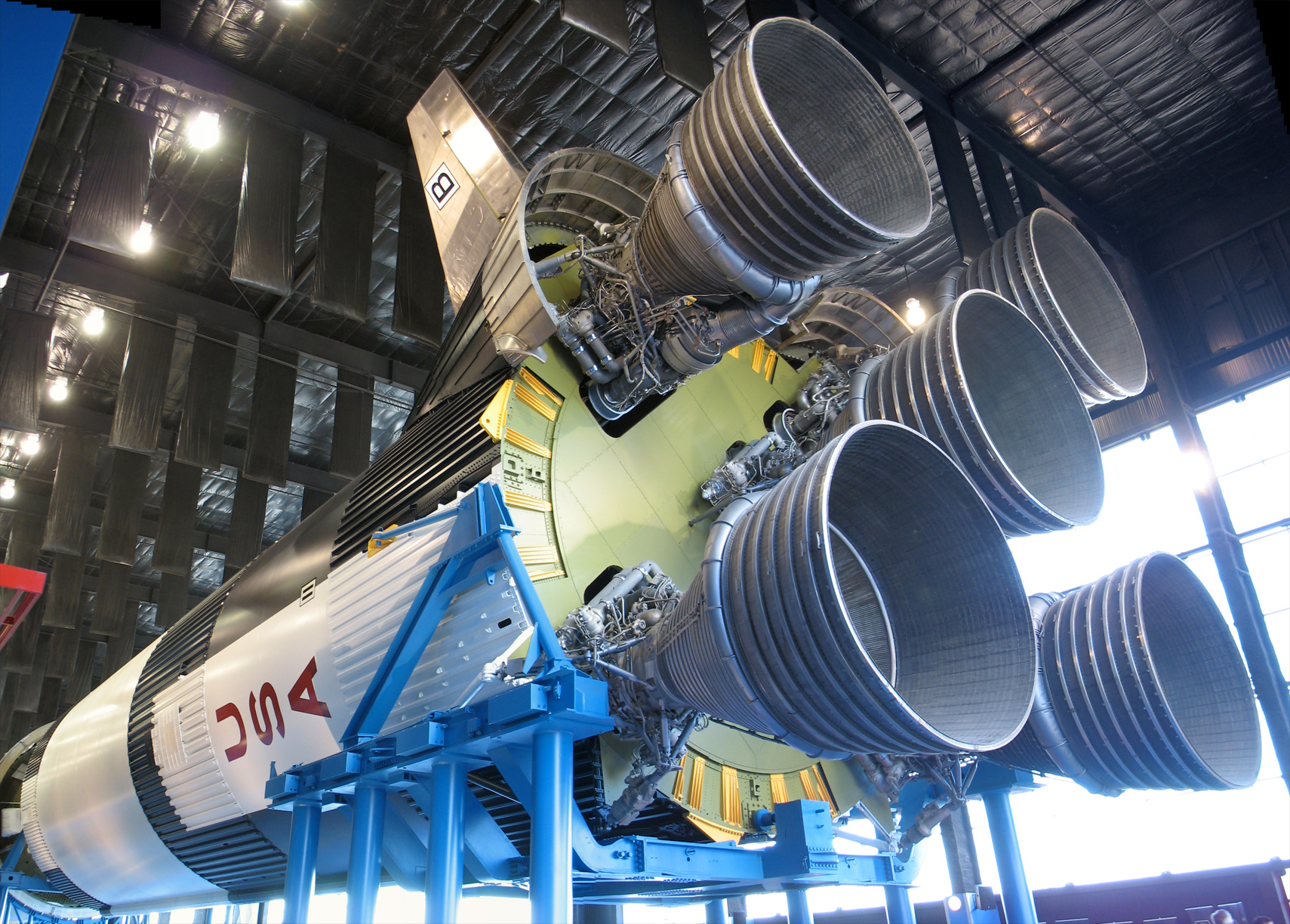

The webcam shows you the S-IC, but there's nothing to show you the other end of the display. My girlfriend and I had the opportunity, when we were in Huntsville for Thanksgiving, to run up the length of the new building, and rectify that situation.

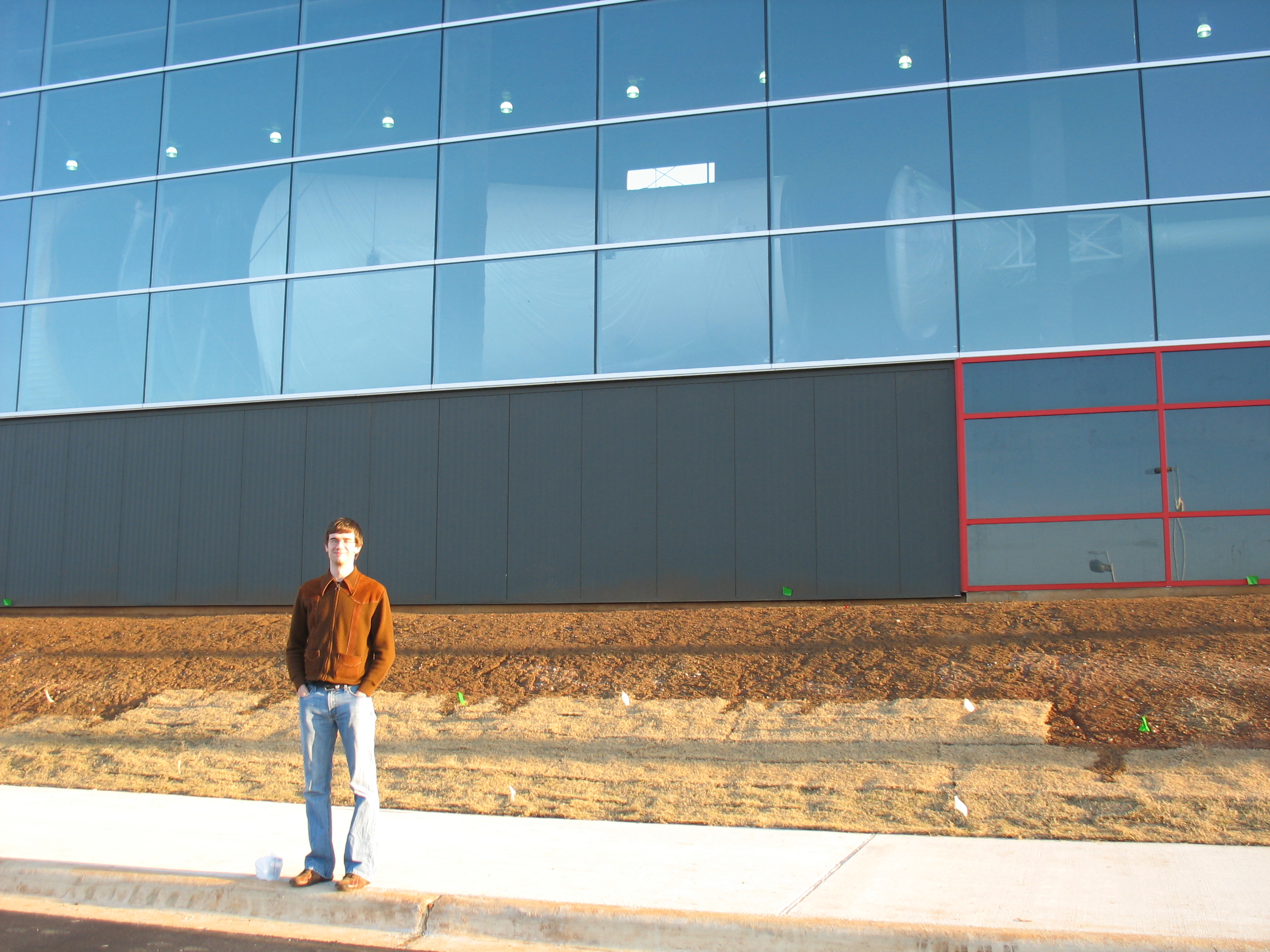

Here's a link to a hi-res photo of yours truly doing a little harmless trespassing*. You can see the top of the S-IVB, the SLA/SM, and CM/LES all suspended. The display is mind-blowing, and I plan to be there on 1/31/2008.

posted March 14, 2007 07:56 PM

quote:

---

Time lapse camera recording construction of Saturn V Visitor’s Center at USSRC

When the ribbon is cut on Huntsville's new Saturn V Visitor's Center at the U.S. Space & Rocket Center later this year, guests will have the opportunity to watch the entire construction phase of the project in just a matter of seconds. Last year, the Center installed a time lapse camera in the construction area to record the building going up and the massive Saturn V rocket vehicle being moved into its new home.

"It'll be like watching the building rise up out of the ground," said Space Center CEO Larry Capps. He adds, "And now that the steel is going up, each shot the camera takes is slightly different from the previous shot."

The camera is set to shoot a new image, or frame, every 60 seconds. As the still images are converted to video, it will take 30 frames to make one second of video. In other words, using all of the frames, it would take 2 seconds to watch one hour's work, but not all of the frames will be used in the final edit.

The camera, a high-quality digital still image camera, can be operated by remote control allowing Center personnel to adjust the exposure and shooting interval from the main building. A second camera, a web-based video camera, can be viewed by the general public, allowing anyone with internet access to watch the construction live.

In July, when the Saturn V rocket vehicle is moved into the unfinished building, the Center will use several cameras to catch the historical event from various angles. Those images will be incorporated into the time lapse project. "Ultimately, we want to be able to see every aspect of the rocket's journey because we don't plan to ever move it again," Capps said.

The end result will be a five-to-six minute video depicting the construction of the new facility and its new inhabitant being moved into place. The time lapse video will premiere in conjunction with the grand opening of the Saturn V Visitor's Center.

---

posted April 13, 2007 09:54 AM

quote:

---

A Huntsville couple have committed to buying the right to name the Saturn V exhibition hall and visitors center under construction at the U.S. Space & Rocket Center.

Space Center CEO Larry Capps said he can't identify the couple yet but said it would be their name on the building, which is expected to open in November. He expects to be able to release their name and details about their plans in a few weeks.

"The couple has been very significant in the missile and space industry and in a multitude of philanthropic projects in this town," Capps said Thursday.

---

posted July 10, 2007 12:02 AM

quote:

---

Workers will begin moving the massive Saturn V rocket vehicle from its perch of almost 40 years in Rocket Park at the U.S. Space & Rocket Center to its new home inside the Davidson Saturn V Center Tuesday morning at 9:30 a.m. The move, dubbed "Rocket Roll", represents a major milestone in the four year effort to restore and preserve the artifact for many future generations.

Plans call for the third stage of the Saturn V to be moved to a holding area west of the Davidson Saturn V Center, currently under construction to permanently house the rocket vehicle and other artifacts related to the Saturn and Apollo programs. Workers will then move the first stage, the largest of the major components, into the new building, followed by the second and third stages. All three stages are expected to be in place in time for the Fourth Annual Saturn/Apollo Reunion scheduled for Friday, July 13th.

Local officials, including Marshall Space Flight Center Deputy Director Robert Lightfoot Jr., along with former NASA astronaut and member of the NASA Advisory Council Dr. Owen K. Garriott, will "launch" the Saturn V on its final journey during a brief pyrotechnic and audio presentation. Admission to Rocket Roll, sponsored by Accenture, is free and open to the public.

Scheduled for grand opening on January 31, 2008, the Davidson Saturn V Center will become the new "front door" for the U.S. Space & Rocket Center, housing the Visitor Ticketing Area, a 350-seat auditorium, the Saturn V Rocket Vehicle and a 42,000-square-foot exhibit space to showcase the history of the Saturn program and demonstrate how lessons learned during the Apollo program are affecting design and engineering decisions today. In order to present the full story, the exhibits in the Saturn V Gallery will also show the evolution of propulsion systems from the Saturn V to the shuttle and how that technology is being adapted to the Ares rocket vehicle system.

Completion of the 68,200-square-foot Davidson Saturn V Center is the first stage in a USSRC plan to better showcase NASA and Marshall Space Flight Center (MSFC) contributions to historical, current, and future space exploration.

---

posted July 10, 2007 12:12 PM

The new Center should make for an exciting presentation as is the Apollo Saturn V center at KSC. I was just curious, if I read the location from the web cam correctly, as to whether the grave site of Miss Baker was effected in the construction?

posted July 10, 2007 06:39 PM

Miss Baker's gravesite is on the other side of the main building from where all the moving is taking place. It should not be affected at all.

posted July 11, 2007 06:44 AM

quote:

---

At a decidedly slower pace than it once knew, the rocket that took astronauts to the moon has launched again.

The rocket's speed Tuesday morning was about half a mile an hour, on the back of a KAMAG transport truck, headed for its new home in the still-under-construction $22.5 million Davidson Saturn V Center at the U.S. Space & Rocket Center.

---

posted July 12, 2007 08:50 AM

quote:

---

The slow Saturn V parade continues at the U.S. Space & Rocket Center, where the first stage of the historic rocket to the moon can already be seen under the roof of its new home.

The area's badly needed rainfall has so far not delayed the "Rocket Roll," said CEO Larry Capps during a meeting of the Alabama Space Science and Exhibit Commission Wednesday afternoon.

---

posted July 17, 2007 08:00 PM

I've liked the space program since I was a young child -- I have pictures of the cake from my second birthday, with a rocket and astronauts on it.

I never got the chance to see a Saturn V move on its own. Piecing together information I remember as a child with facts I know as an adult, the closest I ever came to seeing a Saturn V launch was Apollo 17. I had just turned five, and I was going to be able to stay up late to watch the launch (which would have been around 8:30 pm). Unfortunately, there was a hold and my parents sent me to bed.

Since Kennedy moved their Saturn V into a building years ago and Johnson just finished putting a building around their Saturn V last year, I figured that this would my last opportunity to see a Saturn V move. Ever since attending the groundbreaking last year when I spoke with Larry Capps (CEO of the USSRC) and he said that the move was expected to take only three or four days, I knew I had to be there for it.

I used the "contact us" link on the web site to get periodic updates on the move; eventually, the move was set for July 10-13, with the Saturn/Apollo
Reunion scheduled for July 13.

I got a bit of a scare in the middle of June. I check the webcams on savethesaturn.com every morning. One morning I saw that the service module/SLA combination had been moved to the lot behind the Saturn V Center. I half expected that the contractors would slip on their schedule and wind up moving it late -- I never expected that they'd move it early! I tried emailing my regular contact, but she didn't respond in her usual prompt manner.

I called the USSRC's main number and was forwarded around from one person to another ("Someone told you I'd know something about the Saturn V move? No, not me. Maybe try ..."). Eventually, someone told me to try "Cliff" and gave me his extension.

I got through to "Cliff". He was very friendly and we chatted for a good 15 or 20 minutes, both about the Saturn V move and about space artifacts and the USSRC in general. He told me that they'd moved the SLA so that they could make site improvements necessary to move the first and second stages, and assured me that the move would not take place until July 10. After I hung up the phone, I Googled "Cliff," only to find out that he was Cliff Broderick, COO of the USSRC!

So, we drove down to Huntsville on Monday July 9 so that we could see the Saturn V in its "pre-moved" location one last time. There were a couple of people working on the Saturn when we got there, and a number of folks in business attire were there observing. One of the fellows had a "Cliff Broderick" ID badge, so I began to introduce myself, saying that I was from Wisconsin and had spoke with him about three weeks earlier. Before I could get my name out, he said, "You must be Mike."

I was soon to find that this sort of "southern hospitality" is indicative of the staff at the USSRC.

posted July 17, 2007 08:01 PM

We arrived a bit early to again survey the state of the Saturn. We found that since the museum closed the previous night, the crew had removed the wheels from the S-IC carrier (the first stage was displayed on the same transporter used to move it around during manufacturing, testing, and delivery). We later found out that they were working until midnight.

The S-IC had been jacked up some eight or nine feet into the air and was resting on what we likened to "Jenga blocks," jacks made of some sort of African hardwood.

The ceremony was to be held under a tent erected for the occasion; it's a good thing, too, because the dreary weather soon turned into heavy rain.

The ceremony was fairly short, emceed by USSRC CEO Larry Capps. A representative of the ceremony's corporate sponsor (Accenture) spoke, as did an official from Marshall and astronaut Owen Garriott.

Then they played the last minute or so of the Apollo 11 countdown. Once the countdown got sufficiently far along, we found out that the sponsor had sprung for some very powerful subwoofers, and at T-0, smoke began drifting out of the S-IC's F-1 engines.

posted July 17, 2007 08:05 PM

Jackie is very friendly and introduced herself right away. She's very knowledgeable about space-related topics; she used to drive a USSRC tour bus over to Marshall and knows several astronauts, and we all chatted while the work men continued working on the S-IC. Al had a lot of stories to tell, both about the USSRC and about his various media-related jobs. Konrad, well, is Konrad Dannenberg! He also kept a watchful eye on "the most important part" of the Saturn.

The crew rearranged the jacking and positioned the crawlers under both the aft and forward ends of the S-IC.

The crawlers are certainly impressive pieces of machinery. They have six sets of wheels, each of which can be individually steered and positioned vertically. The aft crawler was double-wide (apparently two crawlers which had been mechanically and electrically fastened together), while the forward crawler consisted of a single unit.

While they had laid a good layer of gravel as part of the site improvements, the rain was causing some of the wheels on the crawler to slip, so they wound up putting down steel plating and plywood to form a more stable surface.

While one group of workers began lashing the S-IC to the crawlers, another group began jacking up the S-II stage.

The second stage, unlike the S-IC, was not on its original transporter. While it still had its forward handling ring on it, both the forward and aft ends of the stage rested on shallow cradles, and were clamped to the cradles.

The process of jacking up the stage consisted of digging out a hollow spot under the cradle so that they could insert a hydraulic ram. The hydraulic cylinder extended out the bottom of the ram, and the crew inserted the "Jenga blocks" underneath. They retracted the cylinders, repositioned the rams so that the cylinder would rest on the jacking ties, and repeated the process.

Somewhere along the line, Irene Willhite, curator of the USSRC, came out to observe the activities. Irene was also very friendly and we had a great time chatting with her.

And so Tuesday, July 10 ended without either the S-IC or S-II moving.

posted July 17, 2007 08:06 PM

The S-IC began moving about 8:10. Each crawler had its own operator, who controlled the crawler via a chest-mounted console. They backed the S-IC up several feet to get a bit more clearance between it and the S-II stage. Then, showing off the capabilities of the crawlers, they pivoted the forward crawler about 90 degrees. It pivoted in place -- the booster never moved.

posted July 17, 2007 08:07 PM

... past the Skylab mockup ...

posted July 17, 2007 08:08 PM

... where the reversed direction and started moving into the building

After the S-IC had gone far enough "around the bend," everyone scrambled from the west side of the grounds back toward the museum (located on the east side of the grounds), through the museum, out the front entrance, and down into the lower parking lot so we could once again see the stage.

A gate leading to the Saturn V Center was open, and we just went through the gate and up toward the building, still keeping what we considered a respectful distance. We did not go unnoticed, however, and since we did not have hardhats or steel-toed boots, some construction managers shooed us away to what they considered a "minimum safe distance."

posted July 17, 2007 08:09 PM

Of course, they couldn't actually do much with the S-II while the crawlers were still supporting the S-IC stage.

I went out to the Saturn V Center throughout the day, checking on the progress of the S-IC. Some time between 3:15 and 4:00, they moved it into its final position. I later overheard that they used a laser positioning system to determine where the S-IC should lay; they were originally off by 1/3" so they fired up the crawlers, moved them forward and then back, right into position.

There was no additional progress visible from the parking lot by the time the museum closed, but I returned at 7:00 pm, in time to watch them install the final two support columns in their foundations and then lower the S-IC onto the posts.

posted July 17, 2007 08:10 PM

The crew worked on rigging up the crawlers to transport the S-II stage, and by 8:30 they were moving the crawlers under the S-II. By about 10:00, they had both crawlers in position and both ends of the stage were securely lashed down.

They fired up the crawlers to start the move, but the S-II proved to be much more problematic than the S-IC: They had to abort after moving the S-II less than a foot:

posted July 17, 2007 08:11 PM

They finished that up just in time for lunch but by 12:45 they were ready to try again. This time, the didn't even move a foot before they waved off; the stage was still moving too much.

After a short meeting of the various crews, a call went out to Marshall for I-beams. While waiting for Marshall to deliver the I-beams, they located some on the USSRC grounds and brought them to the work area. By the time they relocated the USSRC I-beams, the truck from Marshall arrived.

posted July 17, 2007 08:12 PM

The joining of the I-beams done, the crew used a crane and a forklift to lift each I-beam up and position it on top of the jacking, and then they lowered the S-II and its cradle onto the I-beam.

By this time, it was nearly 7:00 pm on the only day it didn't rain. The first shift welders were ready to go home, and the second shift was expected to start welding by about 7:30. One of the crew said that they expected that the welding wouldn't be done until 10:00 or 11:00 pm.
