Author Topic:   Photo of the week 744 (January 26, 2019)
heng44
Member

Posts: 3297
From: Netherlands
Registered: Nov 2001

posted 01-26-2019 03:14 AM     Click Here to See the Profile for heng44   Click Here to Email heng44     Edit/Delete Message   Reply w/Quote

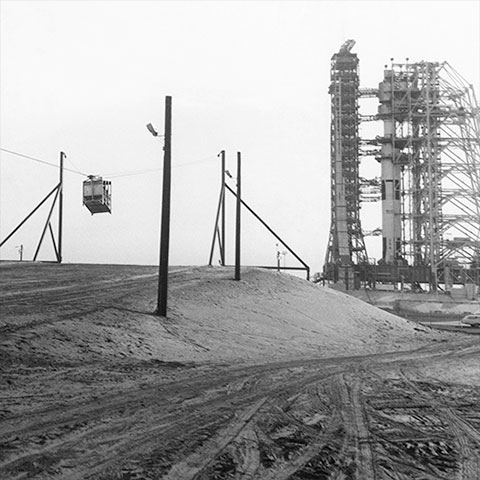

Half a century ago this week, NASA performed the first human test run of the slidewire escape system from the top of the Mobile Launcher at Pad 39A, where Apollo 9 was being prepared for launch in late February. Riding the cab down were NASA Safety Representative Chuck Billings, astronaut Stuart Roosa and Design Engineering Representative Art Porcher along with six full size dummies.

Kite
Member

Posts: 770
From: Northampton UK
Registered: Nov 2009

posted 01-26-2019 03:47 AM     Click Here to See the Profile for Kite     Edit/Delete Message   Reply w/Quote
That is a superb photo Ed. A rarely seen option of the launch pad.

Rick Mulheirn
Member

Posts: 3971
From: England
Registered: Feb 2001

posted 01-26-2019 04:03 AM     Click Here to See the Profile for Rick Mulheirn   Click Here to Email Rick Mulheirn     Edit/Delete Message   Reply w/Quote
Any closeups of "the crew" on the day Ed?

heng44
Member

Posts: 3297
From: Netherlands
Registered: Nov 2001

posted 01-26-2019 04:36 AM     Click Here to See the Profile for heng44   Click Here to Email heng44     Edit/Delete Message   Reply w/Quote
Plenty!

Kite
Member

Posts: 770
From: Northampton UK
Registered: Nov 2009

posted 01-26-2019 06:29 AM     Click Here to See the Profile for Kite     Edit/Delete Message   Reply w/Quote
All very good. Brings the training atmosphere to life for us.

Ian Limbrey
Member

Posts: 94
From: England
Registered: Nov 2012

posted 01-26-2019 07:07 AM     Click Here to See the Profile for Ian Limbrey   Click Here to Email Ian Limbrey     Edit/Delete Message   Reply w/Quote
Amazing photos and what a ride it must have been.

Headshot
Member

Posts: 770
From: Streamwood, IL USA
Registered: Feb 2012

posted 01-26-2019 10:13 AM     Click Here to See the Profile for Headshot   Click Here to Email Headshot     Edit/Delete Message   Reply w/Quote
Very good set of pictures Ed! Does any cSer know how long the "ride" took from start to motion stop?

Fra Mauro
Member

Posts: 1497
From: Bethpage, N.Y.
Registered: Jul 2002

posted 01-26-2019 01:00 PM     Click Here to See the Profile for Fra Mauro   Click Here to Email Fra Mauro     Edit/Delete Message   Reply w/Quote
About 30 seconds, a lifetime if the launch vehicle might explode.

OV-105
Member

Posts: 805
From: Ridgecrest, CA
Registered: Sep 2000

posted 01-26-2019 07:34 PM     Click Here to See the Profile for OV-105   Click Here to Email OV-105     Edit/Delete Message   Reply w/Quote
Ok with the Shuttle the slide wire system was on the fixed service structure. For Apollo did they have to pull the baskets up and hook the cables up to the tower for each flight of did they drop the cable from the tower and honor to the ground point?

oly
Member

Posts: 689
From: Perth, Western Australia
Registered: Apr 2015

posted 01-26-2019 09:36 PM     Click Here to See the Profile for oly   Click Here to Email oly     Edit/Delete Message   Reply w/Quote
I remember reading that the launch tower overhead crane was used to raise/lower the slide wire. But I cant find a reference for this information.

This image shows the area of the launch tower where the slide wire attaches, above the gate in the safety rail, opposite side from the rocket. There is also this document discussing past and future pad escape systems.

Jonnyed
Member

Posts: 300
From: Dumfries, VA, USA
Registered: Aug 2014

posted 01-27-2019 08:27 AM     Click Here to See the Profile for Jonnyed   Click Here to Email Jonnyed     Edit/Delete Message   Reply w/Quote
Oly's document talks about an original Saturn V EES and then a second Saturn V EES that corrected a few items. Any idea when that changeover took place between the two systems? Was this Apollo 9 "first human test run" after the changeover took place? Also how was braking accomplished at end of run?

Rick Mulheirn
Member

Posts: 3971
From: England
Registered: Feb 2001

posted 01-27-2019 01:28 PM     Click Here to See the Profile for Rick Mulheirn   Click Here to Email Rick Mulheirn     Edit/Delete Message   Reply w/Quote
quote:
Originally posted by heng44:
Plenty!
Thanks Ed. Much appreciated.

oly
Member

Posts: 689
From: Perth, Western Australia
Registered: Apr 2015

posted 01-27-2019 04:59 PM     Click Here to See the Profile for oly   Click Here to Email oly     Edit/Delete Message   Reply w/Quote
quote:
Originally posted by Jonnyed:
Also how was braking accomplished at end of run?
The first EES system was the "rubber room" that required crew to ride the elevator down the tower, details can be found here.

A video of the shuttle slide wire braking can be found here.

LM-12
Member

Posts: 2849
From: Ontario, Canada
Registered: Oct 2010

posted 01-29-2019 02:47 PM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
Here is a LIFE photo of a dummy on an earlier Apollo-era slide wire with ML-3 on the pad.

oly
Member

Posts: 689
From: Perth, Western Australia
Registered: Apr 2015

posted 01-29-2019 07:55 PM     Click Here to See the Profile for oly   Click Here to Email oly     Edit/Delete Message   Reply w/Quote
That is an interesting photo. The Apollo Saturn I launchpad slide wire used single person rescue strops, for a one man ride down the wire. The Saturn V launchpad slide wire used a multi crew basket. This photo shows a combination.

Thanks for sharing.

LM-12
Member

Posts: 2849
From: Ontario, Canada
Registered: Oct 2010

posted 01-29-2019 10:16 PM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
There is a brief mention here of maybe why that one-man slide wire escape system from the LUT was abandoned. Scroll down to the Egress System paragraph.

LM-12
Member

Posts: 2849
From: Ontario, Canada
Registered: Oct 2010

posted 01-30-2019 08:53 AM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
The emergency egress training for the Apollo 8 prime and backup crews included the one-man slide wire escape system at the pad 39B perimeter.

LM-12
Member

Posts: 2849
From: Ontario, Canada
Registered: Oct 2010

posted 01-31-2019 10:20 AM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
From the Mission Operation Report Supplement on page 76:
An alternate emergency egress system is referred to as the “Slide Wire.” The system consists of a winch-tensioned cable extending from above the 320-foot level of the ML to a 30-foot tail tower on the ground approximately 2200 feet (horizontal projection) from the launcher. A nine-man, tubular-frame cab is suspended from the cable by two brake-equipped trolleys. The unmanned weight of the cab is 1200 pounds and it traverses the distance to the “landing area” in 40 seconds. The cab is decelerated by the increasing drag of a chain attached to a picked-up arresting cable. The occupants of the cab then take refuge in a bunker constructed adjacent to the landing area. The cable has a minimum breaking strength of 53.2 tons and is varied in tension between 18,000 and 32,000 pounds by the winch located beyond the tail tower. The lateral force exerted by the tensioned cable on the ML is negligible relative to the mass of the launcher and the rigidity of the ML tower precludes any effect on tolerances or reliability of tower mechanisms.

LM-12
Member

Posts: 2849
From: Ontario, Canada
Registered: Oct 2010

posted 02-08-2019 09:23 AM     Click Here to See the Profile for LM-12     Edit/Delete Message   Reply w/Quote
quote:
Originally posted by oly:
The Saturn V launchpad slide wire used a multi crew basket.

Except for Apollo 8, apparently. No crew basket can be seen at the 320-foot level in Apollo 8 photo S68-55424.

Compare with Apollo 11 photo 69-H-1050.

astro-nut
Member

Posts: 846
From: Washington, IL
Registered: Jan 2006

posted 02-08-2019 01:52 PM     Click Here to See the Profile for astro-nut   Click Here to Email astro-nut     Edit/Delete Message   Reply w/Quote
Wow! What a ride that would of have been?!
