  NASA's Orion Ascent Abort (AA-2) test

Post New Topic  Post A Reply
profile | register | preferences | faq | search

next newest topic | next oldest topic
Author Topic:   NASA's Orion Ascent Abort (AA-2) test
Robert Pearlman
Editor

Posts: 39736
From: Houston, TX
Registered: Nov 1999

posted 11-10-2017 07:51 AM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
NASA release
NASA Moves Up Critical Crew Safety Launch Abort Test

NASA’s Orion spacecraft is scheduled to undergo a design test in April 2019 of the capsule’s launch abort system (LAS), which is a rocket-powered tower on top of the crew module built to very quickly get astronauts safely away from their launch vehicle if there is a problem during ascent.

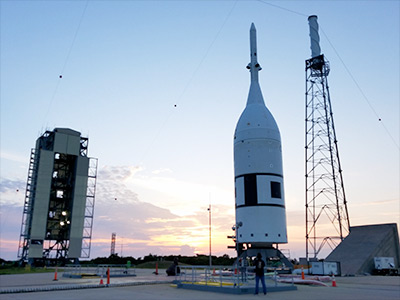

This full-stress test of the LAS, called Ascent Abort Test 2 (AA-2), will see a booster, provided by Orbital ATK, launch from Cape Canaveral Air Force Station in Florida, carrying a fully functional LAS and a 22,000 pound Orion test vehicle to an altitude of 32,000 feet at Mach 1.3 (over 1,000 miles an hour). At that point, the LAS’ powerful reverse-flow abort motor will fire, carrying the Orion test vehicle away from the missile. Timing is crucial as the abort events must match the abort timing requirements of the Orion spacecraft to the millisecond in order for the flight test data to be valid.

NASA is accelerating the timeline of the test to provide engineers with critical abort test data sooner to help validate computer models of the spacecraft’s LAS performance and system functions.

“This will be the only time we test a fully active launch abort system during ascent before we fly crew, so verifying that it works as predicted, in the event of an emergency, is a critical step before we put astronauts on board,” said Don Reed, manager of the Orion Program’s Flight Test Management Office at NASA’s Johnson Space Center in Houston. “No matter what approach you take, having to move a 22,000-pound spacecraft away quickly from a catastrophic event, like a potential rocket failure, is extremely challenging.”

The test will verify the LAS can steer the crew module and astronauts inside to safety in the event of an issue with a Space Launch System rocket when the spacecraft is under the highest aerodynamic loads it will experience during a rapid climb into or beyond orbit for deep-space missions.

The LAS is divided into two parts: the fairing assembly, which is a shell composed of a lightweight composite material that protects the capsule from the heat, wind and acoustics of the launch, ascent, and abort environments; and the launch abort tower, which includes the system’s three motors. In an emergency, those three motors — the launch abort, attitude control, and jettison motors — would work together to pull Orion away from a problem on the launch pad or during SLS first stage ascent, steering and re-orienting for LAS jettison, and pulling the LAS away from the crew module. During a normal launch, only the LAS jettison motor would fire, once Orion and the Space Launch System clear most of the atmosphere, to clear the LAS from Orion and allow the spacecraft to continue with its mission.

Engineers at several NASA centers already are building the Orion test article that has many of the design features and the same mass as the capsule that will carry crew. Because the test is designed to evaluate Orion’s launch abort capabilities, the crew module used for AA-2 will not deploy parachutes after the abort system is jettisoned, nor will it have a reaction control system with thrusters needed to help orient the capsule for a parachute-assisted descent and splashdown after the LAS is jettisoned.

The AA-2 test development and execution is a partnership between Orion Program and the Advanced Exploration Systems Division, the technology advancement organization in the Human Exploration and Operations Mission Directorate at NASA Headquarters in Washington.

NASA Johnson is responsible for producing the fully assembled and integrated crew module and separation ring, including development of unique avionics, power, software and data collection subsystems and several elements of ground support equipment.

The agency’s Langley Research Center in Hampton, Virginia, will build the primary structure of the crew module test article and a separation ring that connects the test capsule to the booster and provides space and volume for separation mechanisms and instrumentation.

Critical sensors and instruments used to gather data during the test will be provided by NASA’s Armstrong Flight Research Center in Edwards, California. The integrated test article will be delivered to NASA’s Kennedy Space Center in Florida, where it will be processed before launch.

NASA’s prime contractor, Lockheed Martin, is providing the fully functional Orion LAS, and the crew module to service module umbilical and flight design retention and release mechanisms.

In 2010, an earlier version of Orion’s LAS was tested to evaluate the performance of the system in during Abort Test Booster-1 at the White Sands Missile Range in New Mexico. For Exploration Mission-1, NASA’s first integrated flight test of Orion atop the powerful SLS — the abort system will not be fully active since astronauts will not be inside the spacecraft. NASA is working toward a December 2019 launch for EM-1.

Robert Pearlman
Editor

Posts: 39736
From: Houston, TX
Registered: Nov 1999

posted 03-02-2018 06:06 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
From Johnson Space Center:

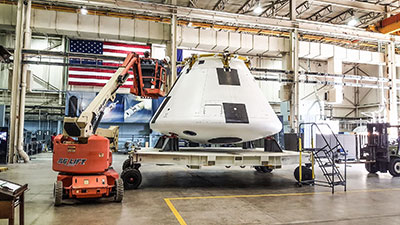

Orion's Ascent Abort-2 crew module arrives at Johnson Space Center for final assembly. Read more about this flight test.

Robert Pearlman
Editor

Posts: 39736
From: Houston, TX
Registered: Nov 1999

posted 04-27-2018 01:00 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
collectSPACE
Year to abort: NASA preps Orion capsule for 2019 Ascent Abort-2 test

NASA is about one year out from calling an abort.

The space agency on Thursday (April 26) showcased its boilerplate Orion capsule that will fly on Ascent Abort-2 (AA-2), a critical but brief test to validate the launch abort system intended to save astronauts' lives in the event of an in-flight anomaly with the Space Launch System (SLS) rocket.

Robert Pearlman
Editor

Posts: 39736
From: Houston, TX
Registered: Nov 1999

posted 07-17-2018 11:08 AM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
NASA release
Team Powers On AA-2 Orion Module, Preps for Flight Test Simulation

The team of engineers outfitting the Orion test article for Ascent Abort-2 have had a busy summer. Since the arrival of the empty capsule in March, the team at Johnson Space Center in Houston has outfitted the mock crew module with all the components it needs for flight and powered it on for the first time the week of July 8.

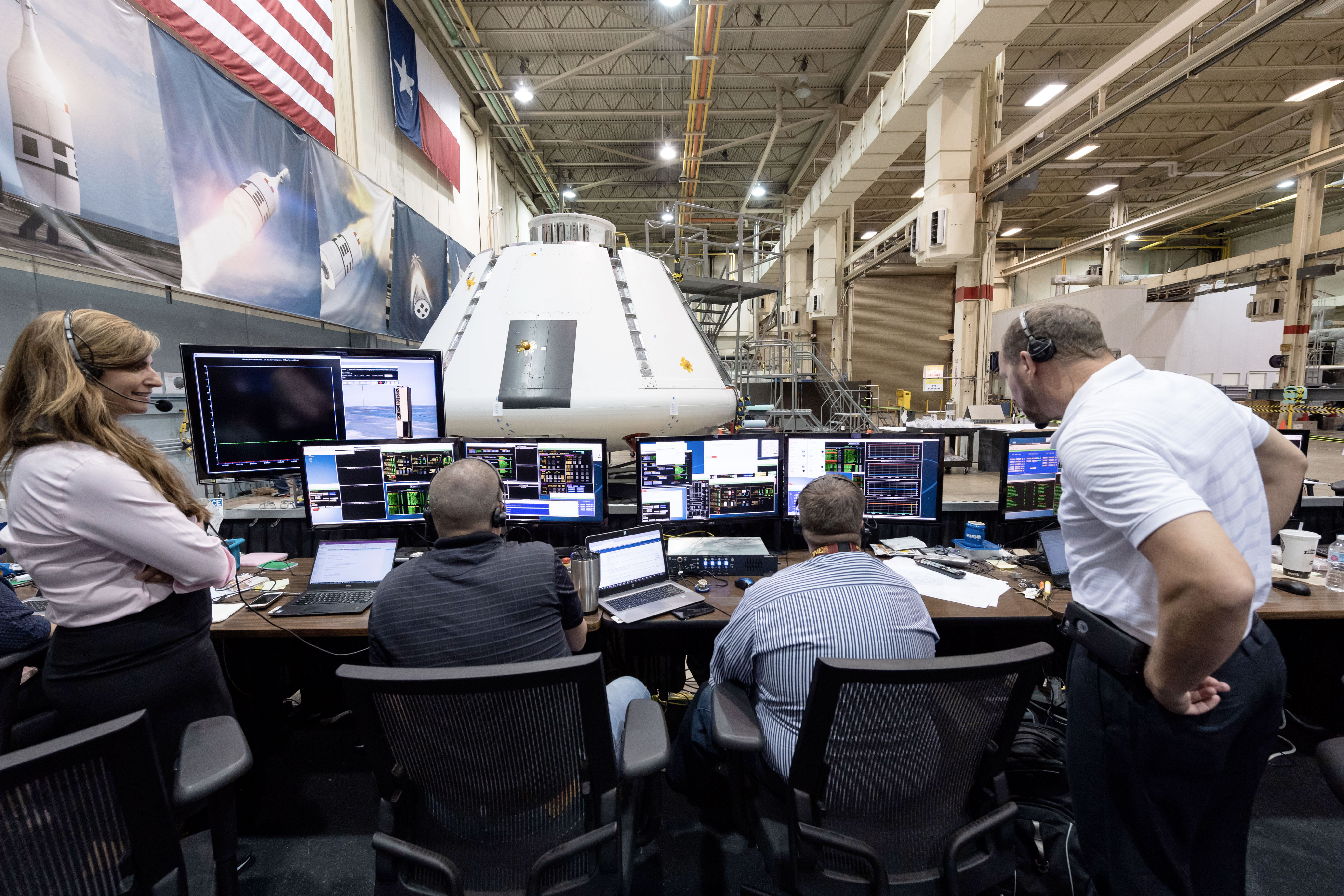

Powering on the vehicle is a big milestone toward the flight test and ensures the crew module works in an integrated fashion. Powering up Orion is a lot more complicated that simply flipping on a switch. The multi-day, incremental process began with teams applying power to the power distribution unit to ensure all the pins in the unit have the right voltages. One by one, additional systems were connected and powered to ensure that the vehicle is healthy and providing the right data. Engineers have positioned all of the core avionics, outfitted the data instrumentation, and routed and clamped almost 11 miles of harnessing inside Orion.

Ascent Abort-2 is a full-stress test of Orion's Launch Abort System (LAS) planned for April 2019. It is the only remaining flight test of the active LAS before flying crew on Orion beginning with Exploration Mission-2, and it is essential for a system designed to carry humans to the Moon and beyond. The system is built to propel Orion and its crew to a safe distance away from the Space Launch System rocket if an emergency arises during launch.

Now that the power-on activity is complete, engineers are moving right into simulating the flight test, including ground support milestones, the prelaunch countdown and flight profile, followed by testing to verify that the vehicle will perform as expected. Upon completion of testing, technicians will have a few mechanical elements to finish integrating before the crew module is rolled on its side to verify its weight and center of gravity, both of which have to be the same as the Orion that will send crew to deep space to ensure the April flight test provides accurate data for a mission abort scenario.

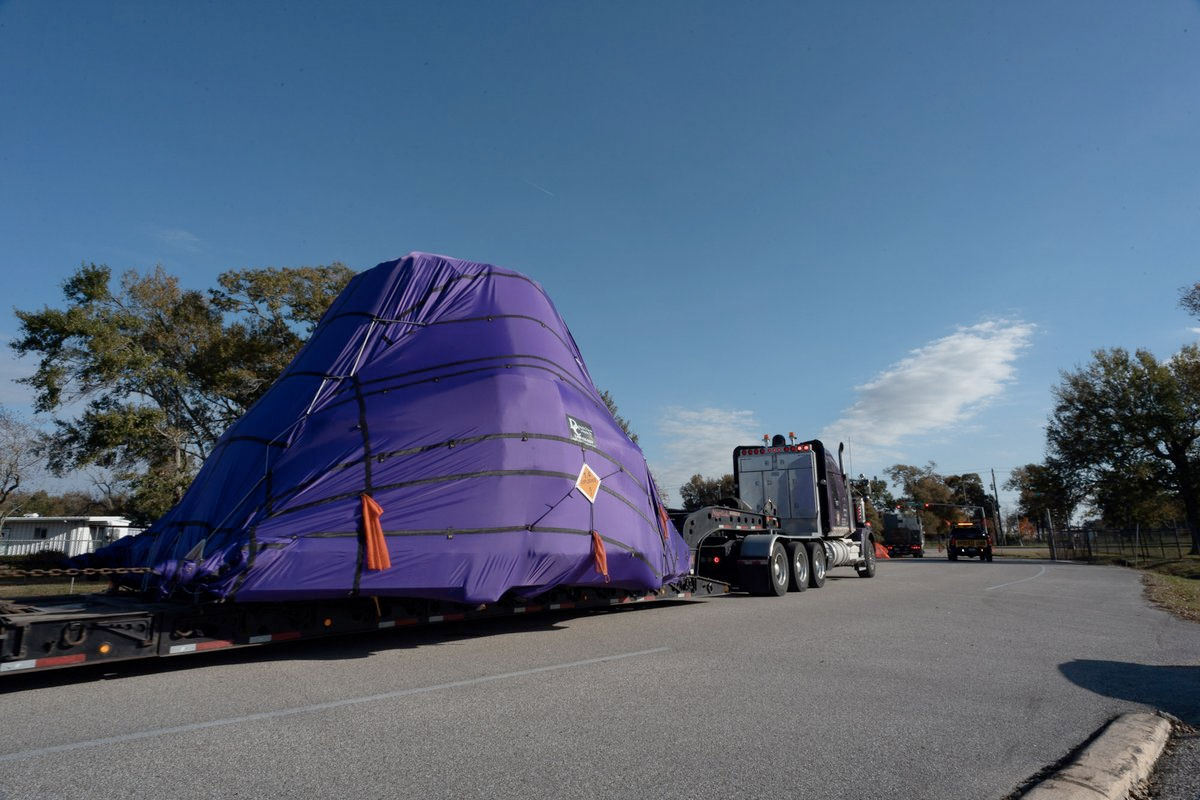

The spacecraft will soon be shipped to Glenn Research Center's Plum Brook Station in Sandusky, Ohio, where it will undergo several weeks of acoustics testing. It will return to Johnson in the September timeframe for integration with the separation ring that connects the crew module to its booster, and then transported to the Kennedy Space Center for integration with the booster for launch.
