Author Topic:   Orion MPCV floatation and water recovery tests
Robert Pearlman
Editor

Posts: 27795
From: Houston, TX
Registered: Nov 1999

posted 08-31-2008 09:25 AM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
NASA release
Orion Scale Model Tested in the Water

Scale models of the Orion crew exploration vehicle recently were tested at NASA's Neutral Buoyancy Laboratory, or NBL, at NASA's Johnson Space Center in Houston and at a wave tank at Texas A&M University in College Station.

NASA conducted a series of buoyancy and flotation characteristics tests using the NBL and a 1/4-scale model of the Orion crew capsule. The model was lowered into the NBL's 6.2-million-gallon pool and was floated in a series of positions. This testing will allow the engineers and the NBL team to develop their full-scale crew training mock-up that will be used for mission training and for creating the crew safety procedures for water-based landings of the Orion crew capsule.

The team also performed a series of tests to validate a new seal design and updated wireless communications. Engineers also evaluated a prototype floatation collar for the spacecraft, which was provided by NASA's Kennedy Space Center in Florida.

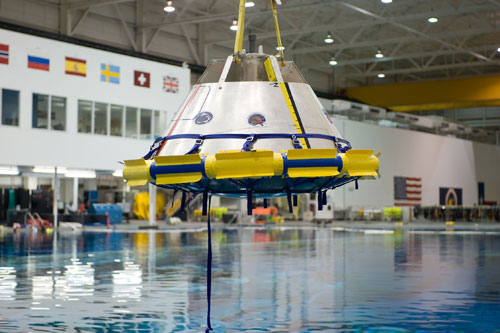

Above: A 1/4th-scale model of the Orion spacecraft is lowered into the 6.2-million-gallon Neutral Buoyancy Laboratory at NASA's Johnson Space Center. Engineers used the test to gather data on how the model behaved and reacted in the water.

"It is rewarding to see an actual scale model of Orion finally being tested in the water," said Alan Rhodes, a NASA engineer who was observing the testing. "The NBL is a one-of-a-kind testing facility for NASA, and the team helped us gather a tremendous amount of critical data that we will use to refine the design of Orion."

A smaller scale model of the Orion crew capsule also was tested at a wave tank at Texas A&M University. The goal of the test was to determine how the spacecraft reacts to strong waves while it floats in the water. Engineers simulated gale force winds and large waves to ensure the spacecraft would remain upright.

The next step for the team will be to partner with a team of naval architects from the United States Navy to conduct a series of flotation characteristics and towing tests to help further understand how the Orion crew capsule will act in different sea states and to help generate recovery procedures. The next round of testing will be held in October at the Naval Surface Warfare Center in Carderock, Md., and at the Aberdeen Proving Ground in Aberdeen, Md.

Along with the scaled testing, NASA and the United States Navy began fabrication of a full-scale test article that will allow search and rescue divers from the Human Space Flight Support team at the Kennedy Space Center to begin working with an Orion mock-up in the water. These tests will allow the team to review current recovery procedures and to understand how changing sea states will affect the overall recovery operation. Full-scale testing will take place off the coast of Florida, near the Kennedy Space Center, in January 2009.

Robert Pearlman
Editor

Posts: 27795
From: Houston, TX
Registered: Nov 1999

posted 03-25-2009 04:39 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
NASA release
NASA's Constellation Program Tests Orion Recovery Procedures

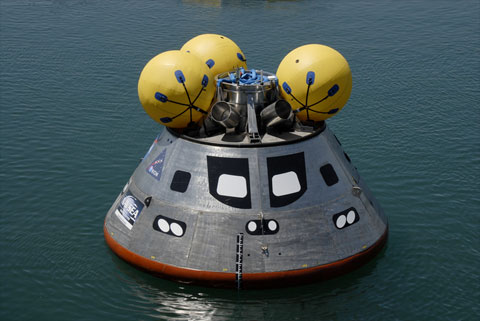

A full-scale mockup of NASA's Orion crew module is being tested in water under simulated and real landing weather conditions. Beginning March 23, a Navy-built, 18,000-pound Orion mockup will be placed in a test pool at the Naval Surface Warfare Center's Carderock Division in West Bethesda, Md. Ocean testing will begin April 6 off the coast of NASA's Kennedy Space Center in Florida.

The goal of the operation, dubbed the Post-landing Orion Recovery Test, or PORT, is to determine what kind of motions the astronaut crew can expect after landing, as well as conditions outside for the recovery team. The experience will help NASA design landing recovery operations including equipment, ship and crew necessities.

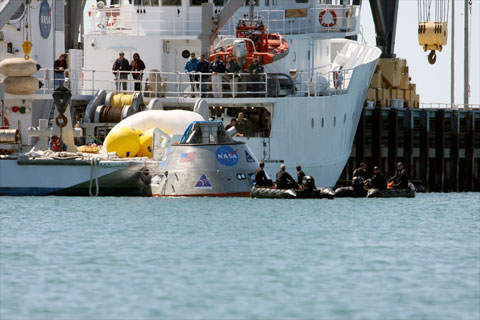

The Carderock facility provides a controlled environment for crew recovery personnel to familiarize themselves with the Orion capsule before the team tests procedures in the uncontrolled waters of the Atlantic Ocean.

For the ocean testing, the team will use a space shuttle solid rocket booster recovery ship to take the mockup out to sea, going further into rougher conditions each day. A media opportunity to view testing visible from shore will be scheduled for April 7 at Kennedy.

During the Orion mockup's transportation from Maryland to Florida, it will make stops for public viewing. Designated opportunities are March 30 in front of the Smithsonian National Air and Space Museum in Washington and April 3 at the Kennedy Space Center Visitor's Complex in Florida.

NASA's Constellation Program, which includes the Orion crew vehicle and the Ares I rocket that will launch it, is America's next-generation human spaceflight system that will carry astronauts to the International Space Station, back to the moon and to destinations beyond.

The Constellation Program's Operations and Test Integration Office at NASA's Johnson Space Center in Houston is leading the PORT effort. Development of Orion and associated Constellation Program elements is a joint effort involving every NASA center and partners across the country. Results of these tests will influence Orion vehicle design at Johnson and recovery hardware designs under evaluation at Kennedy.

Robert Pearlman
Editor

Posts: 27795
From: Houston, TX
Registered: Nov 1999

posted 04-10-2009 11:51 AM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote

Apollo Redux
Member

Posts: 346
From: Montreal, Quebec, Canada
Registered: Sep 2006

posted 04-13-2009 06:22 PM     Click Here to See the Profile for Apollo Redux   Click Here to Email Apollo Redux     Edit/Delete Message   Reply w/Quote
Was the capsule weighted as if it were returning with 4-6 astronauts? And has NASA settled on water landings?

Robert Pearlman
Editor

Posts: 27795
From: Houston, TX
Registered: Nov 1999

posted 04-13-2009 06:32 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
NASA's press release mentions the mock-up weighed 18,000 pounds, which is, I believe, consistent with the target landing mass.

And yes, a water landing is now the nominal return option.

Robert Pearlman
Editor

Posts: 27795
From: Houston, TX
Registered: Nov 1999

posted 04-27-2009 09:55 AM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote

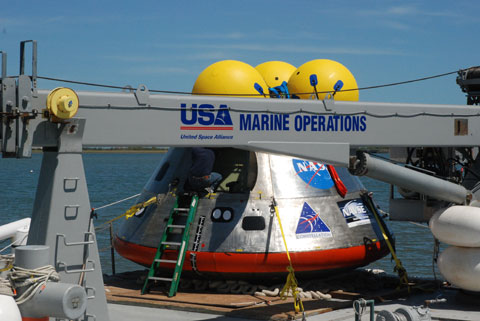

The Orion simulator on the deck of the Freedom Star (photographed April 18):

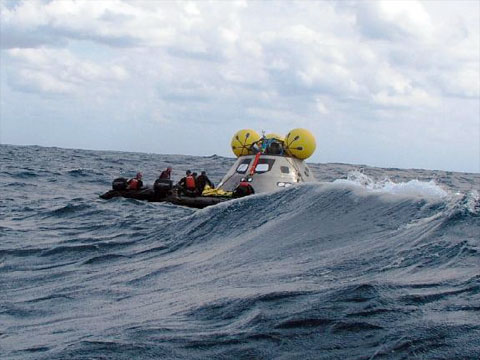

...and during a test in the open waters of the Atlantic Ocean.

328KF
Member

Posts: 837
From:
Registered: Apr 2008

posted 04-27-2009 06:07 PM     Click Here to See the Profile for 328KF   Click Here to Email 328KF     Edit/Delete Message   Reply w/Quote
Has there been any research or experience as to how long duration astronauts returning from ISS will react to the planned ocean landings?

Obviously, it's not the ideal way of coming home, I just wonder if the control panels of every returning Orion ship will be covered in, well...lunch.

Klaatu
Member

Posts: 60
From: England
Registered: Sep 2007

posted 05-01-2009 07:43 AM     Click Here to See the Profile for Klaatu     Edit/Delete Message   Reply w/Quote
That last photo brings back fond memories!

onesmallstep
Member

Posts: 573
From: Staten Island, New York USA
Registered: Nov 2007

posted 08-15-2013 11:29 AM     Click Here to See the Profile for onesmallstep   Click Here to Email onesmallstep     Edit/Delete Message   Reply w/Quote
Today (Aug. 15, 2013), the US Navy plans to perform a series of tests to evaluate the new recovery techniques to be used in future unmanned and manned Orion spacecraft missions. Not since 1975 has a US spacecraft been recovered at sea, so the Navy is dusting off some procedures but adding a new twist: instead of helicopters like the iconic 'Old 66' being used to drop scuba divers, attach a floatation collar and eventually airlift astronauts to a waiting ship, the Orion will come to the Navy ship, astronauts still inside, to 'come aboard.'

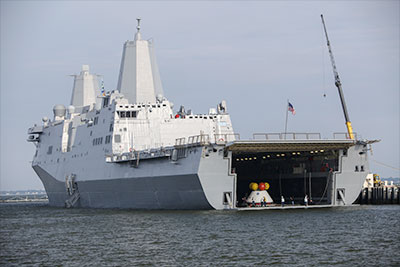

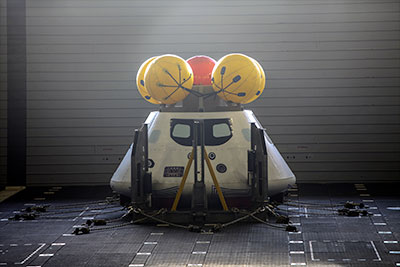

Photos show a mockup of Orion being towed to the San Antonio-class amphibious transport dock USS Arlington (LPD-24) at a pier at Naval Station Norfolk in Virginia. The Orion will be floated into the well deck of the Arlington and the water will be drained so the capsule remains in a safe, dry environment and future astronauts can exit the spacecraft.

Navy Live, the official blog of the US Navy, will carry live coverage of the recovery tests beginning at 12 pm EDT, and has an article by the CO of the Arlington, its role in the tests, and mentions a past predecessor ship's part in the Apollo program.

Robert Pearlman
Editor

Posts: 27795
From: Houston, TX
Registered: Nov 1999

posted 08-15-2013 11:44 AM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
NASA photo release

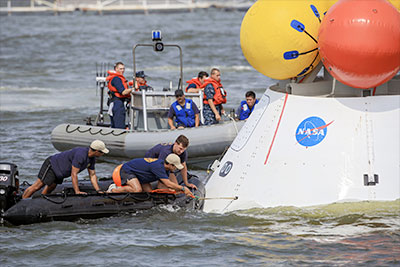

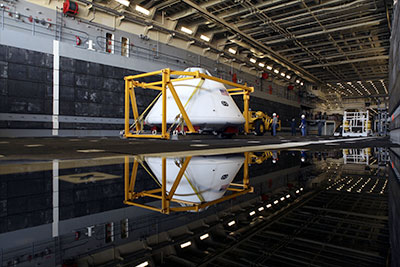

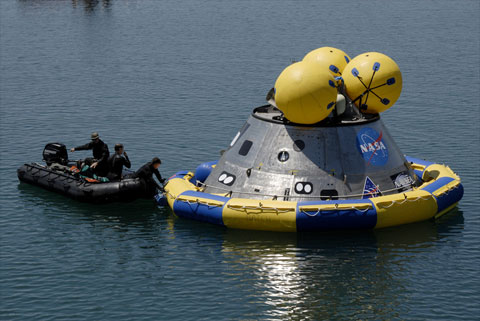

At the Naval Station Norfolk near NASA's Langley Research Center in Virginia, NASA and Navy personnel practice procedures during a stationary recovery test on the Orion boilerplate test article.

NASA and the U.S. Navy are conducting tests to prepare for recovery of the Orion crew module and forward bay cover on its return from a deep space mission. The stationary recovery test will allow the teams to demonstrate and evaluate the processes, procedures, hardware and personnel in a controlled environment before a second recovery test next year in open waters.

onesmallstep
Member

Posts: 573
From: Staten Island, New York USA
Registered: Nov 2007

posted 08-15-2013 01:39 PM     Click Here to See the Profile for onesmallstep   Click Here to Email onesmallstep     Edit/Delete Message   Reply w/Quote
Fascinating to see the choreography involved in this procedure for ocean recovery. As I heard one of the Navy officers explain it, the zodiacs and other small boats will tow an Orion near the well deck, where lines will be attached to keep the capsule steady and taut until a cable winch can be hooked on to bring the capsule into the deck. The first part of the operation will be monitored by an officer in 'Well Deck Control', while the recovery efforts inside will be supervised by a boatswain's mate.

If anyone missed today's test in Norfolk, it will be put in Navy Live's video library in about two hours.

SpaceAholic
Member

Posts: 3063
From: Sierra Vista, Arizona
Registered: Nov 1999

posted 08-16-2013 06:58 AM     Click Here to See the Profile for SpaceAholic   Click Here to Email SpaceAholic     Edit/Delete Message   Reply w/Quote
Main canopies and lines are going to have to be recovered/locations accounted for before that Gator can close for the tow else they risk fouling the screws.

moorouge
Member

Posts: 1559
From: U.K.
Registered: Jul 2009

posted 09-28-2013 05:03 AM     Click Here to See the Profile for moorouge   Click Here to Email moorouge     Edit/Delete Message   Reply w/Quote
As already commented, the pictures of a sea recovery bring back memories of Apollo. This raises a question.

Though the fine detail will obviously be different, how much spill-over from Apollo will there be in the broader princlples of this type of recovery?

Jim Behling
Member

Posts: 593
From: Cape Canaveral, FL
Registered: Mar 2010

posted 09-28-2013 05:39 AM     Click Here to See the Profile for Jim Behling   Click Here to Email Jim Behling     Edit/Delete Message   Reply w/Quote
Take away the ocean and US Navy, almost none. Not a carrier task force, just one ship. Few airborne, assets which are mostly for IR and video documentation. The contractor has a larger role in handling the capsule once it is on the recovery frame. Cost was a driver.

Ross
Member

Posts: 379
From: Australia
Registered: Jul 2003

posted 09-28-2013 08:33 AM     Click Here to See the Profile for Ross   Click Here to Email Ross     Edit/Delete Message   Reply w/Quote
Does anyone know what contingency plans there will be in case the Orion capsule lands a long distance from the expected recovery point. And what if an emergency situation occurs under such conditions?

Will there be contingency aircraft with swimmers aboard on standby for such an emergency? And what if the capsule is forced to splash down in the wrong ocean?

Surely, at least for manned missions, there will need to be a second ship standing by in the opposite ocean for just such a situation.

moorouge
Member

Posts: 1559
From: U.K.
Registered: Jul 2009

posted 09-28-2013 10:13 AM     Click Here to See the Profile for moorouge   Click Here to Email moorouge     Edit/Delete Message   Reply w/Quote
For Apollo consideration was given and procedures laid out for the following -
  • landing areas, recovery zones, recovery lines and target points:
  • module hazards and safety areas, correct procedures for dealing with such hazards
  • contingency landing areas, recovery operations
  • helicopter deployment, deployment of pararescuemen
  • personnel procedures
  • training and simulations
These are the broad headlines. Surely, some of these will have relevance to Orion though, as I said, the fine detail may well be different to a greater or lesser extent.
