Author Topic:   SpaceX autonomous spaceport drone ship (ASDS)
Robert Pearlman
Editor

Posts: 31519
From: Houston, TX
Registered: Nov 1999

posted 11-22-2014 03:24 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote

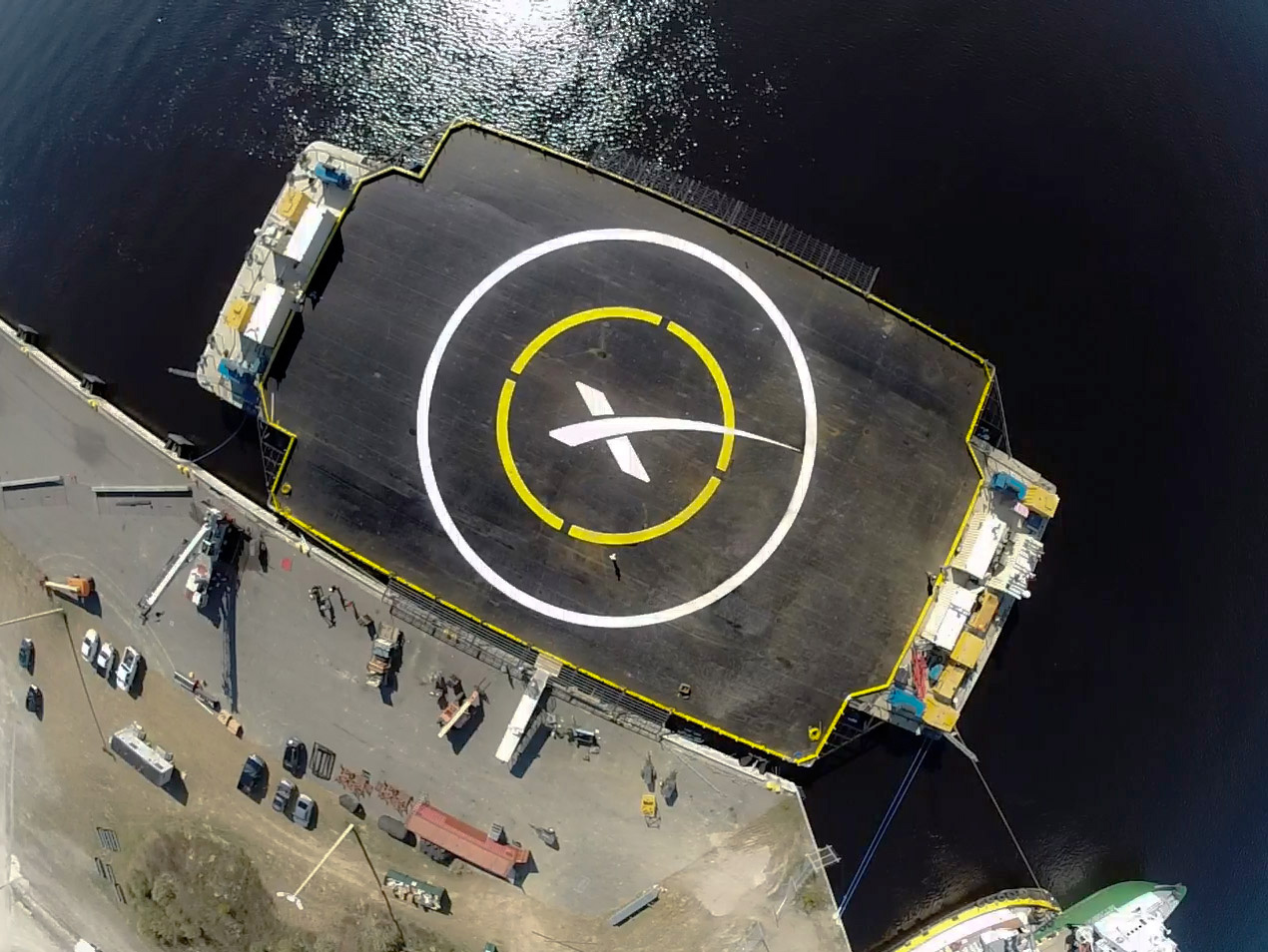

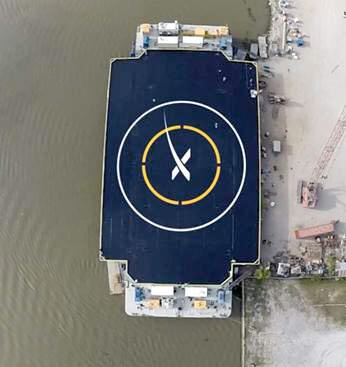

Elon Musk on Saturday (Nov. 22) shared the first photo of the company's new autonomous spaceport drone ship that it plans to use to land Falcon 9 first stages.
Thrusters repurposed from deep sea oil rigs hold position within 3 meters, even in a storm.

Base is 300 feet by 100 feet, with wings that extend width to 170 feet. Will allow refuel and rocket flyback in future.

SpaceX is planning to deploy its new landing barge for the launch of Dragon SpX-5, currently targeted for Dec. 16, 2014.

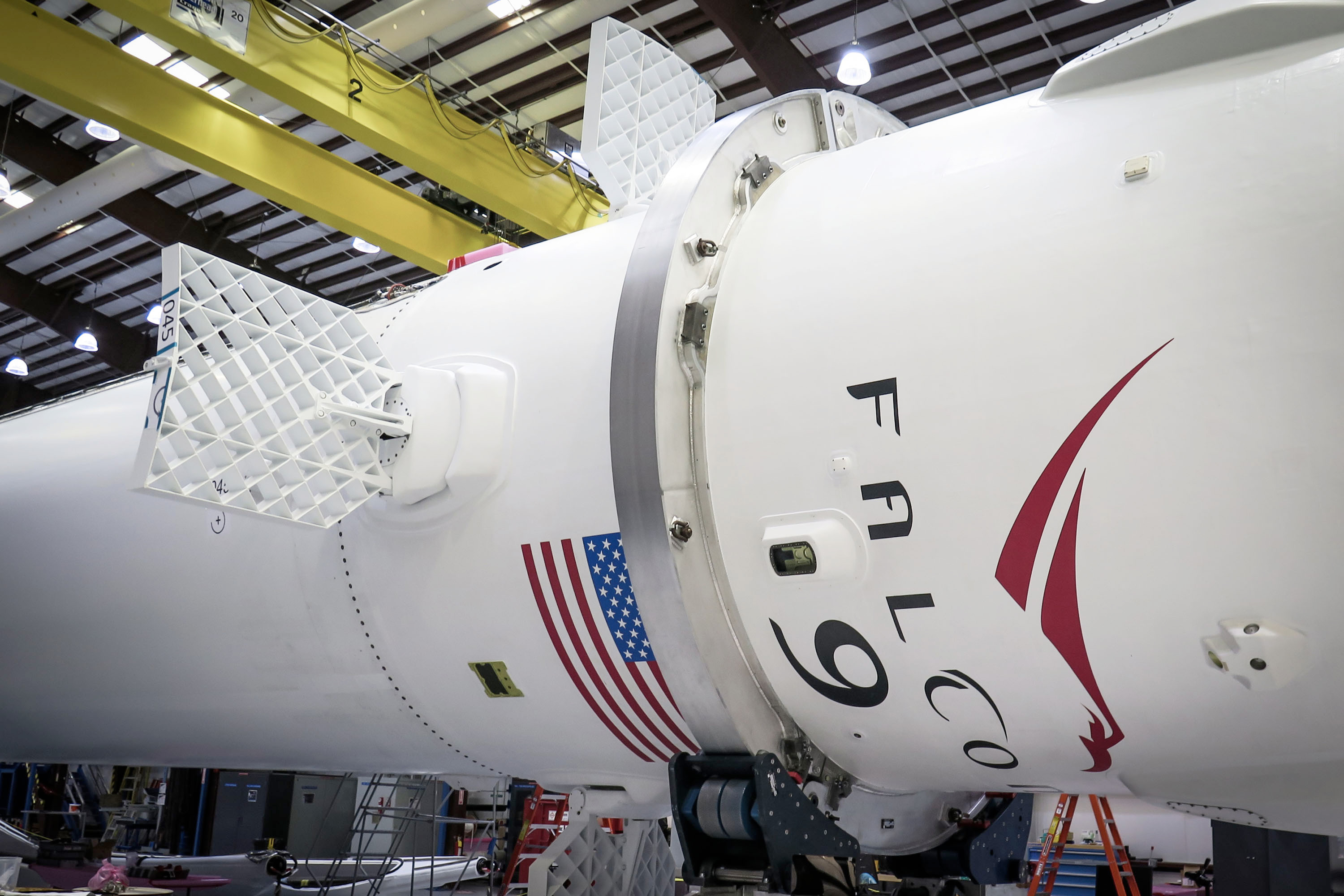

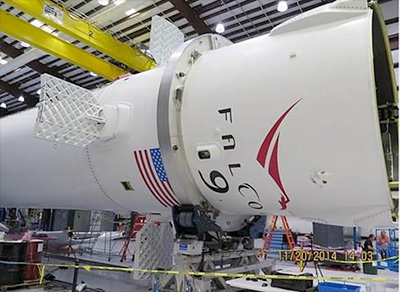

Musk also shared a photo of the hypersonic grid fins being added to the Falcon 9 first stage to assist with its recovery.

Testing operation of hypersonic grid fins (x-wing config) going on next flight. Grid fins are stowed on ascent and then deploy on reentry for "x-wing" style control. Each fin moves independently for pitch/yaw/roll.

Robert Pearlman
Editor

Posts: 31519
From: Houston, TX
Registered: Nov 1999

posted 12-16-2014 08:41 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
SpaceX release
X Marks the Spot: Falcon 9 Attempts Ocean Platform Landing

During our next flight, SpaceX will attempt the precision landing of a Falcon 9 first stage for the first time, on a custom-built ocean platform known as the autonomous spaceport drone ship. While SpaceX has already demonstrated two successful soft water landings, executing a precision landing on an unanchored ocean platform is significantly more challenging.

The odds of success are not great — perhaps 50% at best. However this test represents the first in a series of similar tests that will ultimately deliver a fully reusable Falcon 9 first stage.

Returning anything from space is a challenge, but returning a Falcon 9 first stage for a precision landing presents a number of additional hurdles. At 14 stories tall and traveling upwards of 1300 m/s (nearly 1 mi/s), stabilizing the Falcon 9 first stage for reentry is like trying to balance a rubber broomstick on your hand in the middle of a wind storm.

To help stabilize the stage and to reduce its speed, SpaceX relights the engines for a series of three burns. The first burn — the boostback burn — adjusts the impact point of the vehicle and is followed by the supersonic retro propulsion burn that, along with the drag of the atmosphere, slows the vehicle's speed from 1300 m/s to about 250 m/s. The final burn is the landing burn, during which the legs deploy and the vehicle's speed is further reduced to around 2 m/s.

To complicate matters further, the landing site is limited in size and not entirely stationary. The autonomous spaceport drone ship is 300 by 100 feet, with wings that extend its width to 170 feet. While that may sound huge at first, to a Falcon 9 first stage coming from space, it seems very small. The legspan of the Falcon 9 first stage is about 70 feet and while the ship is equipped with powerful thrusters to help it stay in place, it is not actually anchored, so finding the bullseye becomes particularly tricky. During previous attempts, we could only expect a landing accuracy of within 10km. For this attempt, we're targeting a landing accuracy of within 10 meters.

A key upgrade to enable precision targeting of the Falcon 9 all the way to touchdown is the addition of four hypersonic grid fins placed in an X-wing configuration around the vehicle, stowed on ascent and deployed on reentry to control the stage's lift vector. Each fin moves independently for roll, pitch and yaw, and combined with the engine gimbaling, will allow for precision landing – first on the autonomous spaceport drone ship, and eventually on land.

Similar steerable fins can also be seen in this test video.

The attempt to recover the first stage will begin after stage separation, once the Dragon spacecraft is safely on its way to orbit. The concept of landing a rocket on an ocean platform has been around for decades but it has never been attempted. Though the probability of success on this test is low, we expect to gather critical data to support future landing testing.

A fully and rapidly reusable rocket — which has never been done before — is the pivotal breakthrough needed to substantially reduce the cost of space access. While most rockets are designed to burn up on reentry, SpaceX is building rockets that not only withstand reentry, but also land safely on Earth to be refueled and fly again. Over the next year, SpaceX has at least a dozen launches planned with a number of additional testing opportunities. Given what we know today, we believe it is quite likely that with one of those flights we will not only be able to land a Falcon 9 first stage, but also re-fly.

Robert Pearlman
Editor

Posts: 31519
From: Houston, TX
Registered: Nov 1999

posted 01-23-2015 06:54 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
Elon Musk has revealed the names of SpaceX's east coast and now under construction west coast drone ships.

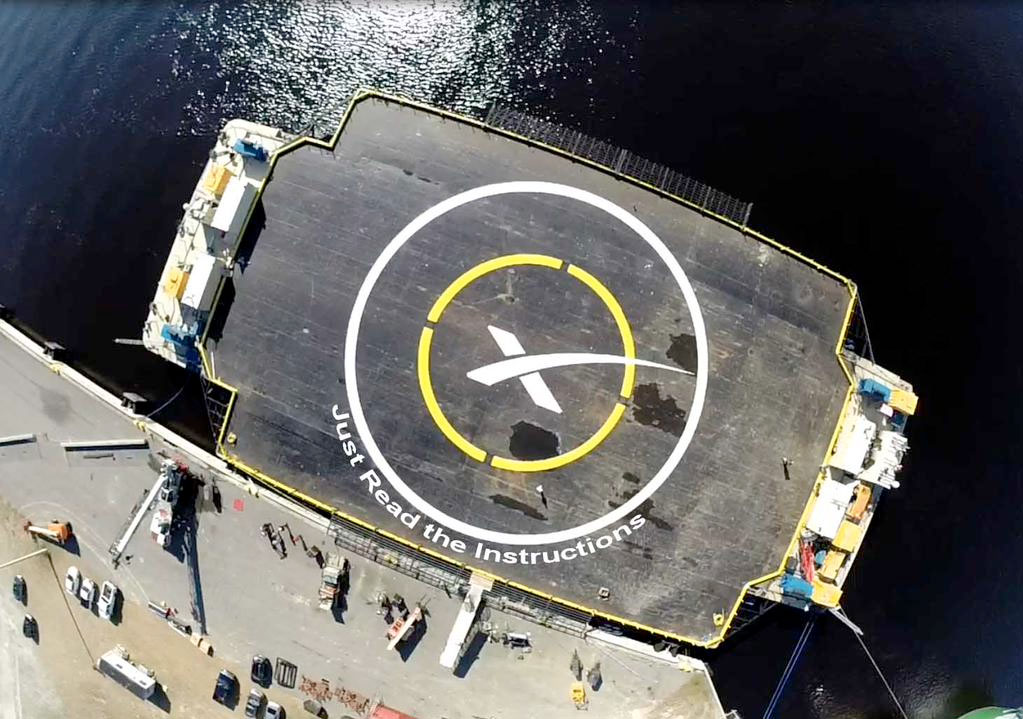

...have given it the name "Just Read the Instructions."

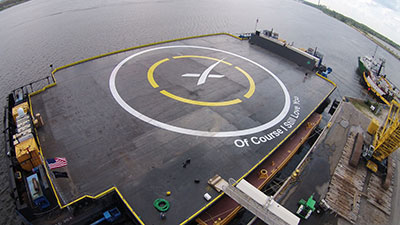

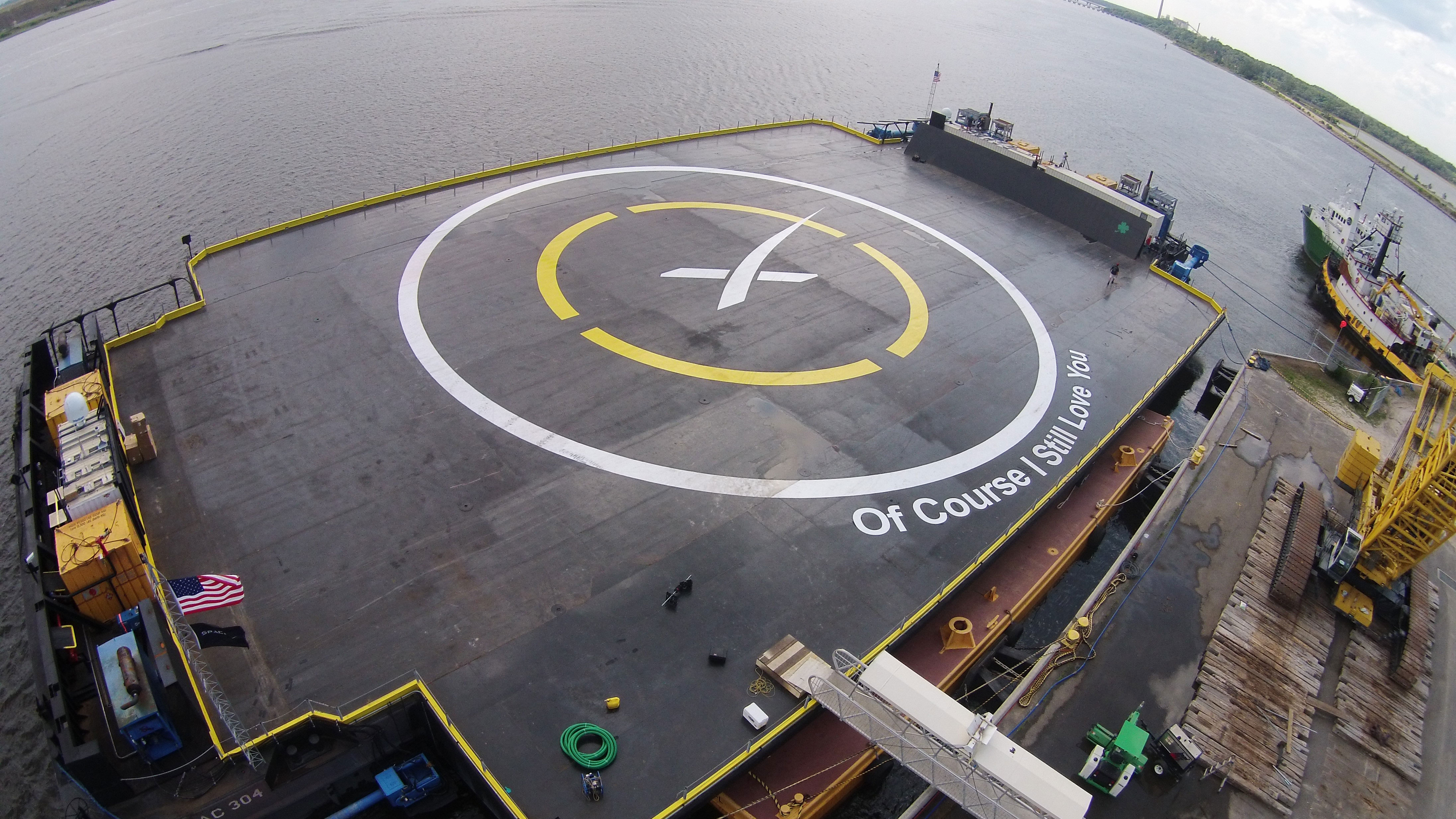

West Coast drone ship under construction will be named "Of Course I Still Love You."

For those not familiar, the names are from science fiction writer Iain M. Banks' Culture novels. "Just Read the Instructions" and "Of Course I Still Love You" are two of the sentient, planet-sized Culture starships that first appear in Banks' "The Player of Games."
