Author Topic:   Apollo 13: Site selection and a pinpoint landing
holcombeyates
Member

Posts: 253
From: UK
Registered: Dec 2010

posted 01-20-2015 08:04 AM     Click Here to See the Profile for holcombeyates   Click Here to Email holcombeyates     Edit/Delete Message   Reply w/Quote

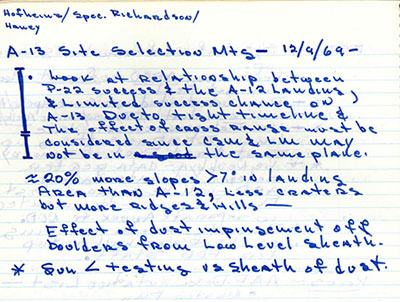

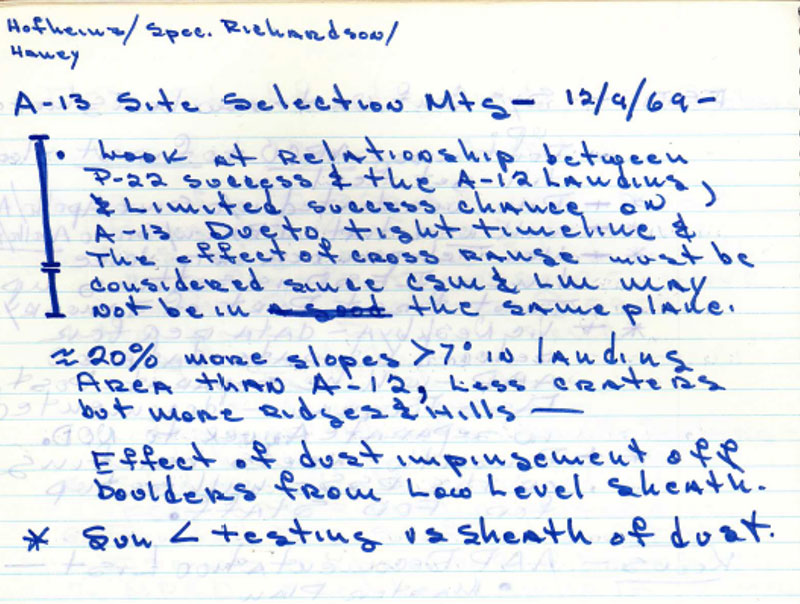

The following in an excerpt from Gene Kranz's notebook journal dated the 9th January 1969 and concerns the Apollo 13 Site Selection Meeting.

I am working to understand the relationship between Program 22 (P22) success and the Apollo 12 pinpoint landing and how this would have had a bearing on the Apollo 13 planning and probability of a pinpoint landing. Research is ongoing but not my area of expertise.

The Program 22 referred to is for Orbital Navigation by the Apollo Guidance Computer on board the Command Module.

Presumably this means that data extracted from the CM would not easily translate to the LM after a plane change and the same procedures used for Apollo 12's pinpoint landing could not be used. Would this therefore have required navigation signings from the LM — adding to crew workload?

Would be very keen to hear from anyone with any information.

Headshot
Member

Posts: 891
From: Vancouver, WA, USA
Registered: Feb 2012

posted 01-20-2015 03:25 PM     Click Here to See the Profile for Headshot   Click Here to Email Headshot     Edit/Delete Message   Reply w/Quote
Once samples from an Eastern ("blue") Mare and a Western ("Less Blue") Mare were returned, the next Apollo mission (13) was almost certainly going to be assigned to Fra Mauro. Thirteen's other landing candidates, Alphonsus, Cayley, Davy, Hipparchus, Hyginus and Rima Bode II were not serious contenders.

Scientists desperately wanted to date the Imbrium Event, this was their most pressing question after establishing what the differences were between the two types of lunar mare. The Fra Mauro Formation is vast enough so that, had Apollo 12 not succeeded in making a pinpoint landing, it still would have been selected as 13's target.

Apollo 12's pinpoint landing gave mission planners confidence that a mission could land at some of the more desirable (but rougher) sites at Fra Mauro. It eventually allowed planners to target a site near Cone Crater (the initial Fra Mauro landing site candidates were not within walking distance of Cone) to also obtain deep samples that had been excavated by the formation of Cone.

Pinpoint landing accuracy was not an absolute requirement for Apollo 13, but would have been had Apollo 14 gone to Littrow and the H-Mission Apollo 15 to Censorinus.

holcombeyates
Member

Posts: 253
From: UK
Registered: Dec 2010

posted 02-12-2015 03:49 AM     Click Here to See the Profile for holcombeyates   Click Here to Email holcombeyates     Edit/Delete Message   Reply w/Quote
Thanks for the info - great piece of information!
