  FS: Lunar Lander Training Vehicle engine

Post New Topic  Post A Reply
profile | register | preferences | faq | search

next newest topic | next oldest topic
Author Topic:   FS: Lunar Lander Training Vehicle engine
SpaceAholic
Member

Posts: 4633
From: Sierra Vista, Arizona
Registered: Nov 1999

posted 07-25-2020 06:03 PM     Click Here to See the Profile for SpaceAholic   Click Here to Email SpaceAholic     Edit/Delete Message   Reply w/Quote

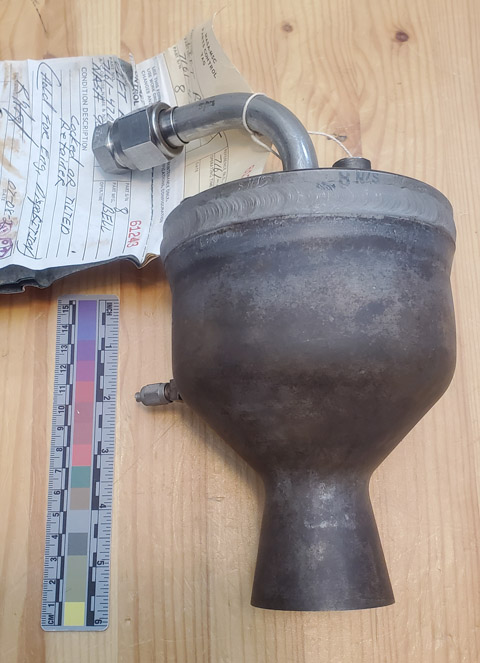

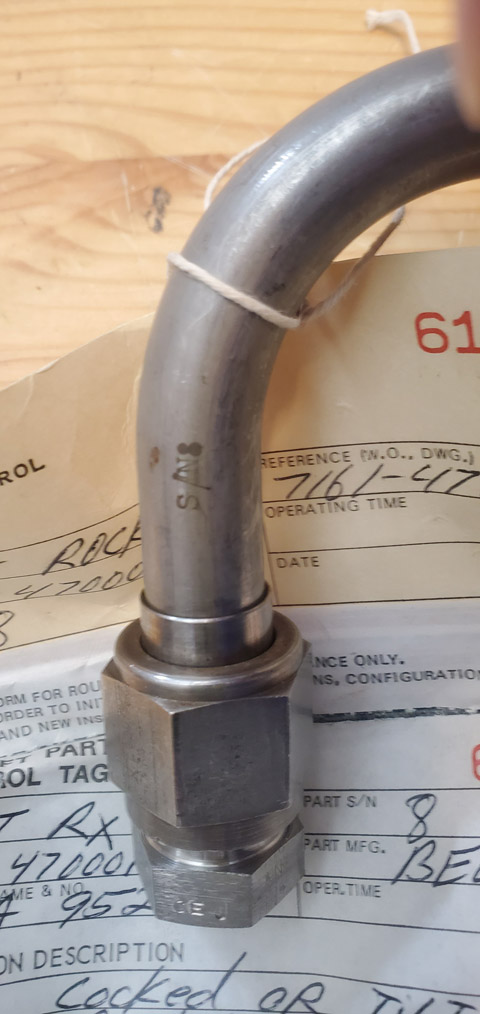

Lunar Lander Training Vehicle (LLTV) 500 pound lift rocket, a companion to the flown unit recently sold at RR Auction. Includes NASA Manned Space Center (MSC) Parts Control Tag documenting history of this engine (serial #8).

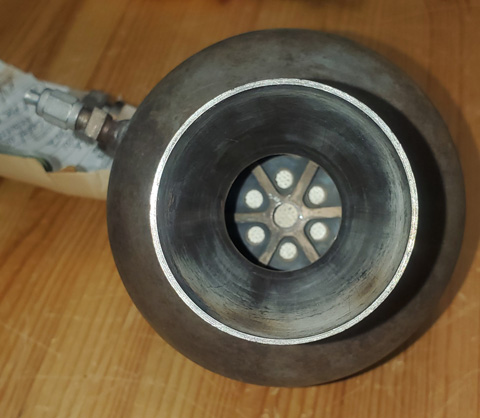

The engine was installed and subsequently removed from service due to a misaligned injector retainer from LLTV 952 (the only surviving LLTV of the original three produced).

The 500 pound lift rocket ("500 pounds" refers to the rated thrust output of the mono-propellant combustion chamber) were used onboard the LLRV and LLTV to replicate the performance of the Lunar Module in 1/6 lunar gravity (employed in conjunction with the single LLRV/LLTV gas turbine engine which had approximately a one to one vehicle to thrust ratio).

For those unfamiliar with the role of the LLRV and its LLTV successor, Neil Armstrong's presentation provides a good introduction. The 500 pound lift rockets, activated as part of the flight vehicles Lunar Simulation mode are observed firing at about the 2:20 mark.

Page 43 of NASAs LLRV monograph SP-2004-4535, "Unconventional, Contrary and Ugly: The Lunar Landing Research Vehicle," includes a discussion and diagram of both the 500 pound lift engine and its smaller companion attitude control engines used on these vehicles.

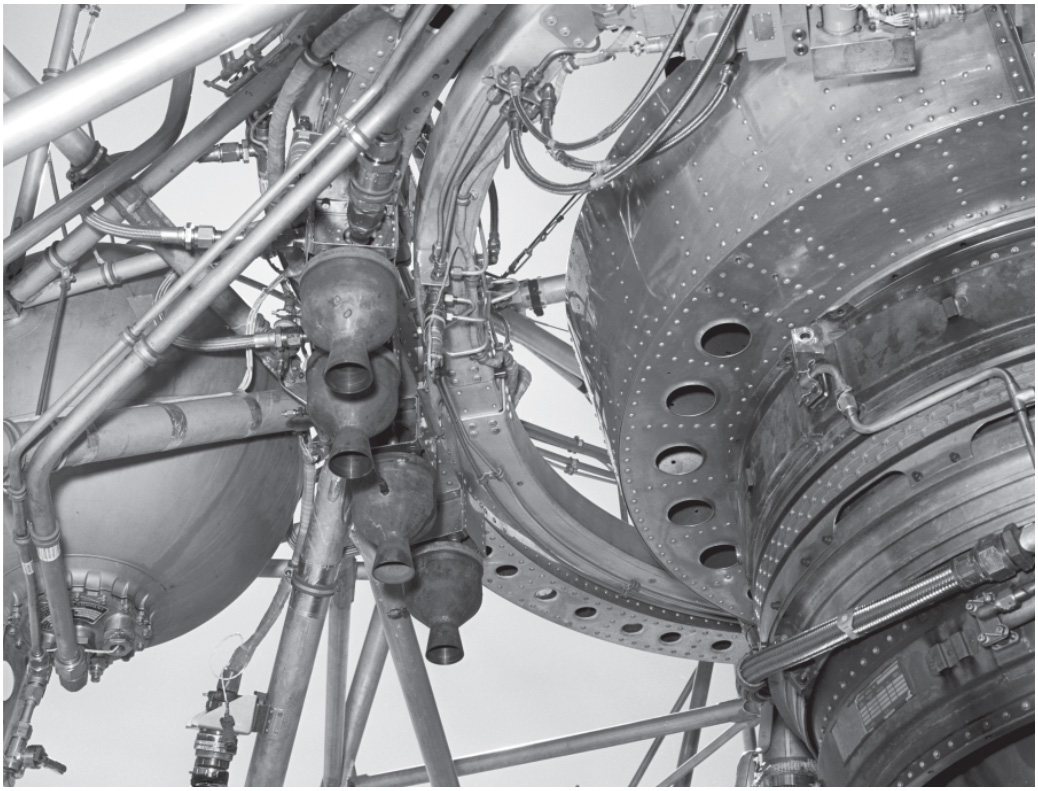

As mounted on the flight vehicle:

Chuckster01
Member

Posts: 995
From: Orlando, FL
Registered: Jan 2014

posted 07-25-2020 06:19 PM     Click Here to See the Profile for Chuckster01   Click Here to Email Chuckster01     Edit/Delete Message   Reply w/Quote
Scott, Ultra cool. You have the best collection. Checking with the wife on this one.

SpaceAholic
Member

Posts: 4633
From: Sierra Vista, Arizona
Registered: Nov 1999

posted 07-30-2020 09:11 AM     Click Here to See the Profile for SpaceAholic   Click Here to Email SpaceAholic     Edit/Delete Message   Reply w/Quote
Available at $2500.

Guswastheman
Member

Posts: 116
From: Gresham, OR
Registered: Apr 2011

posted 07-31-2020 07:10 PM     Click Here to See the Profile for Guswastheman   Click Here to Email Guswastheman     Edit/Delete Message   Reply w/Quote
Scott, eMail sent.

SpaceAholic
Member

Posts: 4633
From: Sierra Vista, Arizona
Registered: Nov 1999

posted 08-29-2020 02:21 PM     Click Here to See the Profile for SpaceAholic   Click Here to Email SpaceAholic     Edit/Delete Message   Reply w/Quote
Available at $2450.

SpaceAholic
Member

Posts: 4633
From: Sierra Vista, Arizona
Registered: Nov 1999

posted 09-03-2020 06:26 AM     Click Here to See the Profile for SpaceAholic   Click Here to Email SpaceAholic     Edit/Delete Message   Reply w/Quote
Available at $2375.

SpaceAholic
Member

Posts: 4633
From: Sierra Vista, Arizona
Registered: Nov 1999

posted 09-06-2020 09:29 AM     Click Here to See the Profile for SpaceAholic   Click Here to Email SpaceAholic     Edit/Delete Message   Reply w/Quote
Available at $2250.

Jurvetson
Member

Posts: 106
From: Los Altos an SF, CA, United States
Registered: Sep 2011

posted 09-10-2020 02:49 PM     Click Here to See the Profile for Jurvetson   Click Here to Email Jurvetson     Edit/Delete Message   Reply w/Quote
Thanks Scott. I will use it to levitate around the office.
