Author Topic:   FS: J-2 rocket engine injector
SpaceAholic
Member

Posts: 4452
From: Sierra Vista, Arizona
Registered: Nov 1999

posted 01-11-2020 05:10 PM     Click Here to See the Profile for SpaceAholic   Click Here to Email SpaceAholic     Edit/Delete Message   Reply w/Quote
**SOLD**

One of two injectors installed on the J-2 rocket engine, this unlike-triple design fed liquid oxygen and liquid hydrogen to the gas generator. Mounted on the J-2 fuel turbopump, the gas generator exhaust output drove the fuel and oxidizer turbopumps to feed propellant at the required pressure to the rocket engine's main combustion chamber.

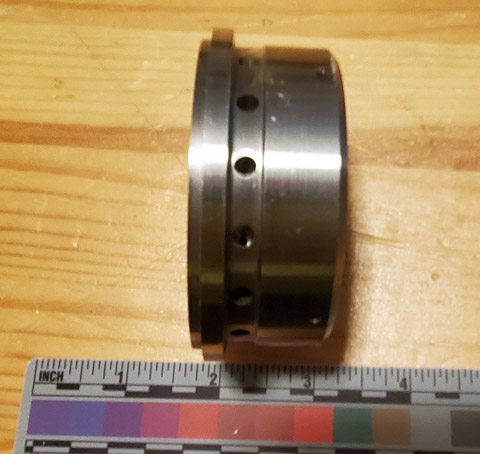

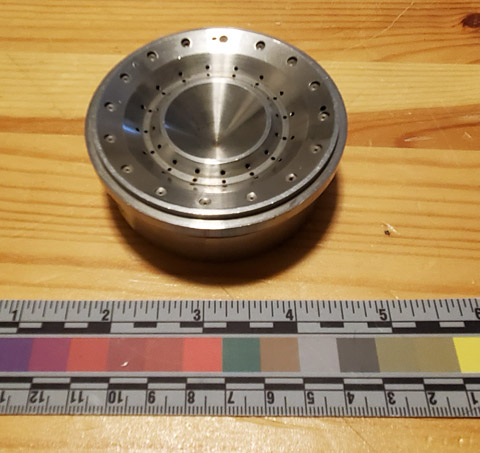

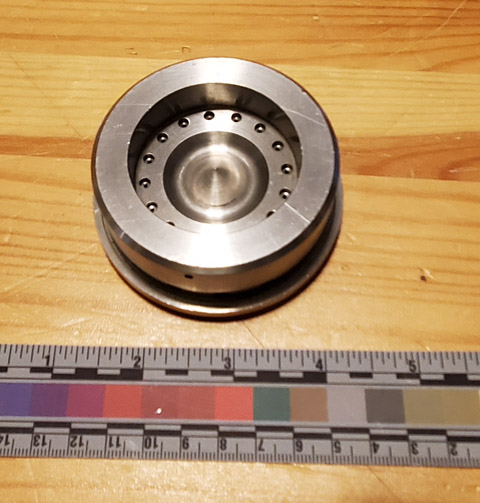

First image is the injector output (two spark igniters resulted in combustion on engine start). Second and third images are the inlet ports for the LOX and LH2.

Quite rare; $475 shipped within U.S.

colerise
New Member

Posts: 2
From: Asheville, NC, USA
Registered: Aug 2018

posted 01-13-2020 01:51 PM     Click Here to See the Profile for colerise   Click Here to Email colerise     Edit/Delete Message   Reply w/Quote
Email sent.
