Topic: Illumination functions of MOCR tellite buttons
|
Ponyhorton New Member Posts: 9 From: California Registered: Sep 2018
|
posted 11-15-2018 10:34 PM
Can anyone tell me how the lighting functions worked on the Apollo Mission Control panel push-buttons? On film, you see them lit, sometimes flashing, and sometimes off.Sometimes, someone will push a solidly-lit button and it flashes. Sometimes a button is flashing and gets pushed, and either goes solid lit, or dark, or keeps just flashing. Other times buttons are dark but operated anyway. I'm speaking specifically of the Master Specialties Co. Twist-Lite Mil Spec illuminated push buttons. These were the most common buttons on Apollo MOCR panels. Thanks! |
Andy Anderson Member Posts: 82 From: Perth, Australia Registered: Dec 2009
|
posted 11-16-2018 05:28 AM

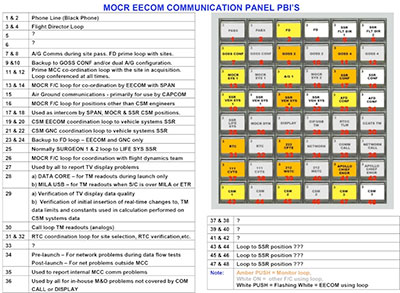

I assume these are the PBI's on the Comm panel that you are referring to and although I have not updated this incomplete image for the EECOM position for a while, it may assist you with your question; |
oly Member Posts: 905 From: Perth, Western Australia Registered: Apr 2015
|
posted 11-16-2018 09:00 AM
While I don't have time now to search myself, I believe this document may help. |
Jim Behling Member Posts: 1463 From: Cape Canaveral, FL Registered: Mar 2010
|
posted 11-16-2018 09:40 AM
quote: Originally posted by Ponyhorton: Sometimes a button is flashing and gets pushed, and either goes solid lit, or dark, or keeps just flashing.
Dark means the net is not monitored. Lit means it is being monitored. Flashing means it is the channel the operator is talking on. Winking (slower flashing) means active channel (the last two may be swapped). |
Ponyhorton New Member Posts: 9 From: California Registered: Sep 2018
|
posted 11-16-2018 03:56 PM
Much obliged!!!! Thanks! quote: Originally posted by Andy Anderson: ...this incomplete image for the EECOM position
OK, that's pretty awesome! THANK YOU so much! quote: Originally posted by oly: ...this document may help.
Great document, thanks!!!! |
