  collectSPACE: Messages
  Hardware & Flown Items
  Space shuttle solid rocket booster pilot chute

Post New Topic  Post A Reply
profile | register | preferences | faq | search

next newest topic | next oldest topic
Author Topic:   Space shuttle solid rocket booster pilot chute
GACspaceguy
Member

Posts: 1533
From: Guyton, GA
Registered: Jan 2006

posted 12-29-2011 09:41 AM     Click Here to See the Profile for GACspaceguy   Click Here to Email GACspaceguy     Edit/Delete Message   Reply w/Quote

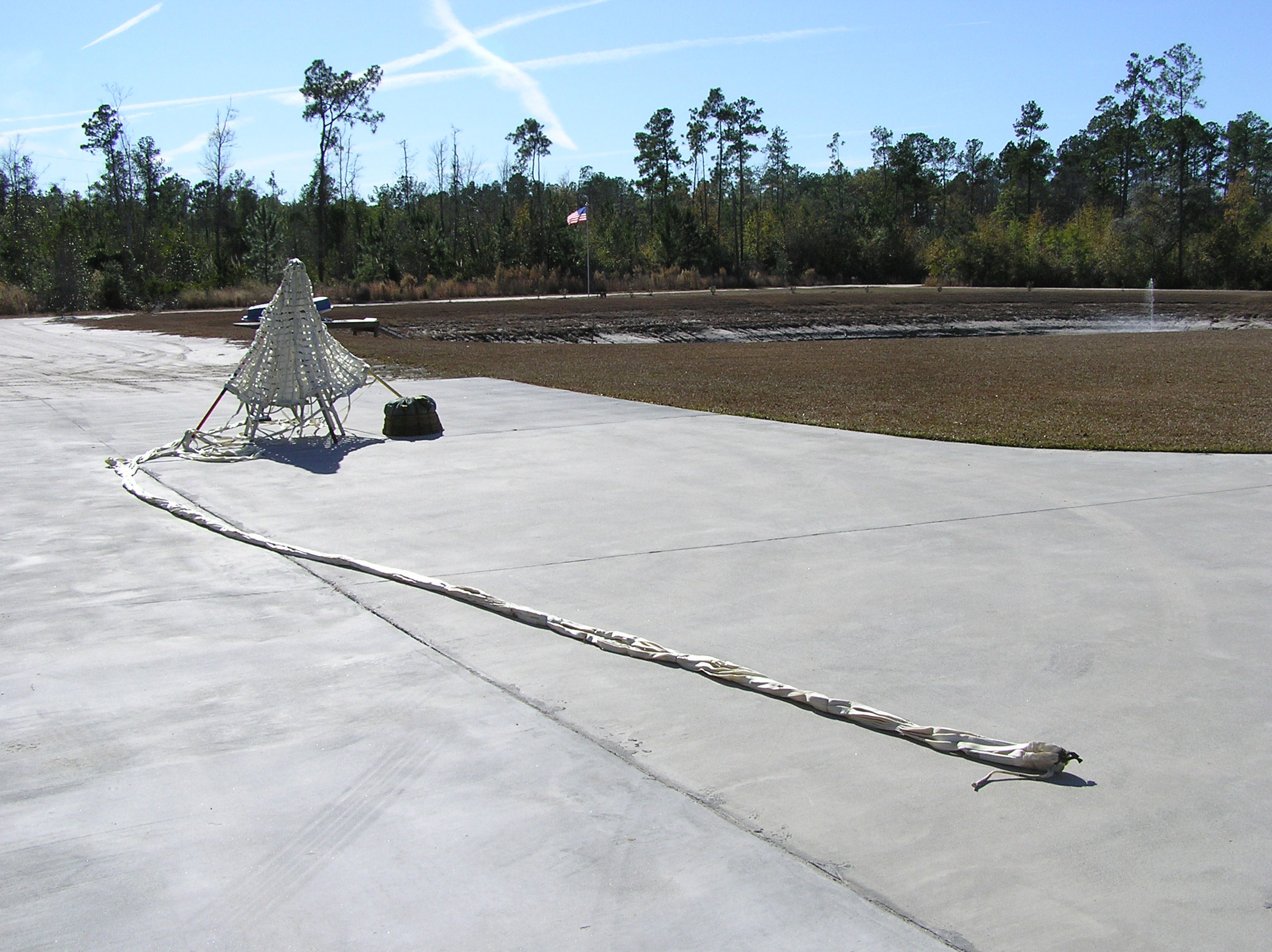

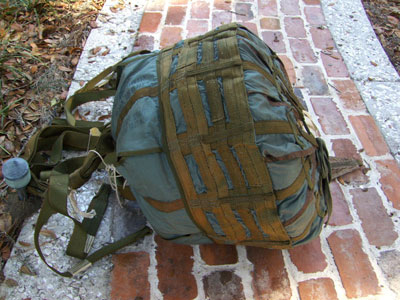

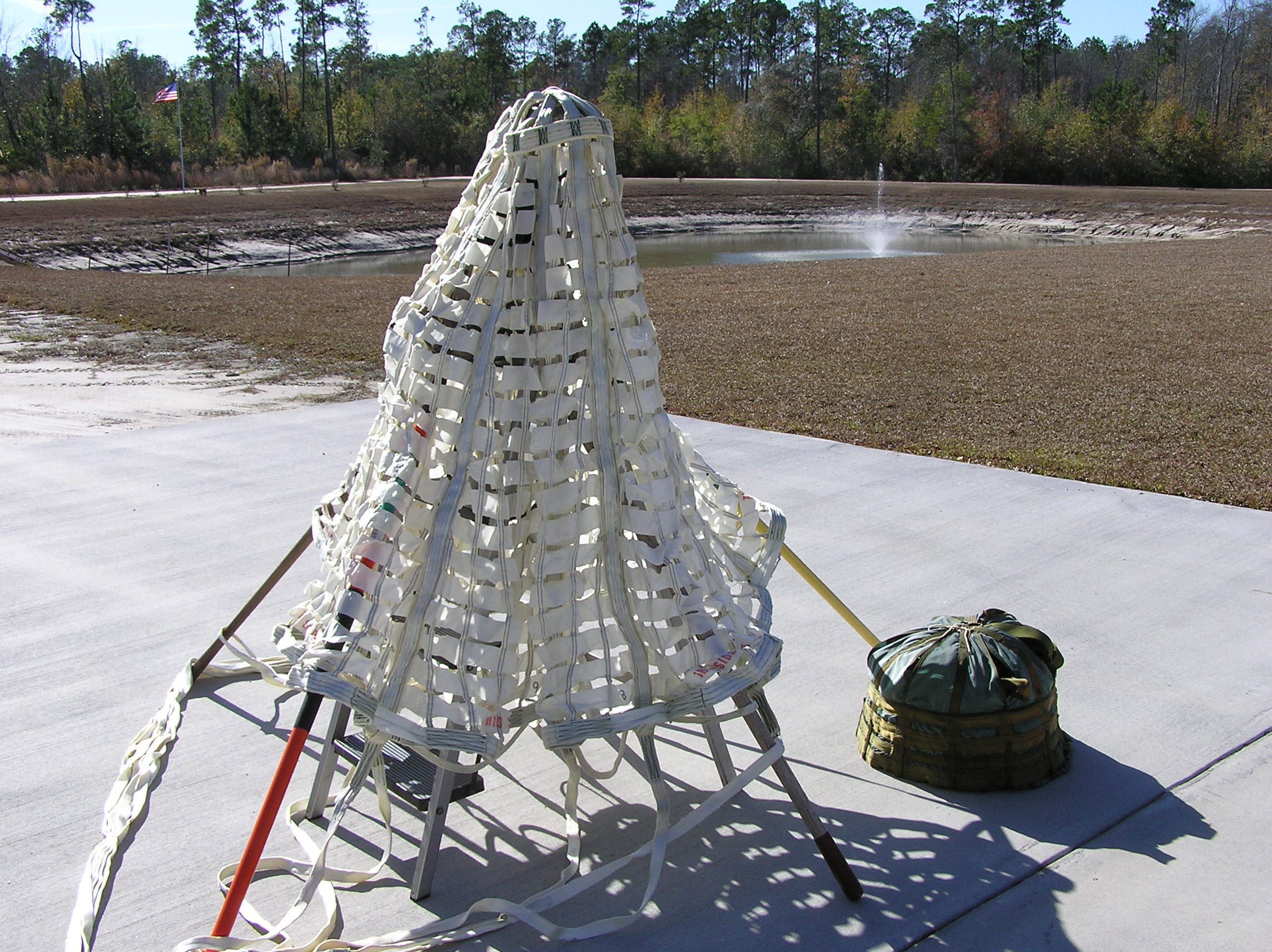

Picked up this item on eBay. It is a pilot chute for a space shuttle solid rocket booster (SRB). The chute itself is not that big just about 10 feet in diameter. The lanyards are bout 30 feet long and weigh a ton. Not sure how to display this thing though.

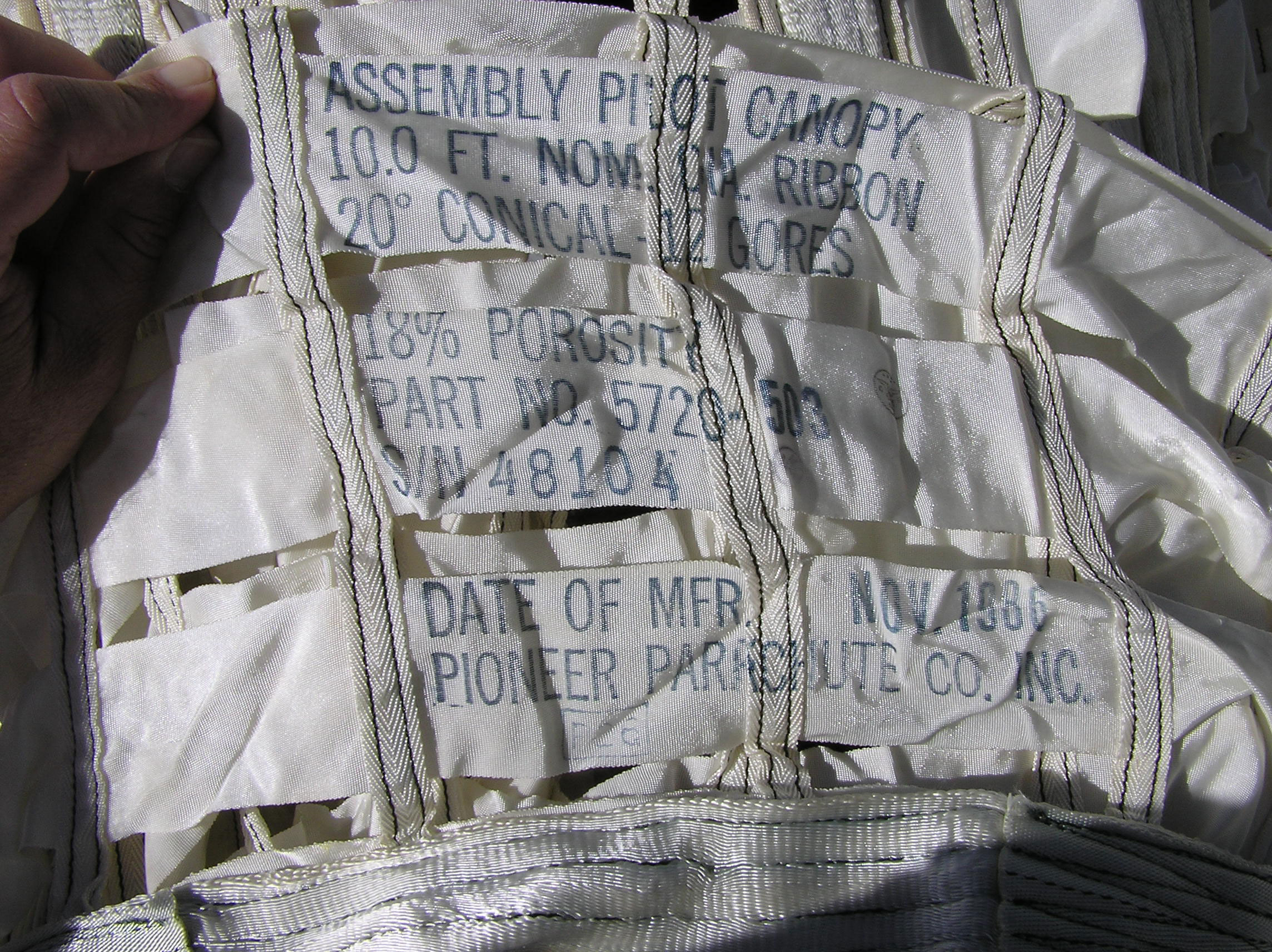

I sent an e-mail to Pioneer, the manufacturer, to get some history but have not received any reply. I am not sure if this was a prototype as the markings say that it is 10 feet in diameter and what I have found on the web says it should be 11.5 feet in diameter.

I thought I would share it with the cS community and get any thoughts on it's history and if it was flown and on what flights.

Ken Havekotte
Member

Posts: 1970
From: Merritt Island, Florida, Brevard
Registered: Mar 2001

posted 12-29-2011 11:43 AM     Click Here to See the Profile for Ken Havekotte   Click Here to Email Ken Havekotte     Edit/Delete Message   Reply w/Quote
This may be one of several SRB pilot packaged chutes that I got from Ransom Road back in the early 90s. I believe all of mine were manufactured in 1985-87.

Until I saw this cS posting of yours, I had completely forgotten about mine that are currently in storage away from my home-office.

It was my impression when I got the chute assemblies that they were not used on any SRB flown missions.

But it certainly can't hurt to see what Pioneer Parachute Company says about them if they do indeed respond back to you.

Please do report back here if anything develops.

GACspaceguy
Member

Posts: 1533
From: Guyton, GA
Registered: Jan 2006

posted 12-29-2011 12:32 PM     Click Here to See the Profile for GACspaceguy   Click Here to Email GACspaceguy     Edit/Delete Message   Reply w/Quote
Ken that may makes sense as the person I picked this up from obtained it from a surplus shop in Orlando. They were living on a sail boat in Titusville back in the 90’s and had intended to use the parachute for something on their boat. They never did and carried it from place to place for 20 years until selling it to me on eBay.

Joel Katzowitz
Member

Posts: 389
From: Marietta GA USA
Registered: Dec 1999

posted 12-31-2011 08:24 AM     Click Here to See the Profile for Joel Katzowitz   Click Here to Email Joel Katzowitz     Edit/Delete Message   Reply w/Quote
I had access to a similar parachute as yours Fred. Same part number and manufacture date but with s/n 48110.

Constellation One
Member

Posts: 74
From: Lorain, Ohio, USA
Registered: Aug 2008

posted 12-31-2011 08:51 PM     Click Here to See the Profile for Constellation One   Click Here to Email Constellation One     Edit/Delete Message   Reply w/Quote
Glad it went to a good home. I was bidding against you!

Maybe if another one comes for sale, I'll be able to get it.

Ken Havekotte
Member

Posts: 1970
From: Merritt Island, Florida, Brevard
Registered: Mar 2001

posted 12-31-2011 10:04 PM     Click Here to See the Profile for Ken Havekotte   Click Here to Email Ken Havekotte     Edit/Delete Message   Reply w/Quote
For Constellation One; email me as I do have some SRB pilot parachutes in stock.
They're quite heavy, though, to ship.

Frisbeeman
New Member

Posts:
From:
Registered:

posted 01-04-2012 07:41 PM     Click Here to See the Profile for Frisbeeman   Click Here to Email Frisbeeman     Edit/Delete Message   Reply w/Quote
That 10 ft. 18% porosity pilot chute in the picture was for Filament Wound Case SRBs to be launched from Vandenberg in California. No Vandenberg shuttle launches ever occurred, so that parachute never flew on a mission. It may have been a drop test chute or a prototype. If it is dirty with brown dust it was drop tested in the desert.

The KSC shuttle missions used an 11.5 ft. diameter 16% porosity pilot. If you have documentation saying your parachute is 11.5 ft. they were mistaken about what specific kind of parachute it was.

Keep in mind the diameter is nominal (complicated definition), not actual constructed. The constructed diameter is slightly smaller.

I worked for Pioneer Parachute in the 1980's, for USBI in the 1990's and for United Space Alliance since 1999 and worked purely Shuttle SRB and aerospace parachutes since 1988.

GACspaceguy
Member

Posts: 1533
From: Guyton, GA
Registered: Jan 2006

posted 01-05-2012 05:14 AM     Click Here to See the Profile for GACspaceguy   Click Here to Email GACspaceguy     Edit/Delete Message   Reply w/Quote
Welcome to cS and thanks for the info! I thought it was unusual that the listed diameter was 10 ft., this answers a lot of questions. It is still a cool item but now with a different twist. Thanks so much again!

Hart Sastrowardoyo
Member

Posts: 2404
From: Toms River, NJ,USA
Registered: Aug 2000

posted 01-05-2012 09:36 AM     Click Here to See the Profile for Hart Sastrowardoyo   Click Here to Email Hart Sastrowardoyo     Edit/Delete Message   Reply w/Quote
Now you got something to get signed by the 62A crew...

Brian Weaver
New Member

Posts:
From:
Registered:

posted 01-07-2012 07:38 PM     Click Here to See the Profile for Brian Weaver   Click Here to Email Brian Weaver     Edit/Delete Message   Reply w/Quote
I have a pilot SRB chute that has been in my collection for 15+ years.

Yellow tag: S/N 44983
Part #5700-511
MMC S/N 0972
Mfgr. date Nov. 24 1986
Rigger signed Edwin White
QC Sign P43
M3161
Part #5700-511

Printed on chute:
S/NSS 48769
PN 5710-501 P43

Flown? Any inforomation would be appreciated

GACspaceguy
Member

Posts: 1533
From: Guyton, GA
Registered: Jan 2006

posted 08-19-2012 06:43 PM     Click Here to See the Profile for GACspaceguy   Click Here to Email GACspaceguy     Edit/Delete Message   Reply w/Quote
We finally found a place for our Solid Rocket Booster (SRB) Pilot Chute. If I understand it correctly it is the chute that pulls out the drogue chute that pulls out the main chute (the shuttle system was an amazing flying machine regardless of what you may think of the program's worth to society).

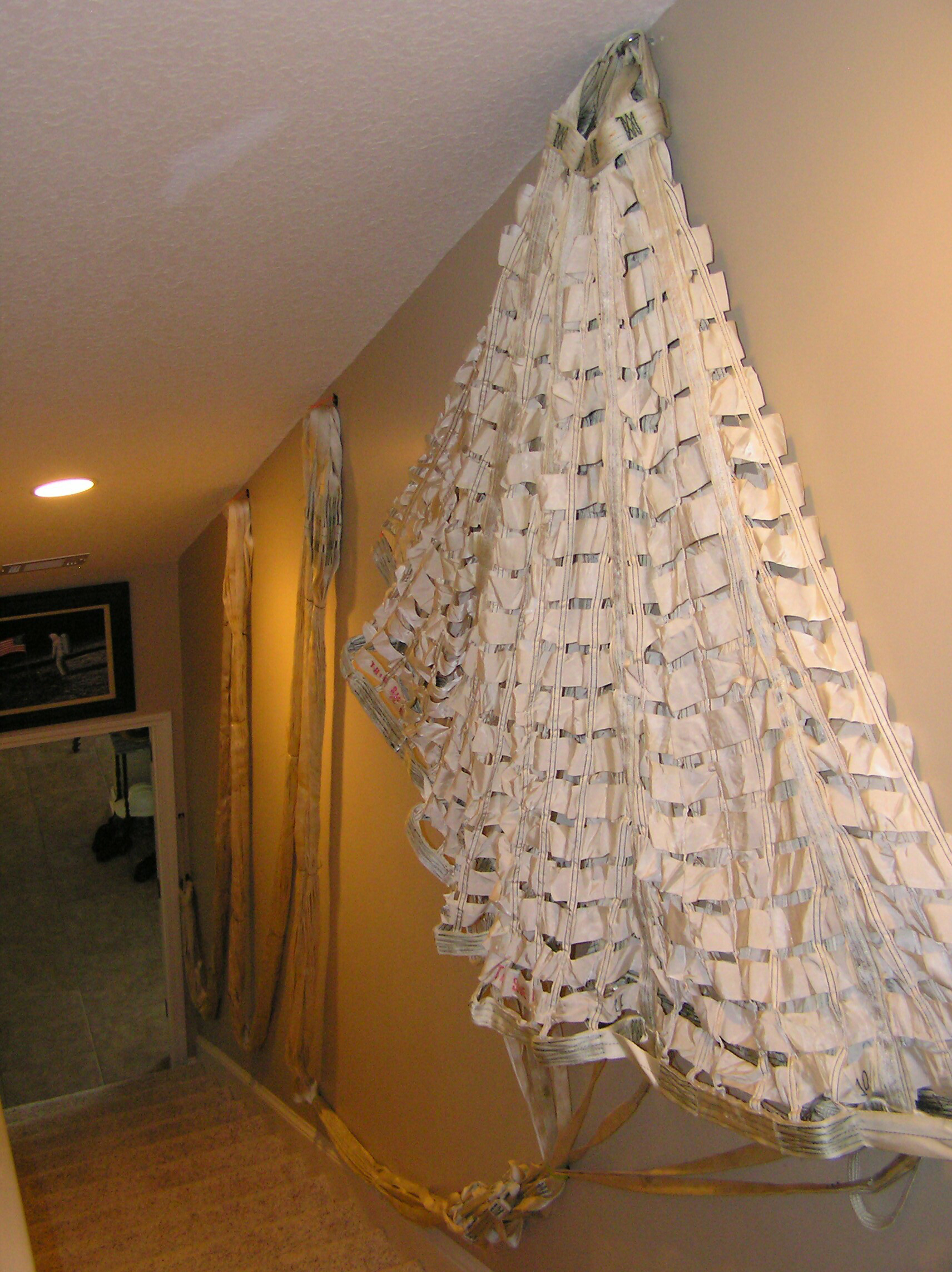

The chute itself was not bad for finding a place, but there is about 40 feet or more of suspension lines and that had been the problem. At one point we thought we would put the chute on the wall and cut a hole in the ceiling and hide the lines in the attic. However, we felt that we would not be doing the item justice. We finally figured out that the best place would be the stairwell leading up the the bonus room.

We snaked the lines up the wall and the plan is to find photos of either the pilot chute deploying or at least the SRBs tumbling back or under the chutes (any help here would be great) and place those framed images between the spaces for the lines. It is somewhat difficult to capture the effect of the chute going up the stairwell wall but here it is.

Ken Havekotte
Member

Posts: 1970
From: Merritt Island, Florida, Brevard
Registered: Mar 2001

posted 08-19-2012 07:40 PM     Click Here to See the Profile for Ken Havekotte   Click Here to Email Ken Havekotte     Edit/Delete Message   Reply w/Quote
Yes, I like your display for the chute... now if my wife would let me display one of my SRB-pilot chutes in one of our hallways as you have so nicely done, I'll be in space heaven, huh? Perhaps one of mine could be installed on the ceiling of my space studio(?) Thanks for the idea(s) Fred!

SkyMan1958
Member

Posts: 437
From: CA.
Registered: Jan 2011

posted 08-19-2012 07:45 PM     Click Here to See the Profile for SkyMan1958   Click Here to Email SkyMan1958     Edit/Delete Message   Reply w/Quote
You're a lucky man Fred to have such an understanding wife!

SpaceAholic
Member

Posts: 3174
From: Sierra Vista, Arizona
Registered: Nov 1999

posted 08-19-2012 07:48 PM     Click Here to See the Profile for SpaceAholic   Click Here to Email SpaceAholic     Edit/Delete Message   Reply w/Quote
Much nicer then leaving packed. Now imagine attempting to do that with an 83.5 foot diameter Apollo CM parachute canopy. :-\

Robert Pearlman
Editor

Posts: 29337
From: Houston, TX
Registered: Nov 1999

posted 08-19-2012 07:55 PM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
You're gonna need a bigger boat banister...

ilbasso
Member

Posts: 1501
From: Greensboro, NC USA
Registered: Feb 2006

posted 08-19-2012 08:57 PM     Click Here to See the Profile for ilbasso   Click Here to Email ilbasso     Edit/Delete Message   Reply w/Quote
Way to go, Fred! I'm gonna have to bring my wife by your place on our way to or from the AAMS in November!

GACspaceguy
Member

Posts: 1533
From: Guyton, GA
Registered: Jan 2006

posted 08-20-2012 04:54 AM     Click Here to See the Profile for GACspaceguy   Click Here to Email GACspaceguy     Edit/Delete Message   Reply w/Quote
Please do, we are an open house!

GACspaceguy
Member

Posts: 1533
From: Guyton, GA
Registered: Jan 2006

posted 08-31-2012 08:10 AM     Click Here to See the Profile for GACspaceguy   Click Here to Email GACspaceguy     Edit/Delete Message   Reply w/Quote

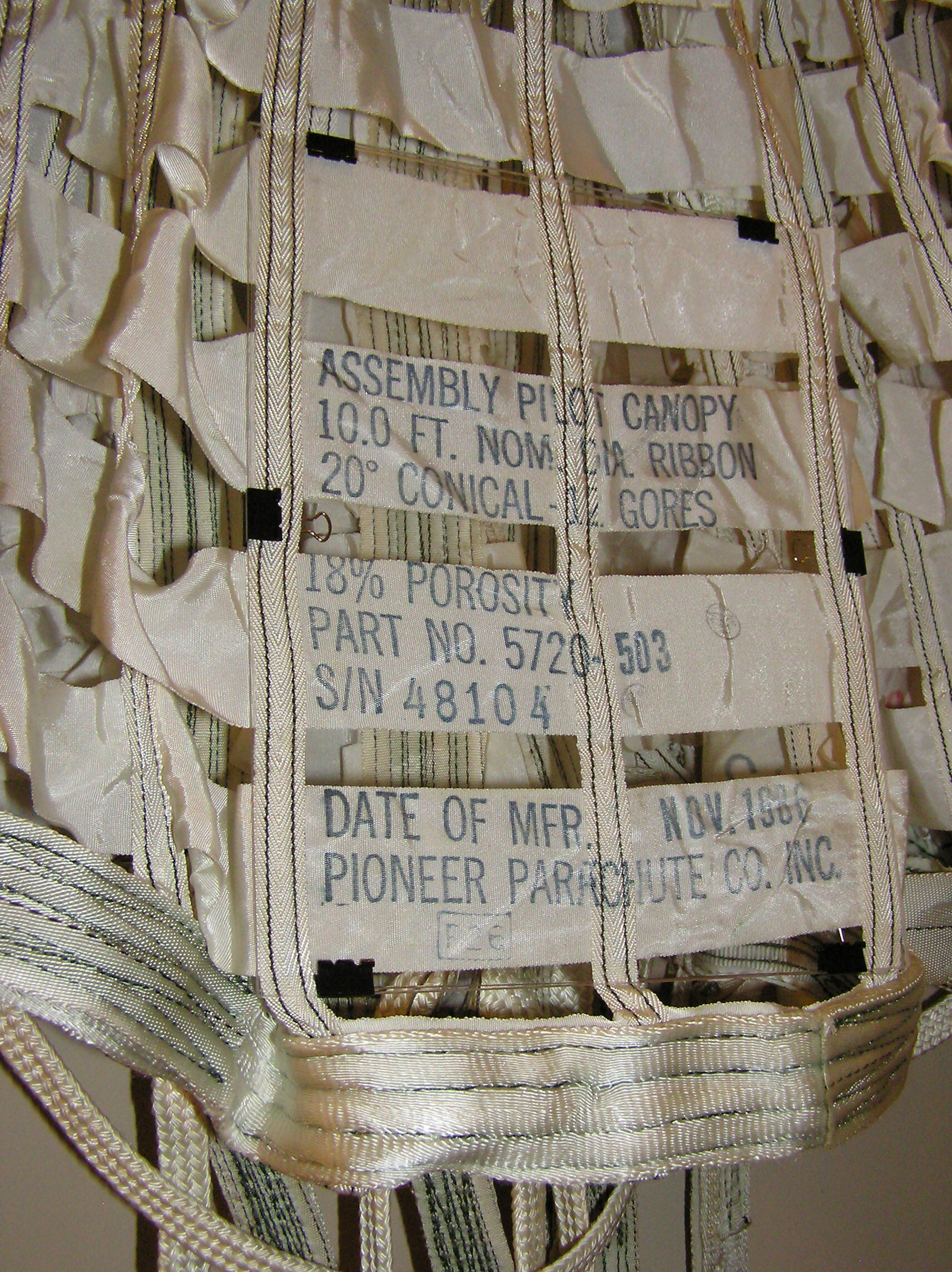

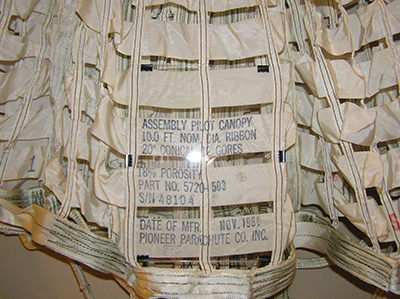

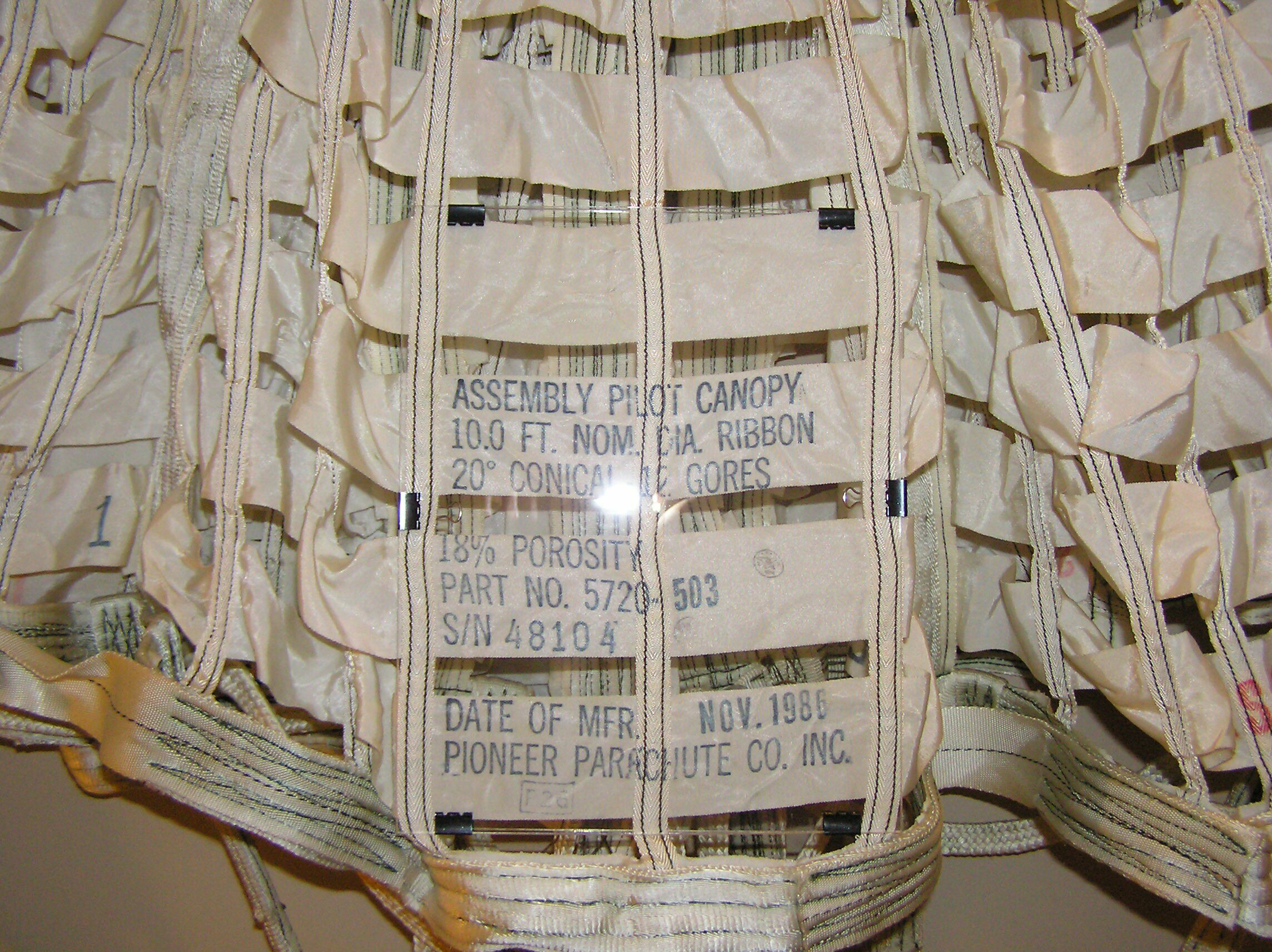

I wanted to make sure that the chute data was visible but it would tend to curl away on the ends. What I ended up doing is sandwiching it between two acrylic sheets and clipping it together with note clips to keep them together.

So for anyone that may do a similar display take a look at the photos. I purposely allowed the flash to reflect in the second one so that you can see the sheets better.
