Author Topic:   Tribute: Illuminated Lunar Contact Light
LCDR Scott Schneeweis
New Member

Posts:
From:
Registered:

posted 07-20-2009 12:51 AM     Click Here to See the Profile for LCDR Scott Schneeweis   Click Here to Email LCDR Scott Schneeweis     Edit/Delete Message   Reply w/Quote

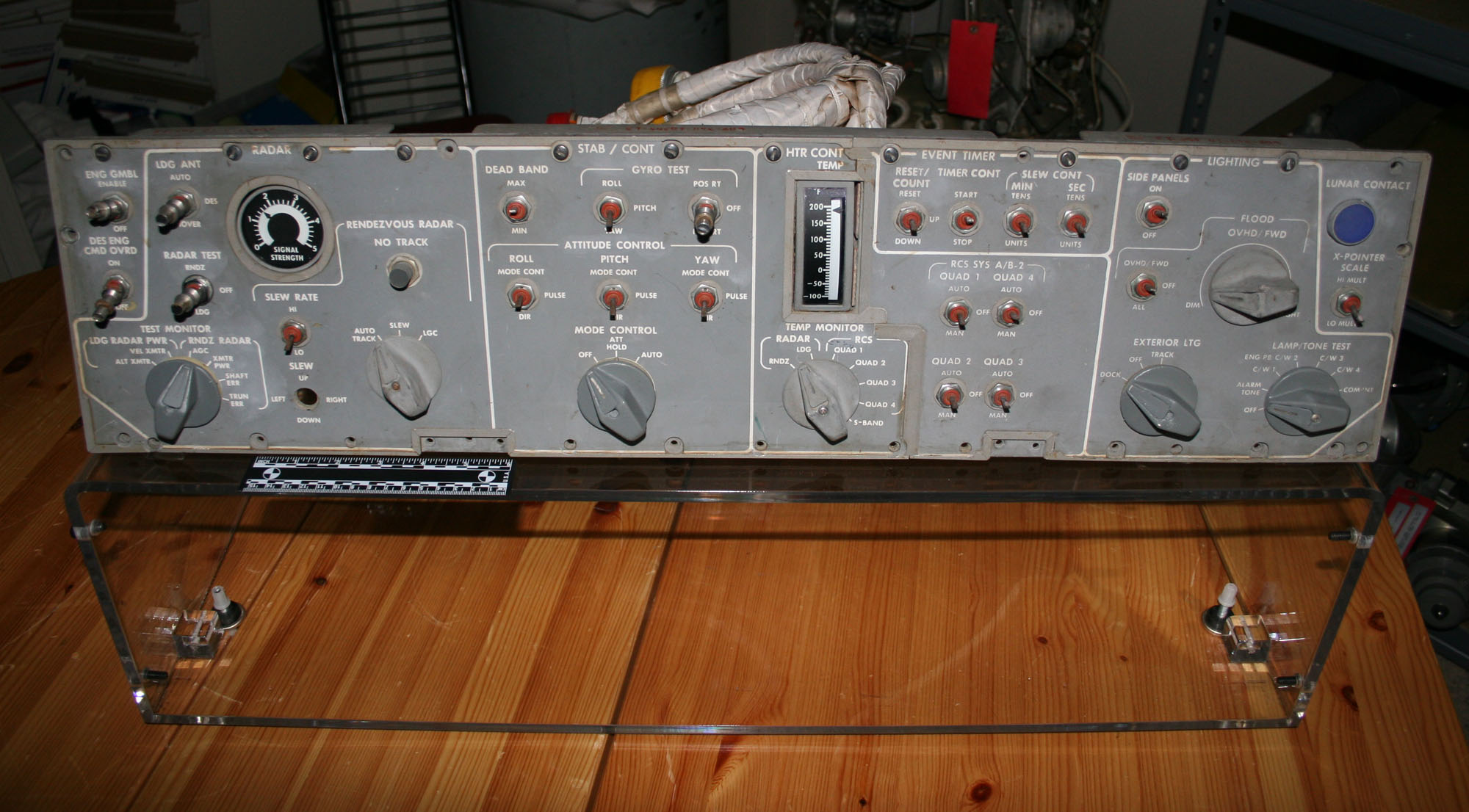

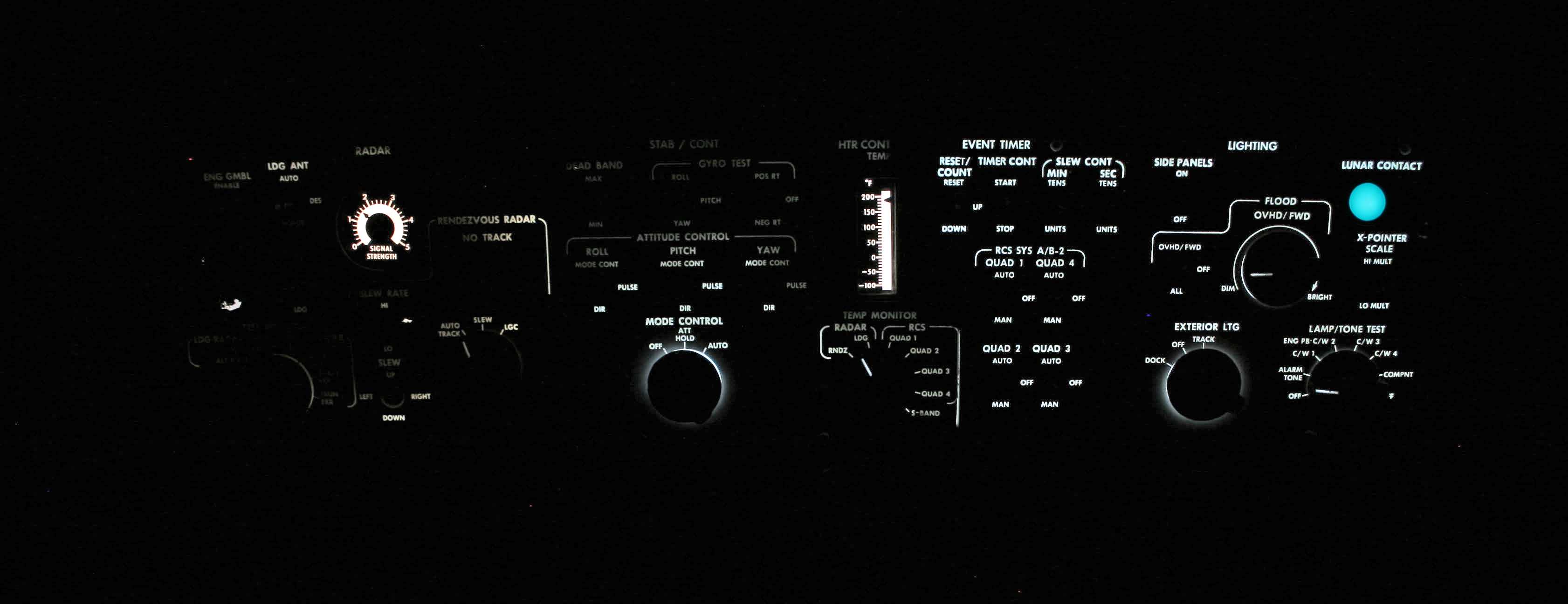

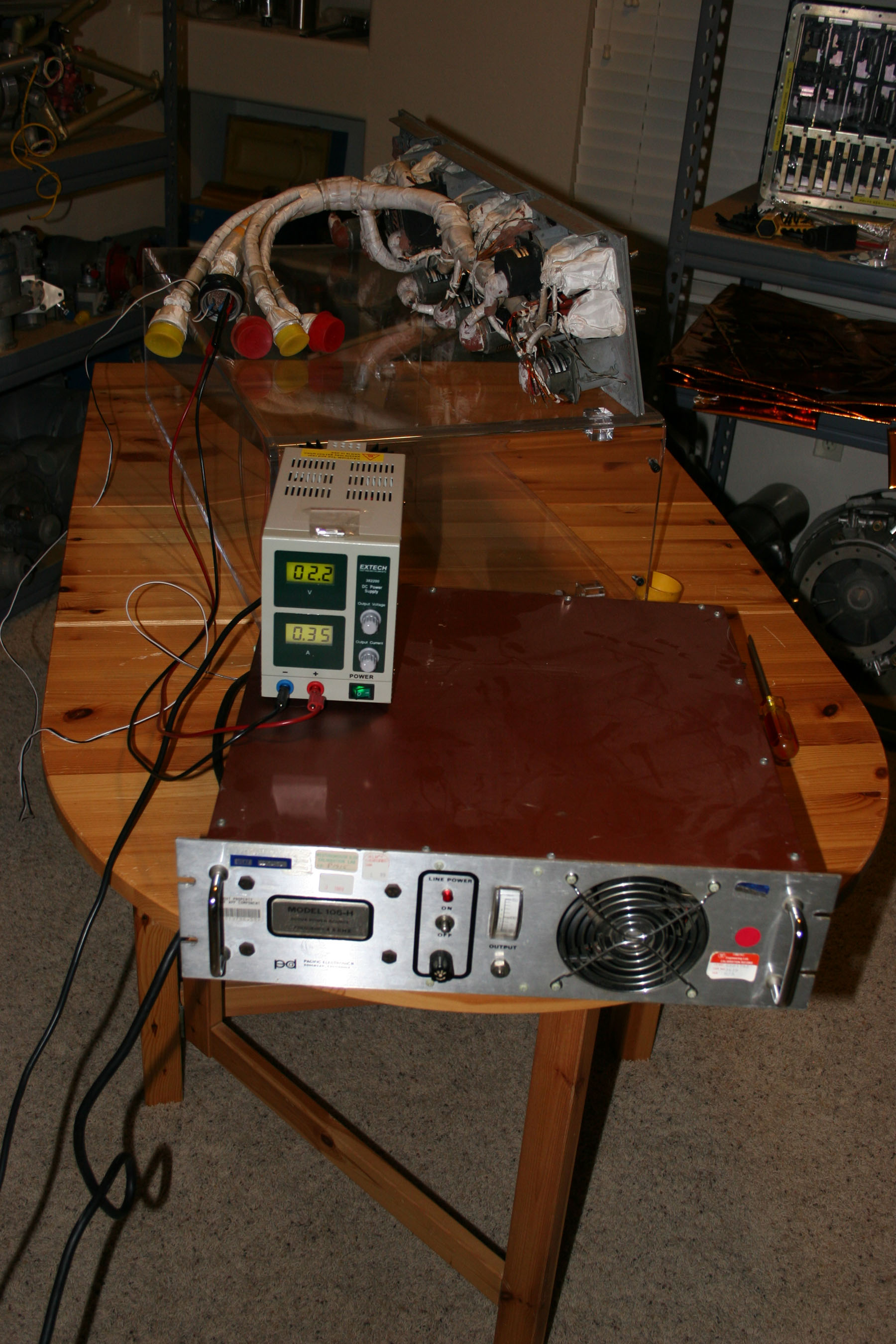

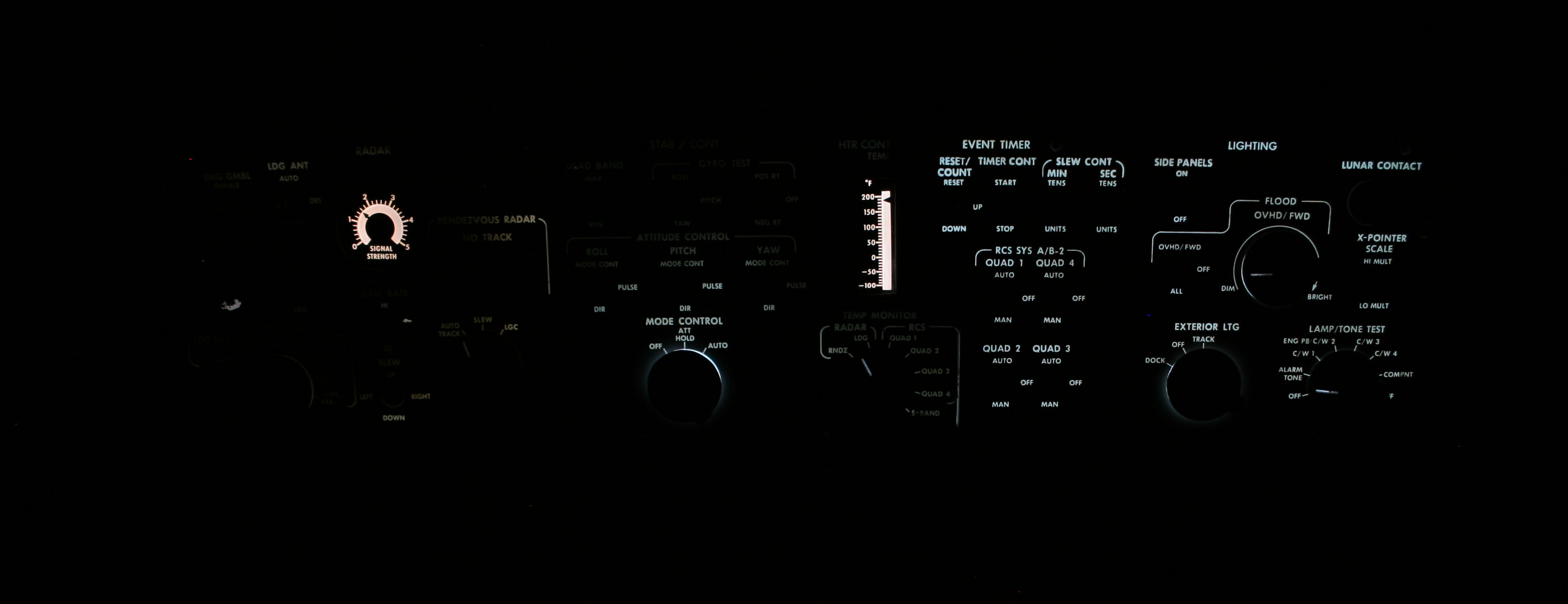

A number of years ago I had previously energized the electroluminescent lighting and meters on one of Lunar Module panels (#3) in the collection but had not established the specific pinouts to enable the panel's Lunar Contact light. With the 40th anniversary of Apollo 11, there was sufficient incentive to work through the technical issues to trigger illumination of the Contact Light. Images below show (perhaps for the first time since Apollo 17) the light illuminated (in combination with the rest of the panel). Unfortunately the contact light is so bright (relative to the EL panel lighting) it overdrove the camera chip and (for this amateur photographer) made for a very challenging shot. Second image provided with the contact light extinguished and the 3rd photograph is the rig kluged together to replicate the necessary power for the "event" (In the case of the Lunar Contact light, DC power is being inputted to pins which would have received voltage from the Lunar Surface Sensor Probes mounted on 3 of the 4 LM legs).

Please click on each image for higher resolution photographs:

------------------
Scott Schneeweis
http://www.SPACEAHOLIC.com/

freshspot
Member

Posts: 301
From: Lexington, MA, USA
Registered: Dec 2005

posted 07-20-2009 03:49 AM     Click Here to See the Profile for freshspot   Click Here to Email freshspot     Edit/Delete Message   Reply w/Quote
A fitting tribute, Scott. Thank you for sharing.

Robert Pearlman
Editor

Posts: 30714
From: Houston, TX
Registered: Nov 1999

posted 07-20-2009 04:34 AM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote
Very neat Scott! Now I want a Contact Light night light...

space1
Member

Posts: 593
From: Danville, Ohio, USA
Registered: Dec 2002

posted 07-20-2009 05:39 AM     Click Here to See the Profile for space1   Click Here to Email space1     Edit/Delete Message   Reply w/Quote
Thanks for your inspired efforts.

OK, now we all want to see it ourselves and pretend we're on the moon. We'll all meet at your place tonight. You've got enough beer, right?

------------------
John Fongheiser
President
Historic Space Systems, http://www.space1.com

LCDR Scott Schneeweis
New Member

Posts:
From:
Registered:

posted 07-20-2009 07:37 AM     Click Here to See the Profile for LCDR Scott Schneeweis   Click Here to Email LCDR Scott Schneeweis     Edit/Delete Message   Reply w/Quote
Gary Milgrom just post processed the image... the contrast enhanced photo has been reposted above (may require browser cache refresh to see it)... much better. Thanks Gary!

andrewcli
Member

Posts: 328
From: La Jolla, CA, USA
Registered: Jul 2007

posted 07-20-2009 10:51 AM     Click Here to See the Profile for andrewcli   Click Here to Email andrewcli     Edit/Delete Message   Reply w/Quote
Very nice Scott! You should make a quicktime movie with audio.

davidcwagner
Member

Posts: 554
From: Albuquerque, New Mexico
Registered: Jan 2003

posted 07-20-2009 08:29 PM     Click Here to See the Profile for davidcwagner   Click Here to Email davidcwagner     Edit/Delete Message   Reply w/Quote
Wonderful job Scott.

E2M Lem Man
Member

Posts: 832
From: Los Angeles CA. USA
Registered: Jan 2005

posted 07-20-2009 08:40 PM     Click Here to See the Profile for E2M Lem Man   Click Here to Email E2M Lem Man     Edit/Delete Message   Reply w/Quote
I have seen some spacecraft artifacts - but that's special - Thanks, Scott!

MadSci
Member

Posts: 191
From: Maryland, USA
Registered: Oct 2008

posted 07-22-2009 11:44 PM     Click Here to See the Profile for MadSci     Edit/Delete Message   Reply w/Quote
Scott - that's probably the neatest tribute anyone has done this year! I hope someone lurking here shows your photos to Buzz and Neil - who must have seen this in their minds a thousand time since 1969 and would love to see it again!

PS: I agree, when does the Limited Edition 120VAC nite lite come out? I, err, my son, would love one in his, err, my room.

skye12
Member

Posts: 45
From: Austin, TX, USA
Registered: Feb 2001

posted 08-01-2009 09:50 AM     Click Here to See the Profile for skye12   Click Here to Email skye12     Edit/Delete Message   Reply w/Quote
That is really something. Very original.
